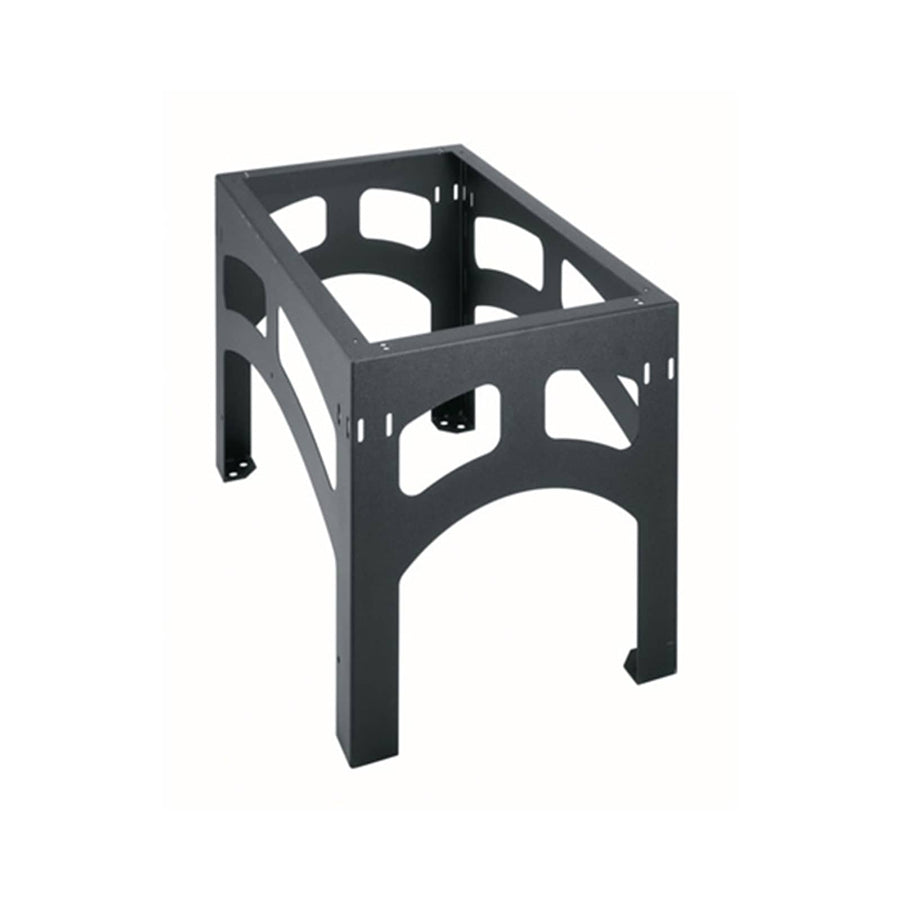

1 Bay Seismic Riser Base for 42 Inch Deep WMRK Racks
Seismic riser base for 42 inch deep WMRK racks, 1000 lbs capacity, and 1-bay configuration
The SRB-1-WMRK-4224 is a single-bay seismic riser base designed specifically for use with 42 inch (106.7 cm) deep WMRK series racks. Built from heavy-gauge welded steel with a textured black powder coat finish, this base provides a stable foundation for seismic-rated installations. It is engineered to allow for field rough-in work to be completed before the actual racks and enclosures arrive on site. Additionally, the base serves as a lower cable chase, providing a dedicated pathway for passing cables between racks. This unit is TAA compliant and carries OSHPD 96-01027 and ASCE 7-10 certification. It supports a seismic load capacity and weight capacity of 1000 lbs (453.6 kg). With a height of 24 in (61 cm) and a width of 23.94 in (60.8 cm), it is a critical component for integrating seismic-rated enclosures into high-density rack systems.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 42 in (106.7 cm) |
| Height | 24 in (61 cm) |
| Weight Capacity | 1000 lbs (453.6 kg) |
| Width | 23.94 in (60.8 cm) |
| Base Series | WMRK |
| Component Type | Riser Base |
| Finish | Textured Black Powder Coat |
| Number of Bays | 1 |
All other specifications 5
| Seismic Rated | Yes |
| UPC | 656747181191 |
| ASCE Number | 7-10 |
| OSHPD Number | 96-01027 |
| Seismic Load Capacity | 1000 lbs (453.6 kg) |
Resources
Questions about this part
Will this riser base fit my existing WMRK rack?
The SRB-1-WMRK-4224 is designed specifically for 42 inch (106.7 cm) deep WMRK series racks. It is a 1-bay base intended to match that specific depth and series.
What is the load capacity of the SRB-1-WMRK-4224?
This riser base has a weight capacity and seismic load capacity of 1000 lbs (453.6 kg).
What is the purpose of the riser base in a seismic installation?
It allows installers to perform field rough-in work before racks arrive and acts as a lower cable chase for managing cables between racks.
What certifications does this base hold for seismic compliance?
This model is OSHPD 96-01027 certified and meets ASCE 7-10 standards for seismic performance.
Is this product TAA compliant?
Yes, the SRB-1-WMRK-4224 is TAA compliant.
