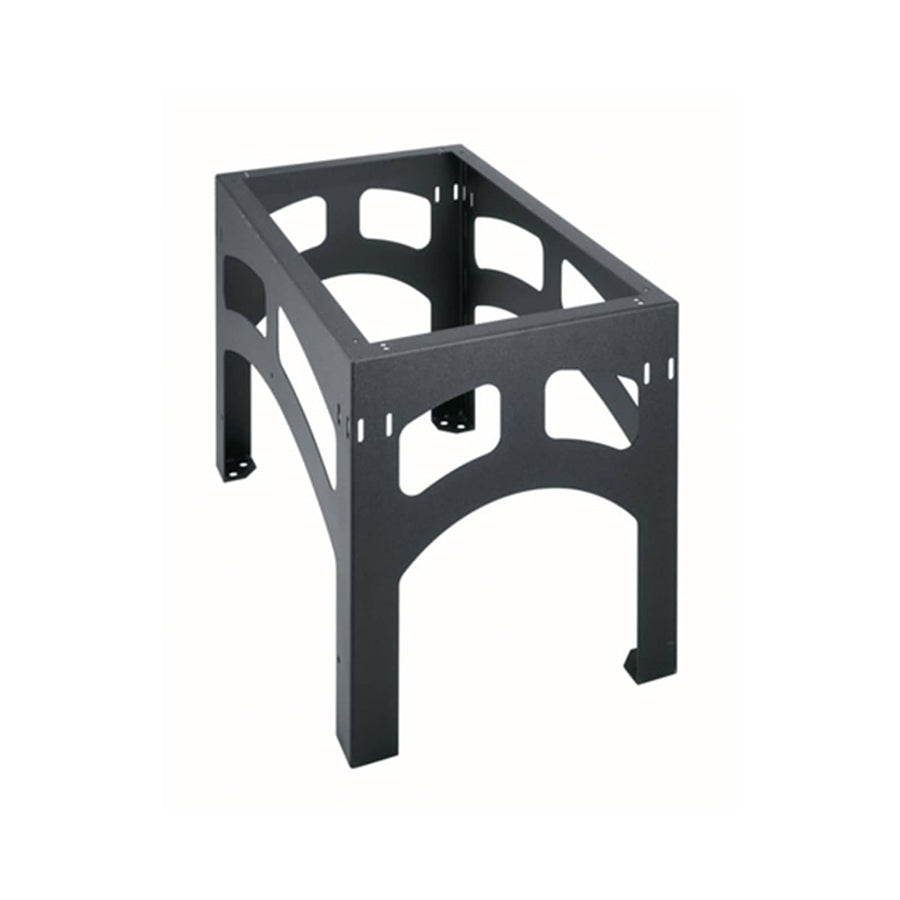

1 Bay Seismic Riser Base for 38 Inch Deep BGR Racks
Seismic riser base for 1-bay 38 in (96.5 cm) deep BGR racks, 1000 lbs capacity, OSHPD 96-01027 certified
The SRB-1-BGR-3824 is a seismic riser base designed specifically for use with 1-bay BGR series racks. Standing 24 in (61 cm) tall, this component allows installers to perform field rough-in work before the arrival of the final racks and enclosures. It provides a heavy-gauge welded steel construction finished in a textured black powder coat. Beyond its structural role, the base functions as a lower cable chase, facilitating the passage of cables between racks. This riser base supports a seismic load capacity of 1000 lbs (453.6 kg) and is TAA compliant. It is engineered for high-performance environments requiring compliance with ASCE 7-10 standards and holds OSHPD certification number 96-01027.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 38 in (96.5 cm) |
| Height | 24 in (61 cm) |
| Weight Capacity | 1000 lbs (453.6 kg) |
| Width | 23 in (58.4 cm) |
| Base Series | BGR |
| Component Type | Riser Base |
| Finish | Textured Black Powder Coat |
| Number of Bays | 1 |
All other specifications 5
| Seismic Rated | Yes |
| UPC | 656747139864 |
| ASCE Number | 7-10 |
| OSHPD Number | 96-01027 |
| Seismic Load Capacity | 1000 lbs (453.6 kg) |
Resources
Questions about this part
Will the SRB-1-BGR-3824 fit my BGR rack?
This riser base is designed specifically for 1-bay BGR series racks that have a depth of 38 in (96.5 cm).
What is the seismic load capacity for this riser base?
The SRB-1-BGR-3824 has a seismic load capacity of 1000 lbs (453.6 kg) as required for seismic-rated installations.
Is this product OSHPD certified?
Yes, this seismic riser base is OSHPD certified under number 96-01027 and meets ASCE 7-10 standards.
How does this riser base help with installation?
It allows for field rough-in work before racks arrive and serves as a cable chase for passing lines between racks.
Which technical drawings are available for submittals?
CAD technical specification drawings are available in .dwg format, along with A&E specification sheets for submittals.
