1 Bay Seismic Riser Base for 36 Inch Deep DRK Racks
Seismic rated 1-bay riser base for 36 inch deep DRK racks, 1000 lbs capacity, OSHPD 96-01027 compliant

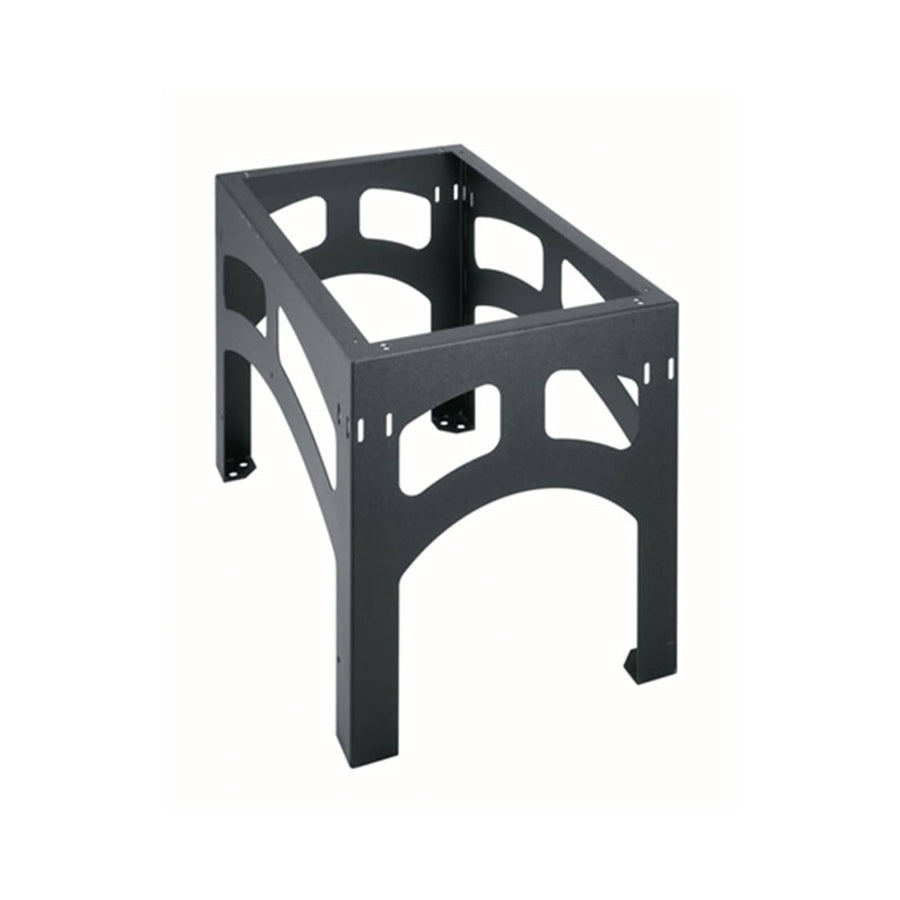

The Middle Atlantic SRB-1-DRK-3624 is a seismic rated riser base designed specifically for use with the 36 inch (91.4 cm) deep DRK series racks. Constructed from heavy-gauge welded steel with a textured black powder coat finish, this component provides a stable foundation for 1-bay rack configurations. This riser base is engineered to allow for field rough-in of structural elements before the final racks and enclosures arrive on site. Additionally, the base acts as a lower cable chase, facilitating the passage of cabling between racks. It carries an ASCE 7-10 rating and OSHPD 96-01027 certification, supporting a seismic load capacity of 1000 lbs (453.6 kg). This unit is TAA compliant and is a critical component for high-integrity seismic installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 36 in (91.4 cm) |
| Height | 24 in (61 cm) |
| Weight Capacity | 1000 lbs (453.6 kg) |
| Width | 30 in (76.2 cm) |
| Base Series | DRK |
| Component Type | Riser Base |
| Finish | Textured Black Powder Coat |
| Number of Bays | 1 |
All other specifications 5
| Seismic Rated | Yes |
| UPC | 656747181122 |
| ASCE Number | 7-10 |
| OSHPD Number | 96-01027 |
| Seismic Load Capacity | 1000 lbs (453.6 kg) |
Resources
Questions about this part
What is the seismic rating for the SRB-1-DRK-3624?
This riser base is Seismic Rated with ASCE 7-10 compliance and holds OSHPD 96-01027 certification.
Will this base work with a 42 inch deep rack?
No, this specific SKU is designed for the 36 inch (91.4 cm) deep DRK series racks.
How much weight can this riser base support?
The base has a weight capacity and seismic load capacity of 1000 lbs (453.6 kg).
What is the purpose of the SRB riser base in a rack system?
It allows for field rough-in before equipment arrives and serves as a lower cable chase for passing cables between racks.
Is this product TAA compliant?
Yes, the SRB-1-DRK-3624 is TAA compliant.
