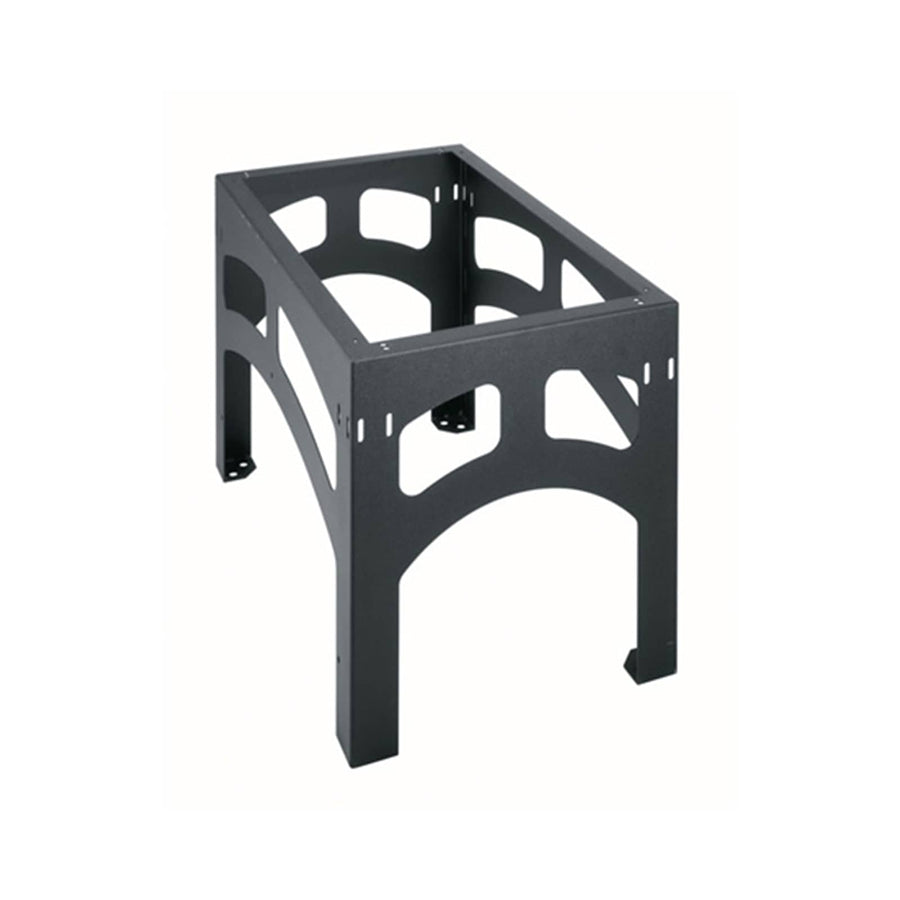

1 Bay Seismic Riser Base for 32 Inch Deep WRK Racks
Seismic rated 1-bay riser base for 32" deep WRK series racks with 1000 lbs capacity
The SRB-1-WRK-3224 is a seismic rated riser base designed specifically for use with 1-bay 32 in (81.3 cm) deep WRK series racks. Constructed from heavy-gauge welded steel with a textured black powder coat finish, this component provides a stable foundation for critical equipment in high-risk environments. This riser base allows for field rough-in of necessary infrastructure prior to the arrival of the actual racks and enclosures on site. Once installed, it functions as a lower cable chase, providing a dedicated pathway for passing cables between adjacent racks. This unit is TAA compliant and meets seismic safety requirements, carrying both ASCE 7-10 and OSHPD 96-01027 certifications for professional installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 32 in (81.3 cm) |
| Height | 24 in (61 cm) |
| Shipping Weight | 74 lbs (33.6 kg) |
| Weight Capacity | 1000 lbs (453.6 kg) |
| Width | 24.25 in (61.6 cm) |
| Base Series | WRK |
| Component Type | Riser Base |
| Finish | Textured Black Powder Coat |
All other specifications 6
| Number of Bays | 1 |
| Seismic Rated | Yes |
| UPC | 656747124624 |
| ASCE Number | 7-10 |
| OSHPD Number | 96-01027 |
| Seismic Load Capacity | 1000 lbs (453.6 kg) |
Resources
Questions about this part
Will this base work with my 32 inch deep WRK rack?
Yes, the SRB-1-WRK-3224 is specifically designed to support 1-bay WRK series racks with a 32 in (81.3 cm) depth.
What is the seismic load capacity for the SRB-1-WRK-3224?
This riser base has a seismic load capacity of 1000 lbs (453.6 kg) and is compliant with ASCE 7-10 and OSHPD 96-01027.
How does this riser base assist with cable management?
The unit acts as a lower cable chase, providing a path to pass cabling between different racks in a sequence.
What is the primary benefit of installing this during construction?
It allows installers to perform field rough-in of infrastructure before the actual racks and enclosures arrive at the site.
Which technical documents are available for submittals?
You can access the SRB Series Seismic Riser Base CAD Technical Specification Drawings (dwg) and the A&E Specification Sheet (PDF) for submittal packages.
