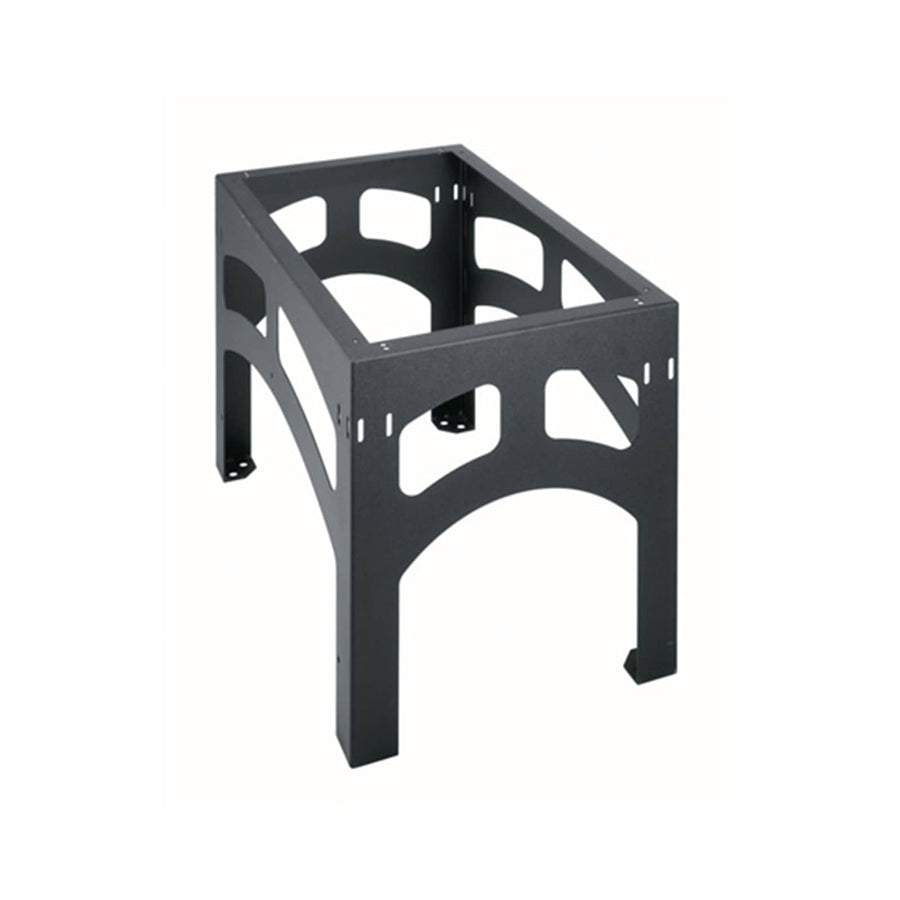

1 Bay Seismic Riser Base for 27 Inch Deep WRK Racks
Seismic riser base for 27 inch deep WRK series racks, featuring 1000 lbs seismic load capacity and OSHPD 96-01027 certification
The SRB-1-WRK-2724 is a seismic-rated riser base specifically designed for use with 27 in (68.6 cm) deep WRK series racks. This 1-bay component is constructed from heavy-gauge welded steel and finished with a textured black powder coat. It provides a 24.25 in (61.6 cm) wide foundation that allows for field rough-in of infrastructure before the arrival of the actual racks and enclosures. This base functions as a lower cable chase, creating a dedicated pathway for passing cables between adjacent racks. The unit is engineered for high-stress environments, maintaining a seismic load capacity of 1000 lbs (453.6 kg) and meeting ASCE 7-10 standards. This base is TAA compliant and carries OSHPD certification number 96-01027, making it suitable for seismically regulated installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 27 in (68.6 cm) |
| Height | 24 in (61 cm) |
| Shipping Weight | 70 lbs (31.8 kg) |
| Weight Capacity | 1000 lbs (453.6 kg) |
| Width | 24.25 in (61.6 cm) |
| Base Series | WRK |
| Component Type | Riser Base |
| Finish | Textured Black Powder Coat |
All other specifications 6
| Number of Bays | 1 |
| Seismic Rated | Yes |
| UPC | 656747129681 |
| ASCE Number | 7-10 |
| OSHPD Number | 96-01027 |
| Seismic Load Capacity | 1000 lbs (453.6 kg) |
Resources
Questions about this part
Will the SRB-1-WRK-2724 work with my WRK racks?
This riser base is specifically designed for the WRK series and is sized for 27 in (68.6 cm) deep racks.
Is this riser base seismic rated and certified?
Yes, it is seismic rated with a seismic load capacity of 1000 lbs (453.6 kg) and is OSHPD 96-01027 certified.
What is the primary benefit of using a riser base during installation?
It allows installers to complete field rough-in of cables and infrastructure before the racks and enclosures arrive on site.
Can this be used to manage cabling between racks?
Yes, the base acts as a lower cable chase to facilitate passing cables between adjacent racks in a 1-bay configuration.
Is this product TAA compliant for government contracts?
Yes, the SRB-1-WRK-2724 is listed as TAA compliant.
