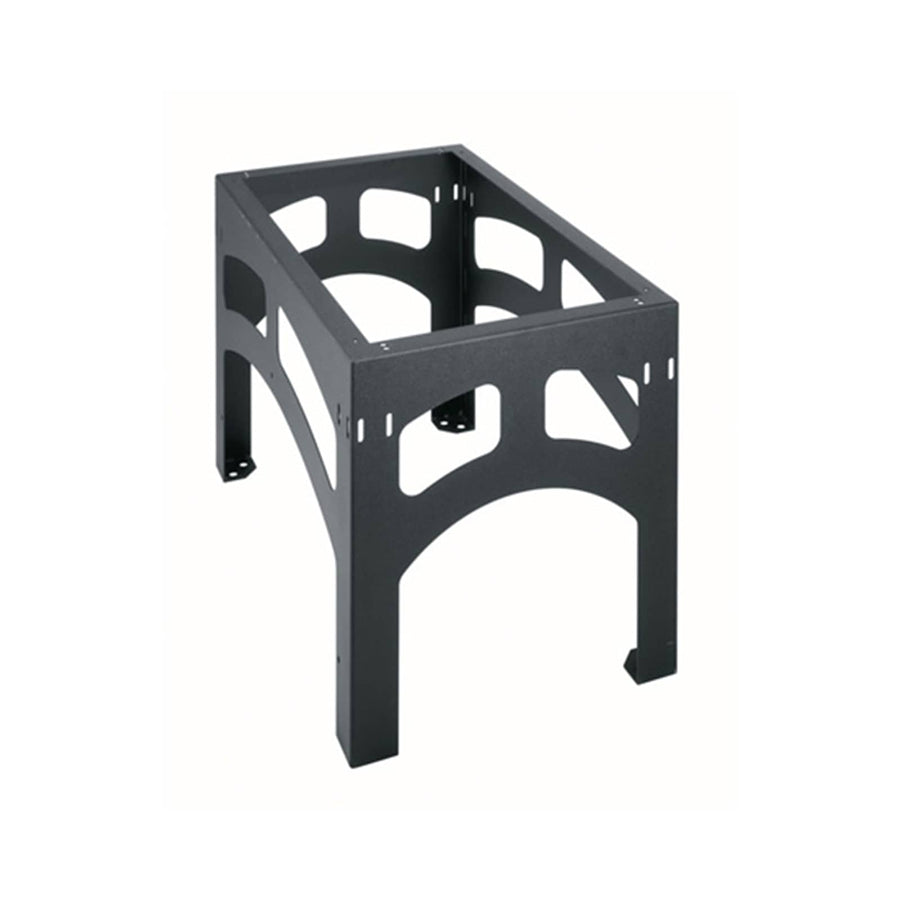

1 Bay Seismic Riser Base for 26 Inch Deep MRK, VRK Racks
Seismic riser base for 26 in (66 cm) deep MRK and VRK racks, 1000 lbs capacity, OSHPD 96-01027 listed
The SRB-1-MRK-2624 is a 1-bay seismic riser base designed for use with 26 in (66 cm) deep MRK or VRK series racks and enclosures. Built from heavy-gauge welded steel with a textured black powder coat finish, this component provides a robust foundation for seismic-rated installations. It is engineered to allow for field rough-in of infrastructure prior to the arrival of the actual racks. Once installed, the base serves as a lower cable chase to facilitate cable passage between racks. This unit is TAA compliant and meets seismic requirements under ASCE 7-10 and OSHPD 96-01027. It is rated for a seismic load capacity of 1000 lbs (453.6 kg) and has a total weight capacity of 1000 lbs (453.6 kg). The unit's physical footprint measures 22 in (55.9 cm) wide by 26 in (66 cm) deep, with a height of 24 in (61 cm).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 26 in (66 cm) |
| Height | 24 in (61 cm) |
| Shipping Weight | 69 lbs (31.3 kg) |
| Weight Capacity | 1000 lbs (453.6 kg) |
| Width | 22 in (55.9 cm) |
| Base Series | MRK or VRK |
| Component Type | Riser Base |
| Finish | Textured Black Powder Coat |
All other specifications 6
| Number of Bays | 1 |
| Seismic Rated | Yes |
| UPC | 656747181153 |
| ASCE Number | 7-10 |
| OSHPD Number | 96-01027 |
| Seismic Load Capacity | 1000 lbs (453.6 kg) |
Resources
Questions about this part
Will the SRB-1-MRK-2624 fit my rack?
This riser base is specifically designed for 26 in (66 cm) deep MRK or VRK series racks and enclosures.
What is the seismic rating for this riser base?
The SRB-1-MRK-2624 is seismic rated with an ASCE 7-10 designation and carries OSHPD number 96-01027.
What is the maximum load capacity for this base?
The base has a weight capacity of 1000 lbs (453.6 kg) and a seismic load capacity of 1000 lbs (453.6 kg).
How can I use this during the installation process?
Installers can use this base to perform field rough-ins before the racks or enclosures arrive on site.
Does this product require specific submittal documentation?
Yes, you can access the SRB Series Seismic Riser Base 3 Part Specification or the A&E Specification Sheet for submittals.
