1 Bay Riser Base for 27 Inch Deep for BGR Racks
1-bay riser base for 27 in (68.6 cm) deep BGR racks, featuring a 2.5 in (6.4 cm) height to facilitate under-base cabling

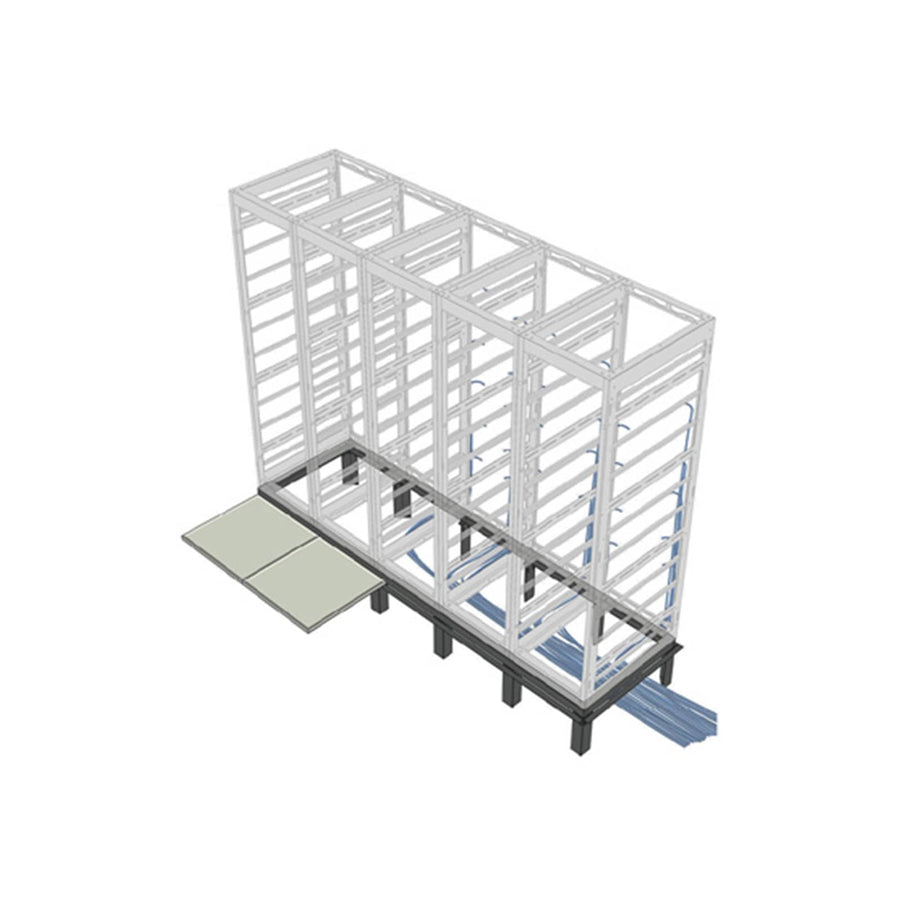

The Middle Atlantic RIB-1-BGR-27 is a 1-bay riser base specifically designed for BGR series racks. Measuring 27 in (68.6 cm) deep, this component is part of a modular system used to facilitate rough-in rack installations. It features a heavy-duty welded construction with a black powder coat finish for durability. This base is designed to match the rack width and allows for essential cable passage underneath the unit. For installations requiring additional clearance, such as raised floor environments, this base can be paired with optional VFEET-1-12 riser feet. Please note that this is an individual component; the system also requires riser V-feet and support angles, such as the BANGLE-1, which are sold separately.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 27 in (68.6 cm) |
| Height | 2.5 in (6.4 cm) |
| Shipping Weight | 12.75 lbs (5.8 kg) |
| Width | 23 in (58.4 cm) |
| Base Series | BGR |
| Component Type | Riser Base |
| Number of Bays | 1 |
| UPC | 656747143533 |
Resources
You'll need these with it
Questions about this part
What is required to complete the full riser base assembly?
The RIB-1-BGR-27 is a single component. To complete the system, you will need riser V-feet and support angles like the BANGLE-1.
Will this base work for a raised floor installation?
Yes, you can use optional VFEET-1-12 1-bay riser feet to raise the base to the necessary height for raised floor environments.
How does this base facilitate cable management?
The design of this base allows for cables to pass directly underneath the rack, aiding in installation and organization.
Is this product TAA compliant?
Yes, the RIB-1-BGR-27 is TAA compliant and holds PEP certification.
What are the dimensions of the RIB-1-BGR-27?
This 1-bay base measures 23 in (58.4 cm) wide, 27 in (68.6 cm) deep, and stands 2.5 in (6.4 cm) high.
