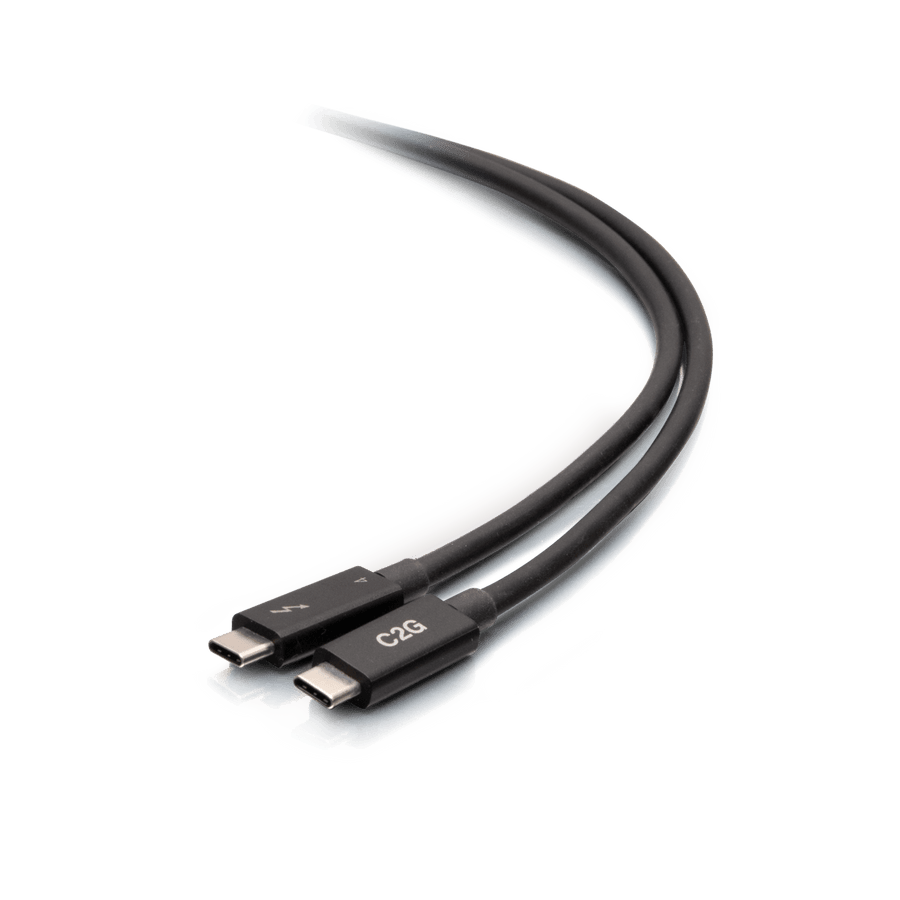

1.6ft (0.5m) Thunderbolt™ 4 USB-C® Cable (40Gbps)
Thunderbolt 4 USB-C cable supporting 40Gbps data transfer and 8K video resolution at 1.64 ft (0.5 m) length
The C2G28885 is a 1.64 ft (0.5 m) Thunderbolt 4 USB-C cable designed for high-bandwidth connectivity between compatible devices. It delivers bidirectional signal transmission at a data transfer rate of 40 Gbps, making it capable of transferring a 5GB file in approximately one second. This cable supports high-resolution video output, including 8K (8192 x 4320) at 60Hz, as well as 4K @ 60Hz and 4K @ 30Hz via USB-C. It is engineered to provide up to 100W of charging power to or from connected devices such as laptops, tablets, or phones. This cable is tested for broad compatibility across Mac, Windows, and Chrome OS devices. It features a 0.19 in (4.8 mm) cable diameter and a 1.89 in (48 mm) minimum bend radius. The operating temperature range is 32° to 122°F (0° to 50°C). This cable is NDAA 889 compliant and meets RoHS, REACH, TSCA, and Prop 65 requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.89 in (48 mm) |
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 1.64 ft (0.5 m) |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Shipping Weight | 0.5 lbs (0.2 kg) |
| Signal Transmission | Bidirectional |
| Storage Temperature Max | 158 Fahrenheit (70 Celsius) |
| Storage Temperature Min | 32 Fahrenheit (0 Celsius) |
All other specifications 13
| Cable Type | Thunderbolt 4 |
| Color | Black |
| Connector 1 | (1) USB-C Male |
| Connector 2 | (1) USB-C Male |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120288855 |
| Video Input Support | USB-C |
| Video Output Support | USB-C |
| Video Resolution | 1080p4K4K @ 30Hz4K @ 60Hz |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 40 GBPS |
| Warranty | Lifetime |
Resources
Questions about this part
Will this C2G28885 cable work with my Thunderbolt 3 or Thunderbolt 5 device?
Yes, this cable is compatible with Thunderbolt 3, Thunderbolt 4, and Thunderbolt 5 enabled ports for high-speed data and video.
What video resolutions can I run through the C2G28885 cable?
The cable supports video resolutions up to 8K (8192 x 4320) at 60Hz, as well as 4K at 60Hz and 4K at 30Hz.
How much power delivery can this Thunderbolt 4 cable provide?
This USB-C cable can deliver up to 100W of charging power to or from a connected laptop, tablet, or phone.
What is the maximum bend radius for this USB-C cable?
The cable has a minimum bend radius of 1.89 in (48 mm) with a diameter of 0.19 in (4.8 mm).
Is this cable suitable for professional deployments requiring NDAA compliance?
Yes, the C2G28885 is NDAA 889 compliant and also meets RoHS, REACH, and TSCA standards.
