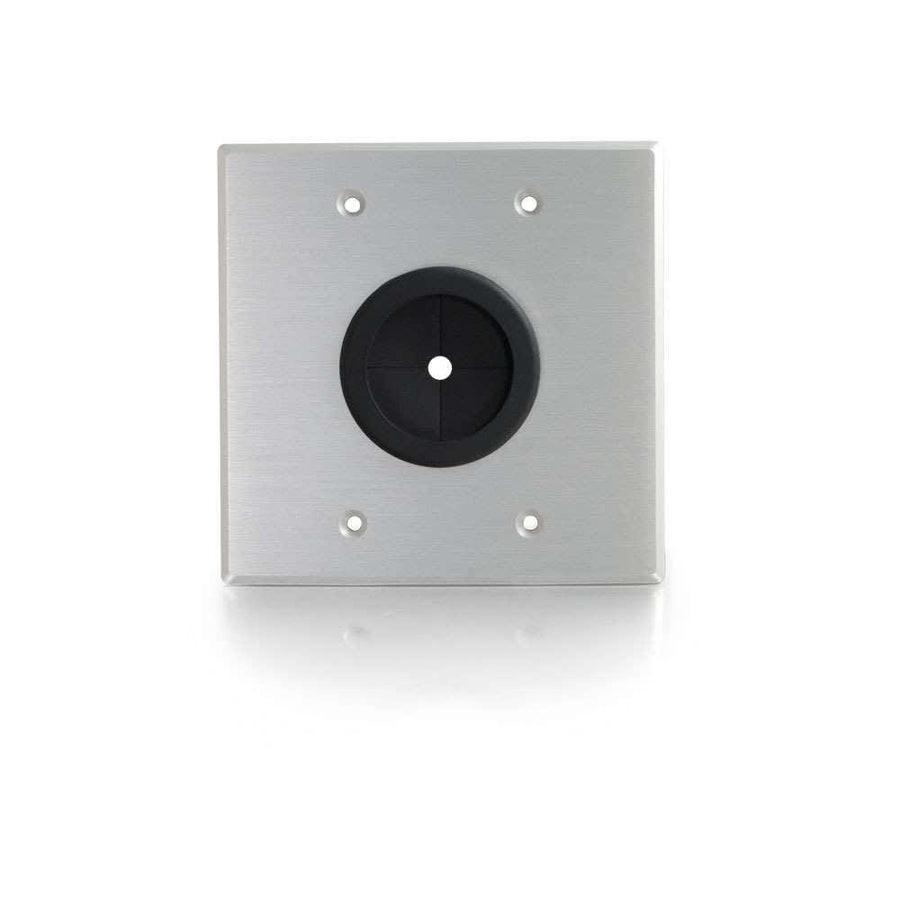

1.5in Grommet Cable Pass Through Double Gang Wall Plate - Brushed Aluminum
Brushed aluminum double gang pass-through wall plate with a 1.5 inch grommet opening for professional cable management
The C2G CG40546 is a double gang wall plate designed to provide a clean cable pass-through solution in demanding commercial environments. Constructed from 3mm aircraft-grade brushed aluminum, this pass-through plate is built to withstand heavy use. It is designed for easy mounting into standard double gang wall boxes or mud rings using a screw mount method. The plate features a 1.5 inch opening equipped with a protective rubber grommet to secure cabling. This specific model is engineered with the connector located at the bottom to simplify installation when working within limited-clearance electrical boxes. For installers seeking different configurations, the CG40488 is the 1-inch version, while the CG40489 provides a single gang option.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
| Shipping Weight | 0.39 lbs (0.2 kg) |
| Color | Aluminum |
| Material | Aluminum |
| Mounting Method | Screw Mount |
| Product Type | GrommetWall Plate |
| TAA Compliant | No |
| UPC | 757120405467 |
| Wall Plate Type | DecoratorPassthrough |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Warranty | Lifetime |
You'll need these with it
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99

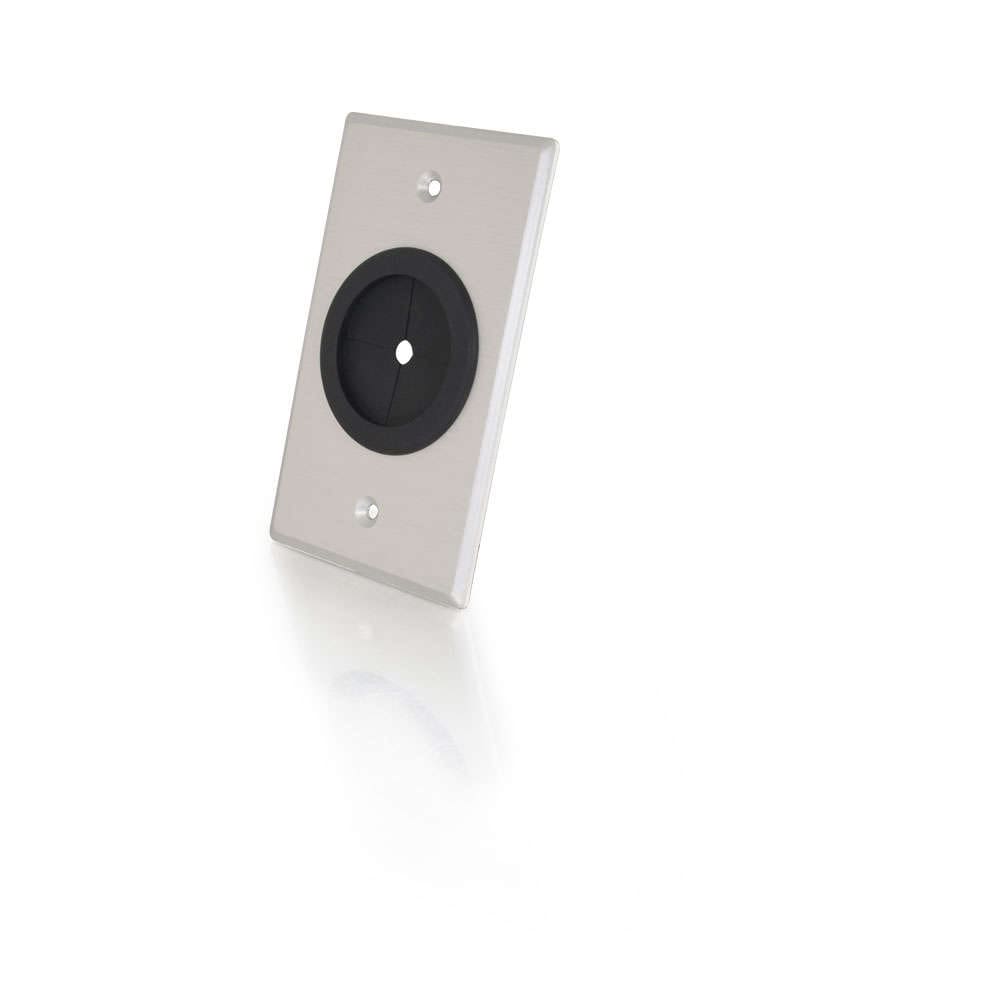

1.5in Grommet Cable Pass Through Single Gang Wall Plate - Brushed Aluminum
CG40489$33.99

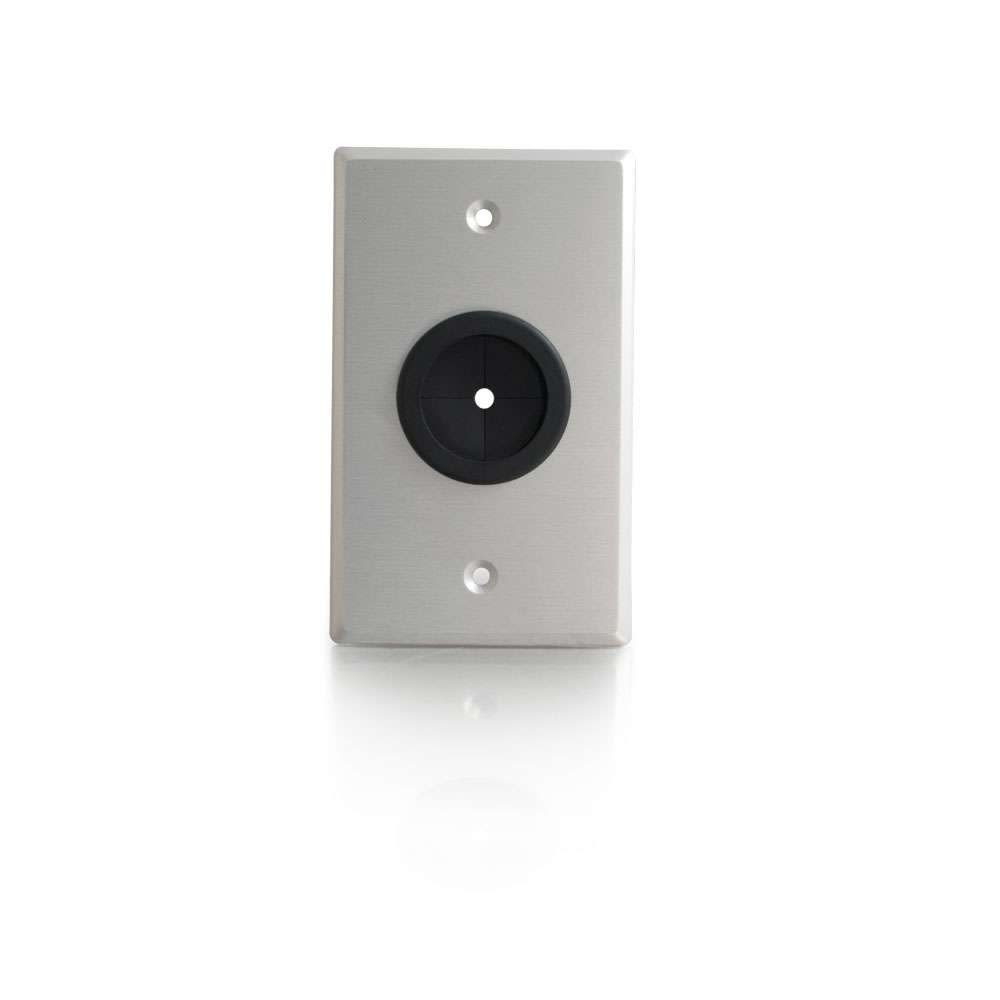

1in Grommet Cable Pass Through Single Gang Wall Plate - Brushed Aluminum
CG40488$34.99
Questions about this part
Will this plate fit a standard double gang box?
Yes, this CG40546 plate is designed specifically for use with standard double gang wall boxes or mud rings.
What size cable opening does this wall plate have?
The CG40546 features a 1.5 inch opening for cable pass-through, which includes a protective rubber grommet.
How does this differ from the CG40488 model?
The CG40488 is a single gang version, whereas the CG40546 is a double gang wall plate.
What materials are used in the construction of this plate?
This pass-through plate is made from 3mm aircraft-grade brushed aluminum.
What mounting hardware is required for installation?
This is a screw mount wall plate designed for standard electrical boxes or mud rings.
