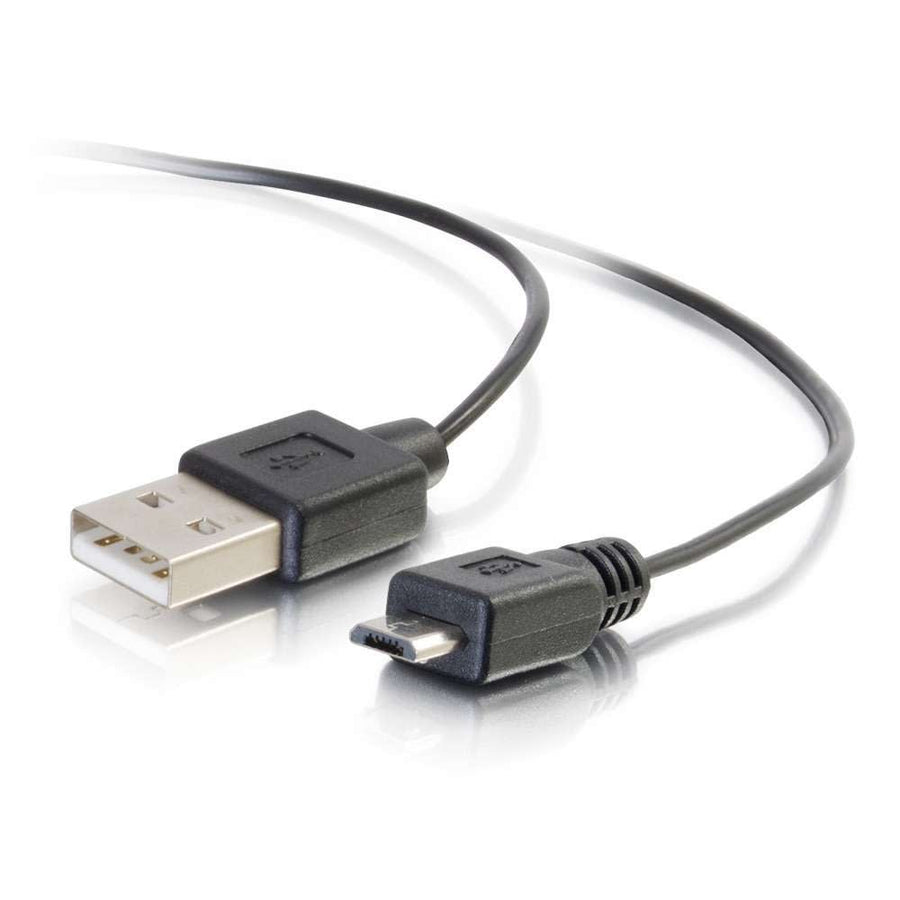

1.5ft (0.46m) USB Charging Cable
1.5ft USB charging cable, USB-A to Micro-B, featuring ultra-flexible 30 AWG construction for power delivery in tight spaces
The C2G CG27053 is a 1.5 ft (0.5 m) USB charging cable designed to provide power to mobile devices such as smartphones and tablets. This specific cable is wired for power delivery only and cannot be used for data synchronization; it will charge a connected device but will not allow for data transfer or syncing. It features nickel-plated connectors to provide corrosion resistance during regular use. The cable construction utilizes 30 AWG wire, which allows for an ultra-flexible profile with a cable diameter of 0.07 in (1.9 mm). This slim, highly pliable design makes it a practical solution for connecting devices in highly congested or tight installation environments where standard, thicker cables might be difficult to manage. The jacket is made of durable PVC and the cable is rated for operating temperatures ranging from -4°F to 176°F (-20°C to 80°C).
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Amps | 100 mA |
| Cable Diameter | 0.07 in (1.9 mm) |
| Cable Length | 1.5 ft (0.5 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shipping Weight | 0.03 lbs (0 kg) |
| Signal Transmission | Bidirectional |
All other specifications 15
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 30 |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB-A Male(1) USB-A Male |
| Connector 2 | (1) USB Micro-B Male(1) USB Micro-B Male |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120270539 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
Can I use the CG27053 to sync data between my computer and device?
No, the CG27053 is wired for power delivery only and will not carry data for device syncing.
What is the connector type for the CG27053?
This cable features one USB-A Male connector and one USB Micro-B Male connector.
Is this cable suitable for use in high-temperature environments?
Yes, it is rated for operating temperatures as high as 176°F (80°C) and as low as -4°F (-20°C).
What is the purpose of the 30 AWG wire in this cable?
The 30 AWG conductor provides an ultra-flexible construction, making the 1.5 ft (0.5 m) cable easier to manage in tight spaces.
