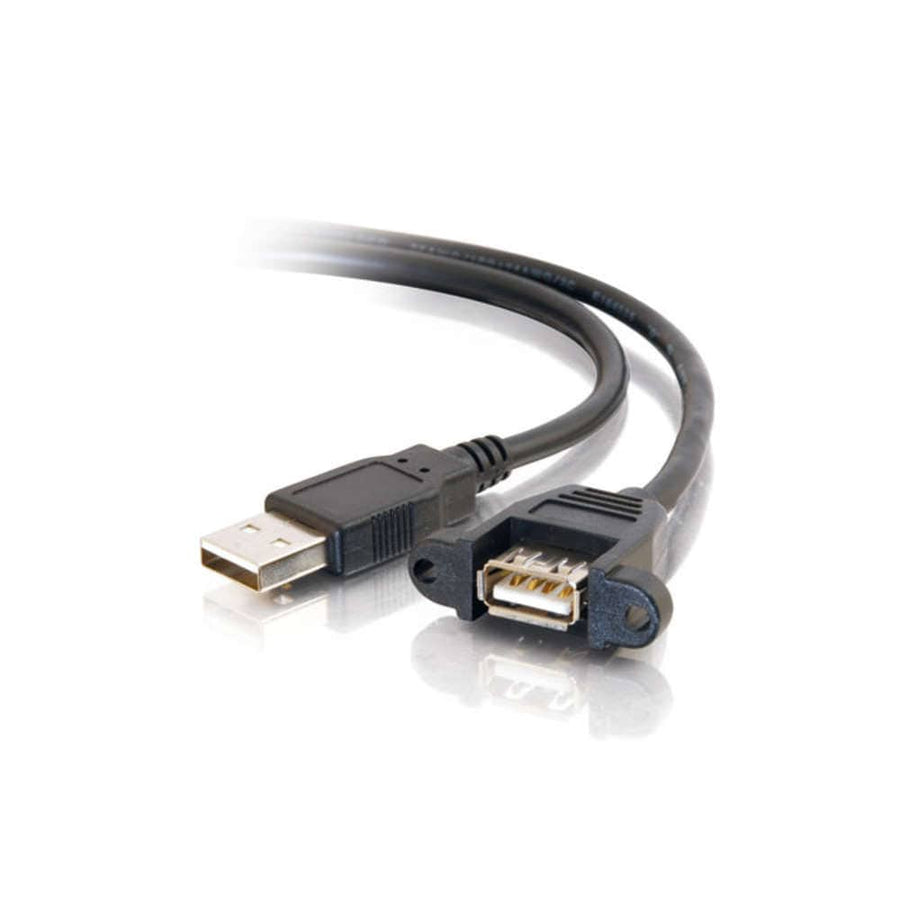

1.5ft (0.46m) Panel-Mount USB 2.0 A Male to A Female Cable
1.5 ft USB 2.0 A Male to A Female panel-mount cable for secure, fixed connection points in kiosks or podiums
The C2G CG28062 is a 1.5 ft (0.5 m) USB 2.0 A Male to A Female cable designed to integrate USB 2.0 functionality directly into custom systems via a secure, fixed port. This cable is an effective solution for rerouting ports to convenient locations, such as the surface of a desk, podium, or kiosk, providing users with direct access to a PC, printer, or projector with minimal repositioning. The molded screw-style connectors allow for a secure and professional attachment to a faceplate or machined port. To ensure reliable data transfer, the cable utilizes twisted pair construction and foil and braid shielding to reduce EMI/RFI interference and crosstalk. It supports high-speed data transfer rates of up to 480 Mbps and is backward compatible with USB 1.1 (12 Mbps) and USB 1.0 (1.5 Mbps) devices. This cable is compatible with both PC and Mac systems and features a durable PVC jacket.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 100 mA |
| Cable Length | 1.5 ft (0.5 m) |
| Shipping Weight | 0.08 lbs (0 kg) |
| Signal Transmission | Bidirectional |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB-A Male(1) USB-A Male |
| Connector 2 | (1) USB-A Female(1) USB-A Female |
All other specifications 8
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 2.0 |
| UPC | 757120280620 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
What is the total length of the C2G CG28062 cable?
The cable length is 1.5 ft (0.5 m) for this specific SKU.
Will this USB cable work with my Mac or PC?
Yes, this cable is designed for both PC and Mac compatibility.
How do I mount this cable to a faceplate?
The cable features molded screw-style connectors that allow for easy and secure connection to a faceplate or machined port.
What are the available length options for this series?
This series is available in lengths of 1 ft, 1.5 ft, and 3 ft.
Does this cable support high-speed data transfer?
Yes, it supports USB 2.0 high-speed data transfer up to 480 Mbps.
