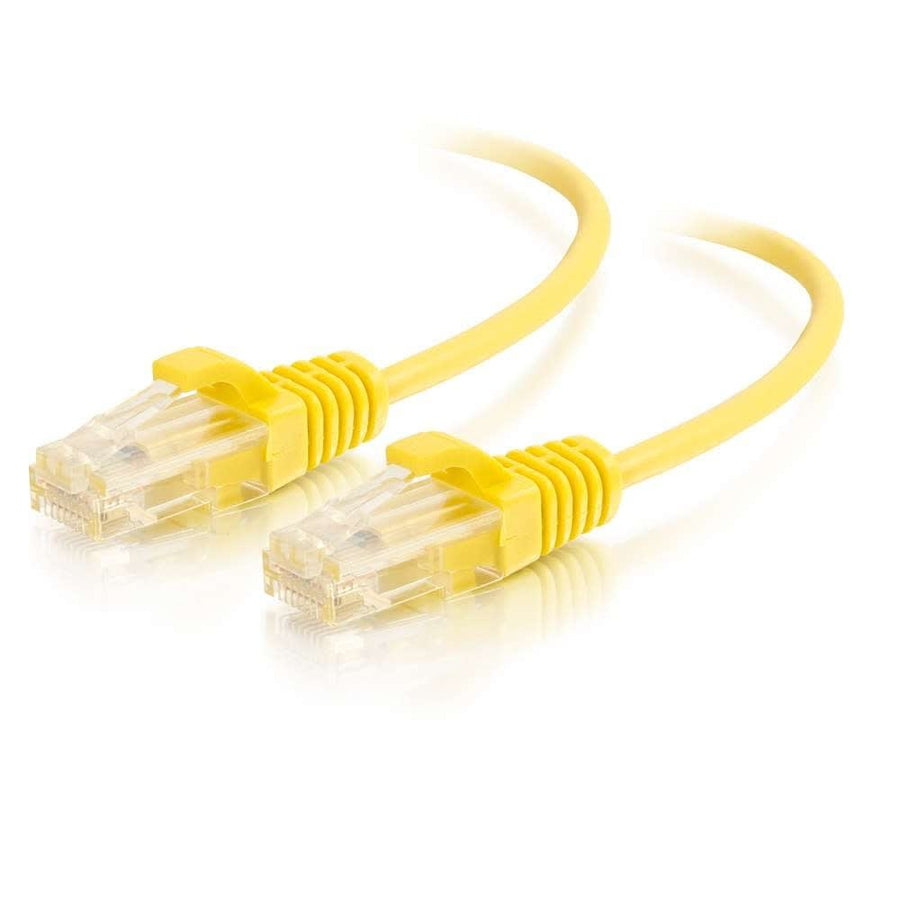

1.5ft (0.46m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Yellow
Yellow Cat6 Slim Snagless UTP patch cable, 1.5ft length, featuring 28 AWG conductors for high-density airflow optimization
The C2G02242 is a 1.5ft (0.5 m) Cat6 Snagless Unshielded (UTP) Slim Ethernet Network Patch Cable in yellow, specifically engineered for high-density datacenter and networking environments. Utilizing 28 AWG stranded copper conductors, this slim cable provides a 36% reduction in diameter compared to standard Cat6 patch cables. This significantly reduced profile facilitates increased airflow within crowded enclosures and allows for a tighter bend radius of 0.6 in (15.2 mm), making it ideal for routing through restricted cable management panels. The cable features RJ-45 male slim connectors with PVC hoods and 50 µ in gold plating to ensure reliable connections. It is designed for high-bandwidth applications including fast Ethernet, voice, data, and video distribution, and it complies with the ANSI/TIA-568-C.2 standard. For PoE/PoE+ deployments, it is recommended to limit bundles to 40 cables to manage heat dissipation due to the reduced diameter. This cable operates in temperatures from -4°F (-20°C) to 176°F (80°C) and supports data transfer rates up to 10 GBPS.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 0.6 in (15.2 mm) |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 1.5 ft (0.5 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 29
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | UTP |
| Shipping Weight | 0.02 lbs (0 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 28 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | Slim |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120022428 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it

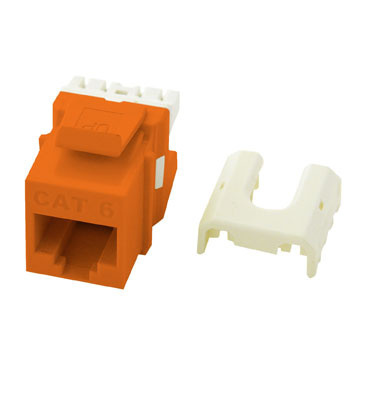

Cat6 QuickConnect RJ45 Keystone Insert in Orange
WP3476OR$6.49

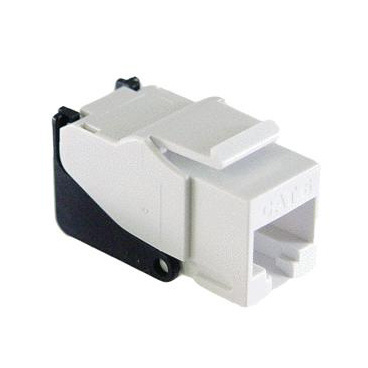

RJ45 Snap & Go Cat6 Keystone Insert in White
WP3560WH$12.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
Cat6 QuickConnect RJ45 Keystone Insert in White - 50 Pack
WP3476WH50$269.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99

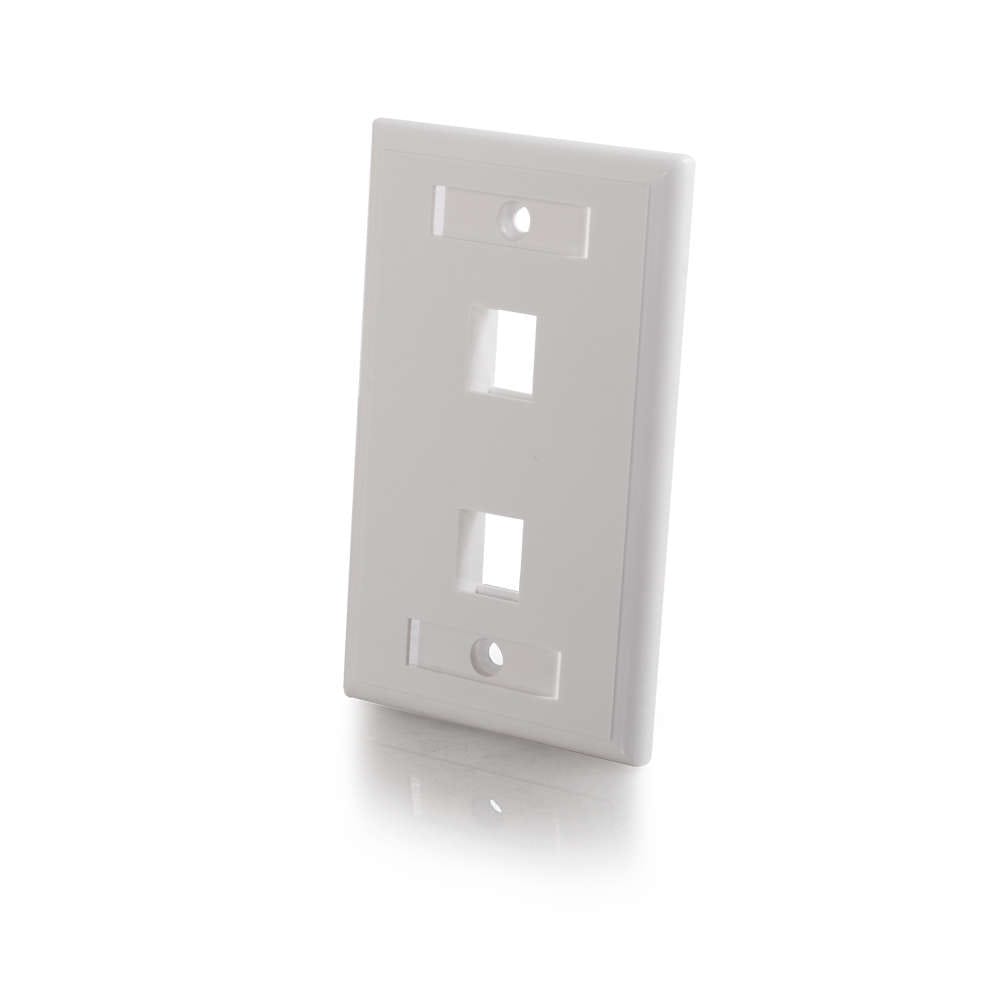

Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
Questions about this part
Will the C2G02242 work for high-density datacenter patching?
Yes, the C2G02242 is designed for high-density environments because its 28 AWG slim profile provides a 36% reduction in diameter, which increases airflow and allows for a 0.6 in (15.2 mm) bend radius.
What is the maximum channel length when using the C2G02242 slim patch cable?
For a 96 meter channel, you can use up to 6 meters of these slim patch cables alongside 90 meters of horizontal cable. For a 93 meter channel, you can use up to 10 meters of these cables with 83 meters of horizontal cable.
Can this cable be used in PoE or PoE+ applications?
Yes, but for PoE/PoE+ applications, it is recommended to limit cable bundles to 40 cables to ensure proper heat dissipation for the reduced diameter 28 AWG conductors.
What hardware is compatible with this Cat6 cable?
This cable is compatible with various networking components, including the CG37199 24-Port Cat6 110-Type Patch Panel and the CG29854 11in Hook-and-Loop Cable Management Wrap.
What technical standards does this cable meet?
The C2G02242 complies with the ANSI/TIA-568-C.2 and TIA/EIA-568-C.2 standards, supporting data transfer rates up to 10 GBPS.
