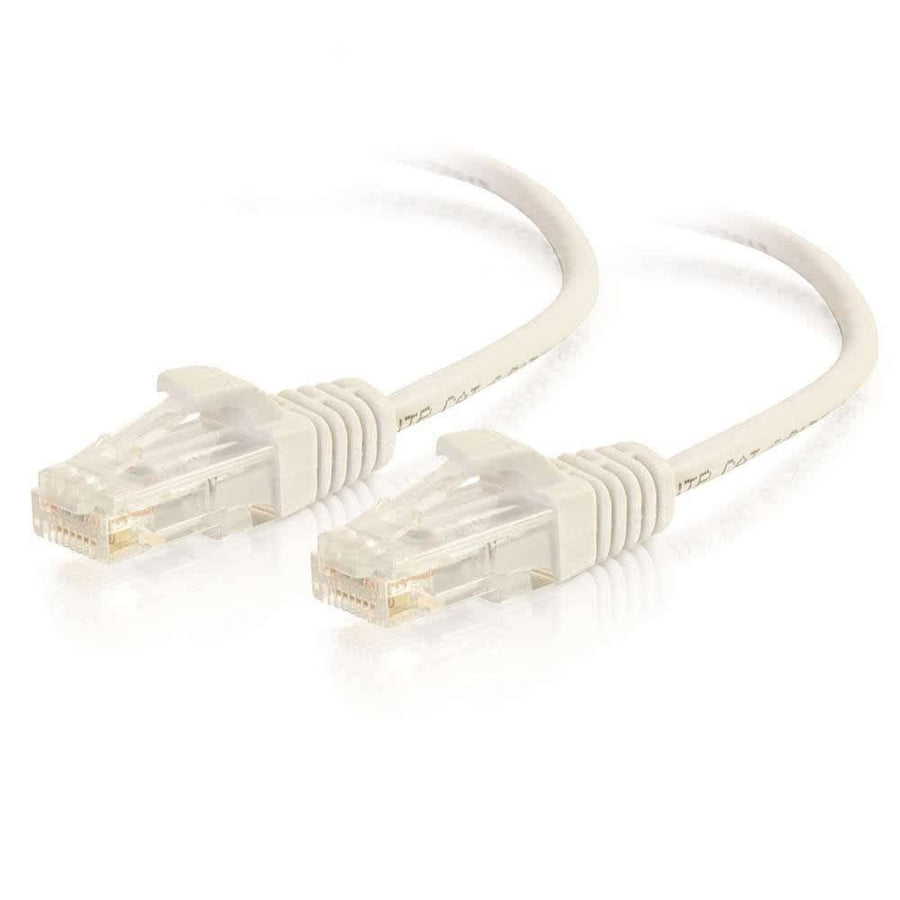

1.5ft (0.46m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - White
1.5ft Cat6 slim snagless UTP patch cable with 28 AWG conductors for high-density airflow and easy cable management routing
The C2G02236 is a 1.5 ft (0.5 m) Cat6 slim snagless unshielded UTP network patch cable designed specifically for high-density datacenter environments. By utilizing 28 AWG stranded copper conductors, this cable achieves a 36% reduction in diameter compared to standard Cat6 cables. This smaller 0.15 in (3.8 mm) diameter increases airflow within equipment racks and allows for a much tighter bend radius of 0.6 in (15.2 mm). Such dimensions enable easier routing through crowded cable management panels. This cable is engineered for high-bandwidth voice, data, or video distribution applications, providing 10 Gbps data transfer rates. The molded snagless boot provides strain relief and prevents snags during installation. This white patch cable follows the T568B wiring scheme and complies with TIA/EIA-568-C.2 standards. It is rated for operating temperatures from -4°F to 176°F (-20°C to 80°C). For POE/POE+ applications, installers should limit bundles to 40 cables to manage heat dissipation caused by the reduced diameter.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 0.6 in (15.2 mm) |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 1.5 ft (0.5 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 29
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | UTP |
| Shipping Weight | 0.02 lbs (0 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 28 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | Slim |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120022367 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 QuickConnect RJ45 Keystone Insert in Orange
WP3476OR$6.49
RJ45 Snap & Go Cat6 Keystone Insert in White
WP3560WH$12.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
Cat6 QuickConnect RJ45 Keystone Insert in White - 50 Pack
WP3476WH50$269.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
Questions about this part
The C2G02236 is ideal for high-density environments because its 28 AWG slim profile offers a 36% diameter reduction, which increases airflow and simplifies routing through cable management panels.
The C2G02236 is ideal for high-density environments because its 28 AWG slim profile offers a 36% diameter reduction, which increases airflow and simplifies routing through cable management panels.
Can I use this slim patch cable for POE or POE+ applications?
Yes, but for POE/POE+ applications, it is recommended to limit cable bundles to 40 units to account for heat dissipation in these reduced diameter 28 AWG cables.
What is the maximum channel length when using this slim patch cable?
For a 96-meter channel, you can use up to 6 meters of slim network patch cables with 90 meters of horizontal cable; for a 93-meter channel, you can use up to 10 meters of these cables.
What tools are required for installation?
No special tools are listed for installation, but the snagless boot design is intended to protect the RJ-45 connectors and provide strain relief without extra hardware.
Is the C2G02236 compatible with standard Cat6 keystone inserts?
Yes, this cable is compatible with various components like the WP3476WH Cat6 QuickConnect RJ45 Keystone Insert and the CG37199 24-Port Cat6 110-Type Patch Panel.
