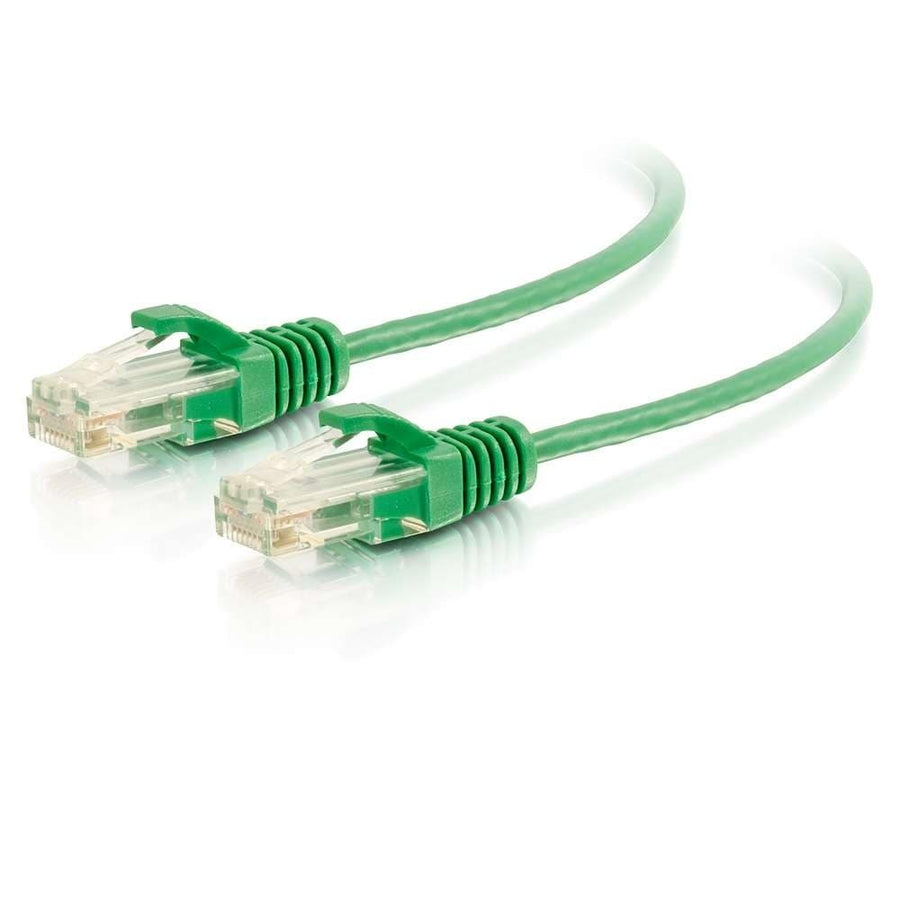

1.5ft (0.46m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Green
Green 1.5ft Cat6 Slim Unshielded UTP patch cable with 28 AWG conductors for high-density environments
The C2G02221 is a 1.5 ft (0.5 m) Cat6 Slim Unshielded UTP Ethernet Network Patch Cable in green, engineered specifically for high-density datacenter applications. By utilizing 28 AWG stranded copper conductors, this cable achieves a 36% reduction in diameter compared to standard Cat6 patch cables. This slim profile, measuring 0.15 in (3.8 mm) in diameter, significantly increases airflow in crowded racks by reducing the total cable surface area. The reduced diameter and 0.6 in (15.2 mm) bend radius allow for easier routing through compact cable management panels. This TIA/EIA-568-C.2 compliant cable is designed for bandwidth-intensive voice, data, and video distribution in fast Ethernet networks. Each cable features RJ-45 male slim connectors with 50 µ in gold plating for reliable connectivity and a molded, snagless PVC boot to provide extra strain relief and prevent snags during installation. For POE/POE+ applications, it is recommended to limit bundles to 40 cables to manage heat dissipation effectively due to the reduced diameter of the 28 AWG conductors.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 0.6 in (15.2 mm) |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 1.5 ft (0.5 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 29
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | UTP |
| Shipping Weight | 0.02 lbs (0 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 28 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | Slim |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120022213 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 QuickConnect RJ45 Keystone Insert in Orange
WP3476OR$6.49
RJ45 Snap & Go Cat6 Keystone Insert in White
WP3560WH$12.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
Cat6 QuickConnect RJ45 Keystone Insert in White - 50 Pack
WP3476WH50$269.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
Questions about this part
The C2G02221 is designed for high-density environments where airflow and space are critical. Its 0.15 in (3.8 mm) diameter and 28 AWG construction allow for better airflow and easier routing through management panels compared to standard Cat6 cables.
The C2G02221 is designed for high-density environments where airflow and space are critical. Its 0.15 in (3.8 mm) diameter and 28 AWG construction allow for better airflow and easier routing through management panels compared to standard Cat6 cables.
How does this slim cable affect channel length limits?
For a 96 Meter Channel, you can use up to 6 meters of these slim network patch cables alongside 90 meters of horizontal cable. For a 93 Meter Channel, you can use up to 10 meters of slim patch cables alongside 83 meters of horizontal cable.
Is this cable suitable for PoE or PoE+ applications?
Yes, but because of the heat dissipation characteristics of reduced diameter 28 AWG cables, it is recommended to limit bundles to 40 cables for PoE/POE+ applications.
What is the maximum data transfer rate for the C2G02221?
This Cat6 slim patch cable supports a data transfer rate of up to 10 GBPS and a bandwidth of 500 MHz.
What documentation is available for technical verification?
Technical details regarding Cat6 Slim Expansion testing are available in the Cat6 Slim Expansion Test Data PDF.
