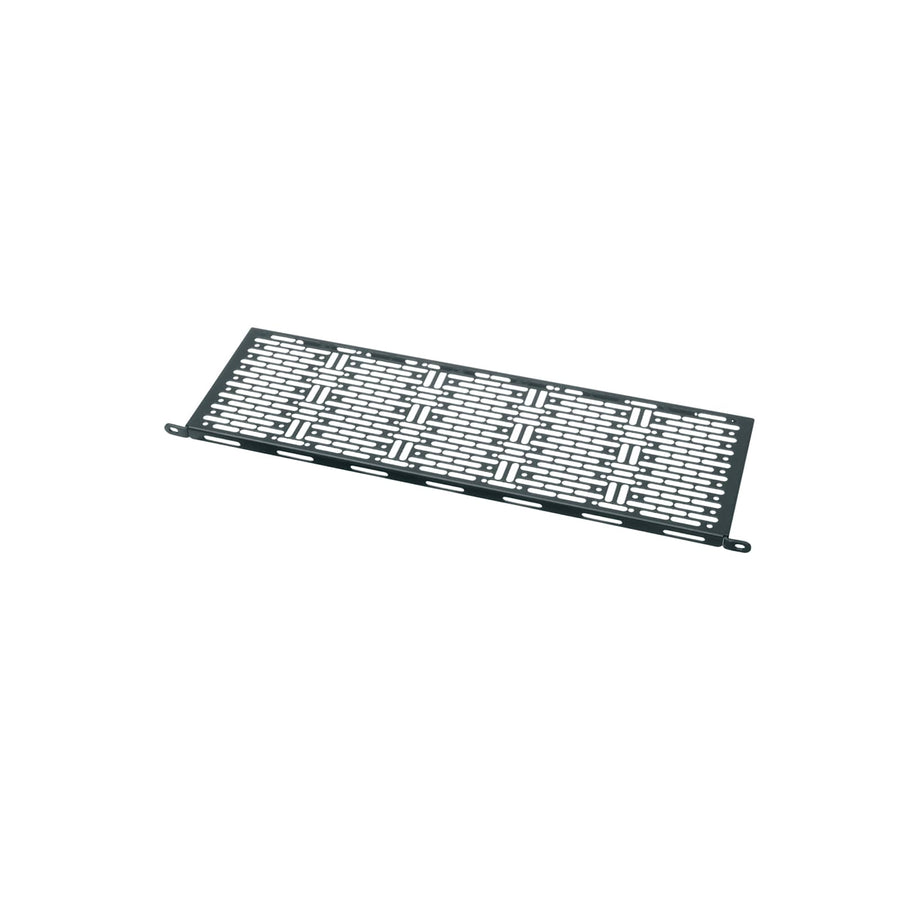

1/2 RU Mounting Rackshelf, 5.5 Inches Deep
1/2 RU rackmount shelf for small devices, featuring 5.5 in usable depth and 30 lbs capacity
The Middle Atlantic MS-5.5 is a 1/2 RU mounting shelf designed to accommodate small hardware in either the front or rear of a standard rack. This steel shelf features a 5.5 in (14 cm) usable depth and a 0.5 in (1.3 cm) height. To secure the unit, it must be installed into a threaded rackrail using standard 10-32 or 5mm screws. The design includes a pattern of holes and slots to facilitate various mounting hole patterns, wire ties, or other fastening methods for cable management. This series is surprisingly strong for its size, offering a weight capacity of 30 lbs (13.6 kg) while occupying minimal vertical space.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 5.5 in (14 cm) |
| Height | 0.5 in (1.3 cm) |
| Package Count | 1 |
| Shipping Weight | 1.24 lbs (0.6 kg) |
| Usable Depth | 5.5 in (14 cm) |
| Weight Capacity | 30 lbs (13.6 kg) |
| Width | 19 in (48.3 cm) |
| Color | Black |
| Mounting Points | 2 |
| UPC | 656747137037 |
Resources
Questions about this part
Will the MS-5.5 fit in my rack?
Yes, this 1/2 RU shelf is designed for use in any standard rack and can be mounted in either the front or rear positions.
What kind of screws do I need for the MS-5.5?
You will need standard 10-32 or 5mm rack screws to install this shelf into a threaded rackrail.
How much weight can this shelf hold?
The MS-5.5 has a weight capacity of 30 lbs (13.6 kg).
How can I secure cables to the shelf?
The shelf features a pattern of holes and slots that provide plentiful tie down points for cable management.
Does this SKU come in other sizes?
This is part of the MS Small Device Mounting Shelf series; other length options, such as the 11 in version, are available.
