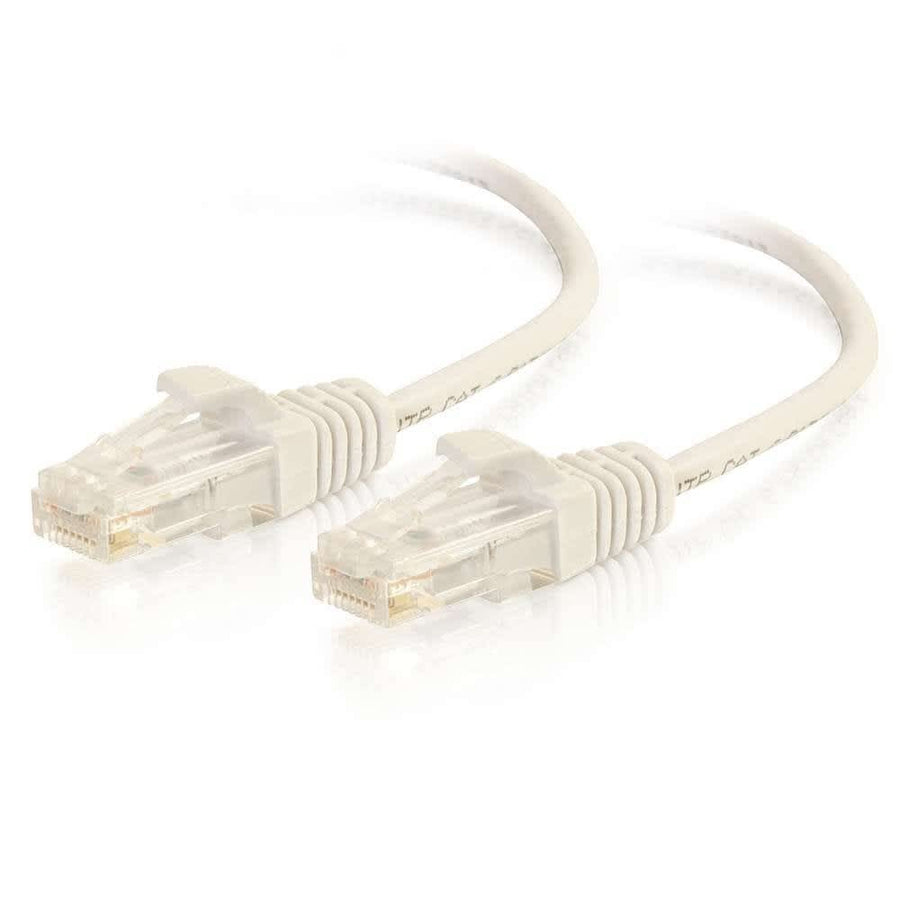

0.5ft (0.3m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - White
High-density Cat6 slim UTP patch cable, 0.5ft length, 28 AWG conductors, 0.15 in (3.8 mm) diameter, White
The C2G02235 is a 0.5ft (0.3m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable in white, specifically engineered for high-density datacenter environments. By utilizing 28 AWG stranded copper conductors, this cable achieves a 36% reduction in diameter compared to standard Cat6 patch cables. This 0.15 in (3.8 mm) slim profile minimizes the cable surface area, which facilitates improved airflow within crowded racks and management panels. The slim design also enables a significantly smaller bend radius of 0.6 in (15.2 mm), making it easier to route through tight cable management systems. This cable supports 10 GBPS data transfer rates and is compliant with the ANSI/TIA-568-C.2 standard. For POE/POE+ applications, it is recommended to limit cable bundles to 40 units to manage heat dissipation caused by the reduced conductor diameter. The molded snagless boot provides strain relief and prevents cable snags during installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 0.6 in (15.2 mm) |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 6 in (15.2 cm) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 29
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | UTP |
| Shipping Weight | 0.01 lbs (0 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 28 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | Slim |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120022350 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Is this C2G02235 cable suitable for high-density datacenter racks?
Yes, the 28 AWG slim design provides a 36% reduction in diameter and a 0.6 in (15.2 mm) bend radius, which increases airflow and simplifies routing in dense panels.
Can I use this slim Cat6 cable for POE or POE+ applications?
For POE and POE+ applications, it is recommended to limit cable bundles to 40 units to ensure proper heat dissipation of the 28 AWG conductors.
What is the maximum channel length when using this slim patch cable?
For a 96 Meter Channel, you can use up to 6 meters of these slim patch cables. For a 93 Meter Channel, you can use up to 10 meters of these cables.
Does this cable support 10 Gigabit Ethernet?
Yes, this Cat6 patch cable is rated for a 10 GBPS data transfer rate and complies with the ANSI/TIA-568-C.2 standard.
What is the difference between this and a standard Cat6 cable?
This version uses 28 AWG conductors and a slim jacket to reduce diameter and bend radius, whereas standard Cat6 cables have a larger profile and larger bend radius.
