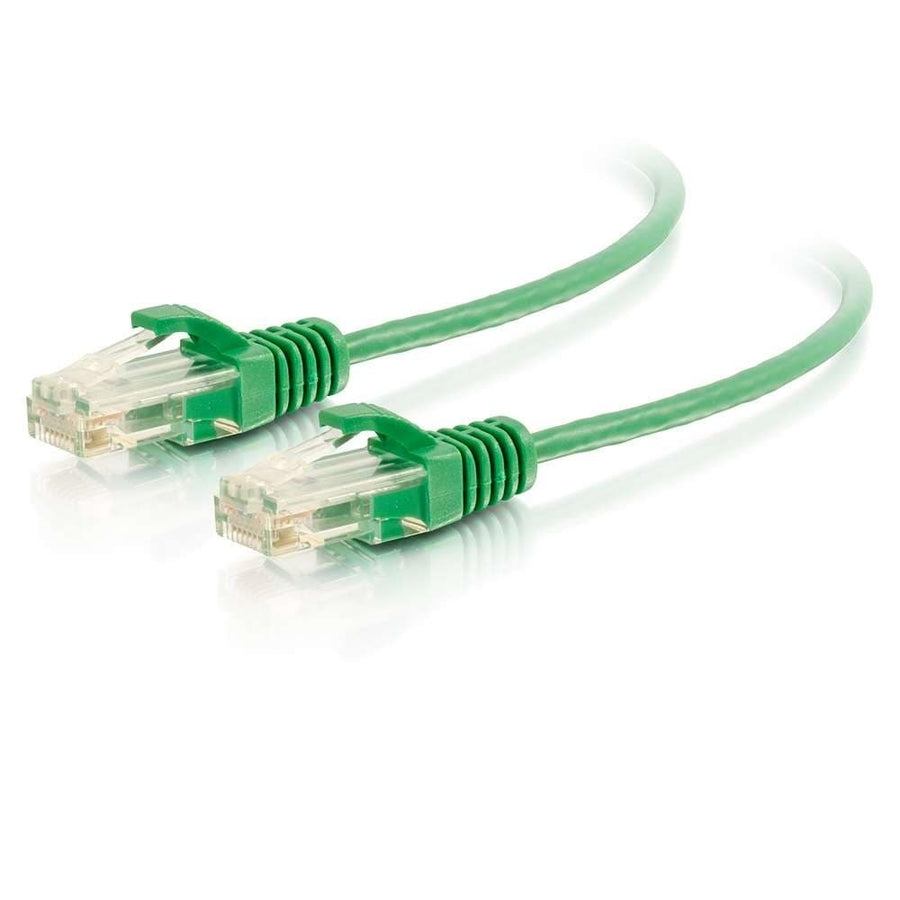

0.5ft (0.3m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch Cable - Green
0.5ft Cat6 Slim UTP patch cable in Green, featuring 28 AWG conductors for high-density datacenter airflow
The C2G02220 is a 0.5ft (0.15m) Cat6 Slim Snagless Unshielded (UTP) Network Patch Cable in Green, engineered specifically for high-density datacenter environments. By utilizing 28 AWG stranded copper conductors, this cable achieves a 36% reduction in diameter compared to standard Cat6 patch cables. This slim 0.15 in (3.8 mm) profile significantly reduces the cable surface area, which promotes increased airflow within crowded server racks and network enclosures. The reduced diameter and 0.6 in (15.2 mm) bend radius allow for easier routing through compact cable management panels and high-density hardware. This cable supports data transfer rates up to 10 GBPS and meets ANSI/TIA-568-C.2 standards. To ensure reliable connectivity in tight spaces, the molded snagless boot provides extra strain relief and prevents accidental snags during installation. This SKU is part of a larger series of slim patch cables available in multiple lengths and colors.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 500 mHz |
| Bend Radius | 0.6 in (15.2 mm) |
| Cable Diameter | 0.15 in (3.8 mm) |
| Cable Length | 6 in (15.2 cm) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 10% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Operating Temperature Max | 176 Fahrenheit (80 Celsius) |
All other specifications 29
| Operating Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Shield Type | UTP |
| Shipping Weight | 0.01 lbs (0 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Voltage | 30 V |
| Wire Gauge | 28 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
| Category Performance Application | Cat6 |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | Slim |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Application | Standard Non-Rated |
| Jacket Rating | Standard / Non-Rated |
| Plating Specification | 50 µ in Gold |
| Product Type | Cable |
| Special Features | TIA/EIA-568-C.2 |
| UPC | 757120022206 |
| Certifications | CEProp 65REACHRoHS |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
Cat6 QuickConnect RJ45 Keystone Insert in Orange
WP3476OR$6.49
RJ45 Snap & Go Cat6 Keystone Insert in White
WP3560WH$12.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
Cat6 QuickConnect RJ45 Keystone Insert in White - 50 Pack
WP3476WH50$269.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
Questions about this part
What is the maximum length for a channel using this slim patch cable?
For a 96 meter total channel, you can use up to 6 meters of these slim network patch cables alongside 90 meters of horizontal cable.
Can this cable be used for PoE or PoE+ applications?
For PoE/POE+ applications, it is recommended to limit bundles to 40 cables to manage the heat dissipation caused by the reduced diameter.
What is the data transfer capability of this Cat6 cable?
This C2G02220 cable supports data transfer rates of up to 10 GBPS and meets ANSI/TIA-568-C.2 standards.
Does this cable work with high-density patch panels?
Yes, the 0.15 in (3.8 mm) diameter and 0.6 in (15.2 mm) bend radius are designed for easy routing through cable management panels like the CG37199 24-Port Cat6 110-Type Patch Panel.
What are the operating temperature requirements for this cable?
The cable is rated for operating temperatures ranging from -4°F (-20°C) to 176°F (80°C).
