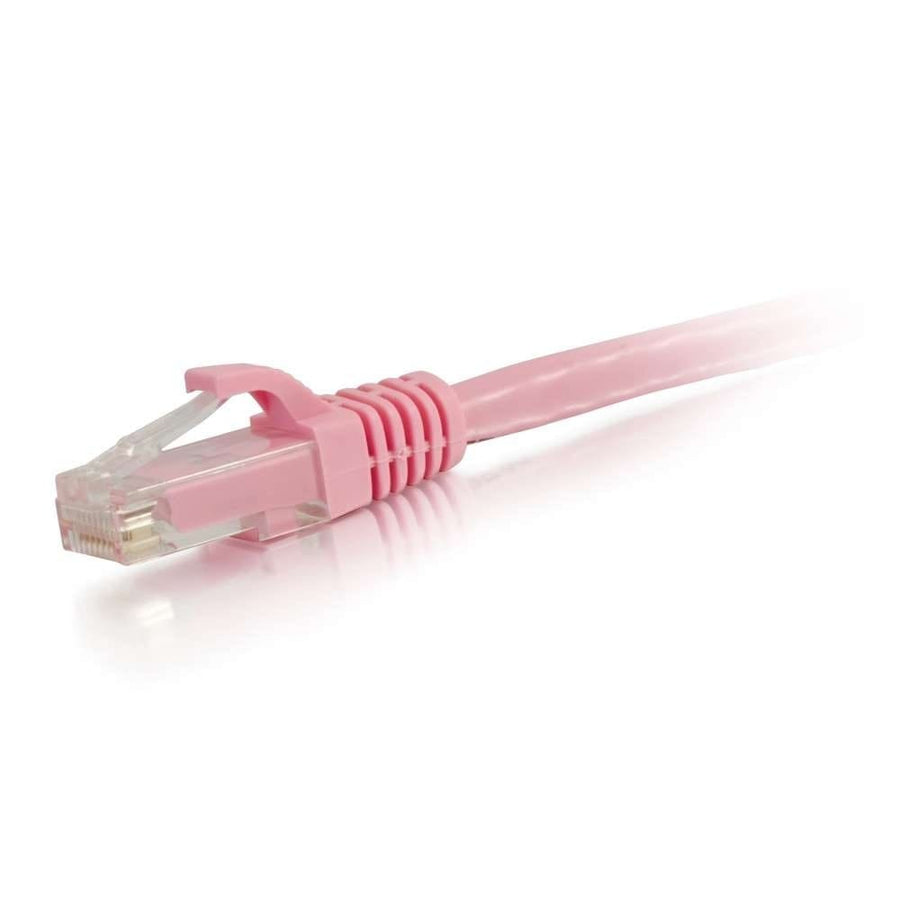

0.5ft (0.15m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Pink
Pink Cat6 snagless UTP patch cable, 0.5 ft (0.2 m) length, featuring stranded copper conductors and RJ-45 male connectors
The C2G CG00960 is a 0.5 ft (0.2 m) pink Cat6 snagless UTP Ethernet network patch cable designed for high-bandwidth environments requiring voice, data, or video distribution. This unshielded twisted pair (UTP) cable meets all Cat6 TIA/EIA standards, which helps to drastically reduce structural return loss (SRL) and impedance. Each individual pair is bonded together to maintain twist-spacing up to the termination point, a design feature that minimizes Near-End Crosstalk (NEXT) levels. Constructed with high-quality stranded copper conductors and 24 AWG wire, this cable is suitable for fast Ethernet and Gigabit computer networks. The snagless design includes a PVC connector hood that protects the clips during frequent plugging and unplugging while providing additional strain relief. This pink cable is part of a series available in 10 colors to facilitate easy color-coding within a complex network installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Shield Type | UTP |
| Shipping Weight | 0.03 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120009603 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Will the CG00960 work for Gigabit Ethernet networks?
Yes, this Cat6 cable is designed for high-bandwidth applications, including Gigabit computer networks used for data and video distribution.
What is the purpose of the snagless design on this C2G cable?
The snagless boot provides extra strain relief and protects the RJ-45 clips from damage when plugging or unplugging the cable.
Is this patch cable suitable for color-coded network identification?
Yes, this is a pink cable, and the series is available in 10 different colors to assist with network organization.
What are the conductor and wiring specifications for the CG00960?
The cable uses 24 AWG stranded copper conductors and follows the T568B wiring scheme.
How does the construction of this Cat6 cable reduce crosstalk?
Each individual pair is bonded together to maintain twist-spacing right up to the termination point, which minimizes Near-End Crosstalk (NEXT) levels.
