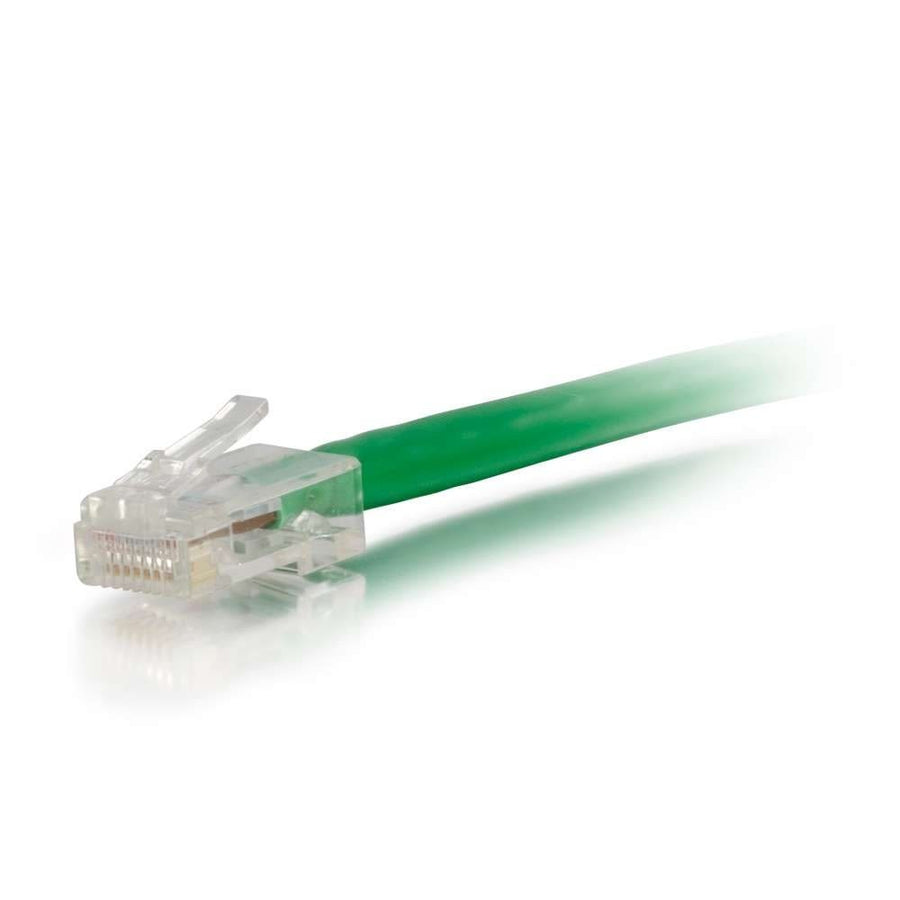

0.5ft (0.15m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Green
0.5 ft (0.2 m) Cat6 UTP non-booted patch cable in green with stranded copper conductors and T568B wiring
The C2G CG00964 is a 0.5 ft (0.2 m) Cat6 Non-Booted UTP Ethernet Network Patch Cable designed for bandwidth-intensive voice, data, or video distribution in fast Ethernet and Gigabit computer networks. This green cable is constructed from high-quality stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain consistent twist-spacing throughout the line, which helps reduce both impedance and structural return loss (SRL). This cable features a T568B wiring scheme and non-booted RJ-45 male connectors on both ends. It is rated for temperatures up to 75°C and uses a standard PVC jacket with a 0.24 in (6 mm) diameter. This specific SKU is part of a wider series of Cat6 Non-Booted Patch Cables that offer various color and length options for organized network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Shield Type | UTP |
| Shipping Weight | 0.02 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120009641 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
What is the wiring scheme for the C2G CG00964?
The C2G CG00964 uses the T568B wiring scheme and features stranded copper conductors.
Is the C2G CG00964 suitable for Gigabit networks?
Yes, this Cat6 patch cable is designed for fast Ethernet and Gigabit networks requiring bandwidth-intensive data or video distribution.
Does this cable have a protective boot on the connectors?
No, the CG00964 is a non-booted cable, which provides a more compact connector profile.
What is the maximum operating temperature for this cable?
This cable is rated for a temperature range up to 75°C.
What other color and length options are available in this series?
This series includes various colors such as Black, Blue, Gray, Orange, Pink, Purple, and Red, with lengths ranging from 0.5 ft up to 150 ft.
