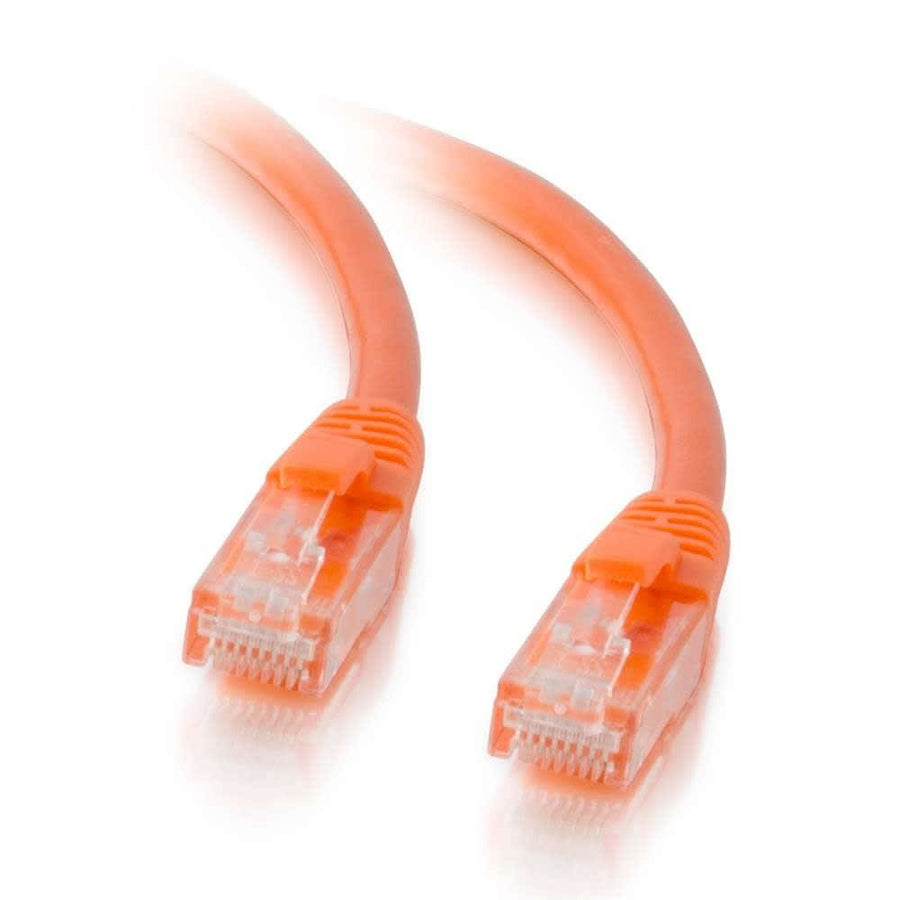

0.5ft (0.15m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Orange
Orange Cat5e snagless unshielded UTP patch cable, 0.5 ft (0.2 m) length, with RJ-45 male connectors
The C2G CG00937 is a 0.5 ft (0.2 m) Cat5e unshielded twisted pair (UTP) patch cable in orange, designed for quick network connectivity and color-coded organization. This cable features a snagless design, which utilizes a PVC connector hood to protect the locking clips during repeated plugging and unplugging. It uses standard RJ-45 male connectors on both ends and follows the T568B wiring scheme. The cable is constructed with 24 AWG stranded copper conductors and a PVC jacket, supporting a bandwidth of 350 mHz. This specific orange SKU is part of a larger series available in up to 10 different colors and various lengths up to 150ft, allowing installers to implement a visual color-coding system across a rack or facility. The 0.21 in (5.3 mm) cable diameter provides a standard profile for dense patching environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Shield Type | UTP |
| Shipping Weight | 0.03 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 14
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120009375 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
Resources
Questions about this part
What is the length and color of the CG00937 cable?
The CG00937 is a 0.5 ft (0.2 m) orange cable, part of a series that includes up to 10 different colors for network organization.
Does this cable feature snagless boots?
Yes, this cable includes snagless connector hoods made of PVC to prevent the RJ-45 clips from breaking during use.
What is the wiring standard for the CG00937?
This Cat5e patch cable utilizes the T568B wiring scheme and features standard RJ-45 male connectors on both ends.
What certifications does this cable carry?
This product is listed with RoHS, REACH, TAA (NDAA 889), Prop 65, and TSCA compliance.
Is this cable shielded or unshielded?
The CG00937 is an unshielded (UTP) cable designed for standard Cat5e performance applications.
