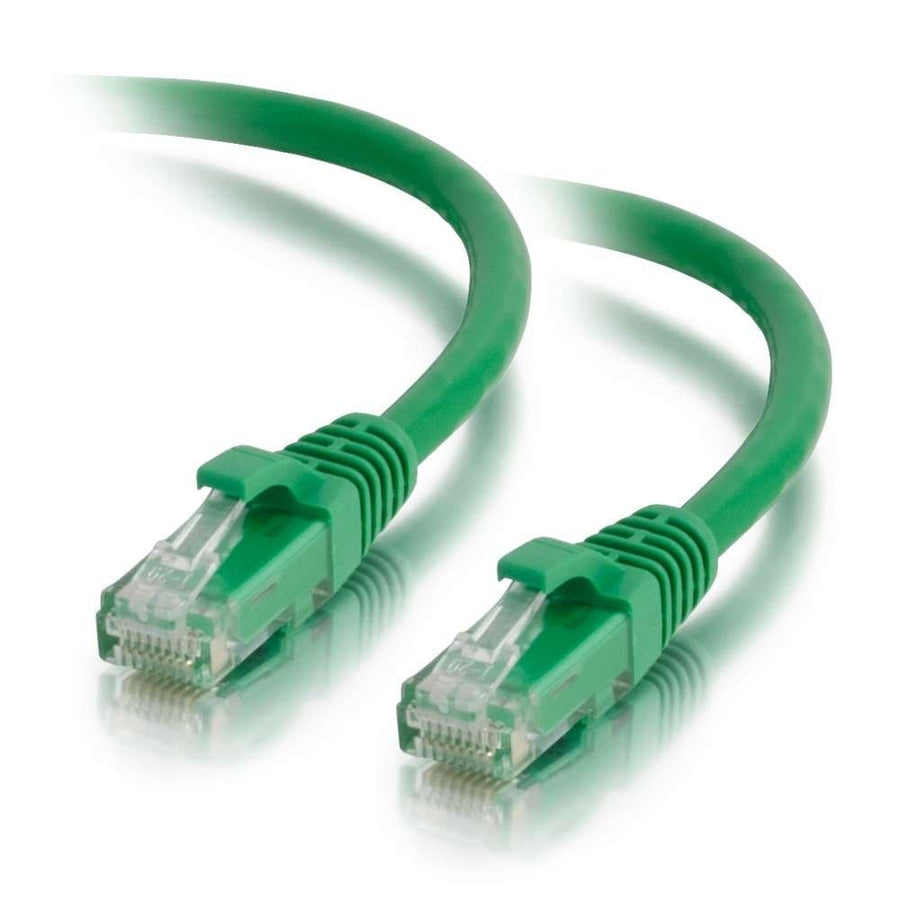

0.5ft (0.15m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable - Green
0.5ft (0.2m) Cat5e Snagless UTP Ethernet Patch Cable in Green with copper stranded conductors and T568B wiring
The C2G CG00934 is a 0.5 ft (0.2 m) Cat5e Snagless Unshielded UTP Ethernet Network Patch Cable in Green, designed for high-bandwidth voice, data, and video distribution applications. This cable utilizes 24 AWG stranded copper conductors to minimize Near-End Crosstalk (NEXT) levels, ensuring reliable performance in fast Ethernet environments. Each individual pair is bonded together to maintain precise twist-spacing throughout the entire line up to the termination point, which reduces impedance and structural return loss (SRL). The cable features a 0.21 in (5.3 mm) diameter and a PVC jacket with a snagless, booted connector design. These molded PVC hoods provide extra strain relief and protect the RJ-45 clips from damage during frequent plugging and unplugging in dense network environments. This T568B wiring scheme cable is compliant with TIA/EIA standards and is built to handle bandwidths of up to 350 mHz.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bandwidth | 350 mHz |
| Cable Diameter | 0.21 in (5.3 mm) |
| Cable Length | 0.5 ft (0.2 m) |
| Shield Type | UTP |
| Shipping Weight | 0.03 lbs (0 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
All other specifications 15
| Cable Type | Cat5e |
| Category Performance Application | Cat5e |
| Color | Green |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120009344 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Will this C2G CG00934 cable work for high-speed data networks?
Yes, it is a Cat5e cable designed for bandwidth-intensive voice, data, or video distribution applications up to 350 mHz.
What is the wiring configuration for the CG00934 patch cable?
The CG00934 follows the T568B wiring scheme and uses 24 AWG stranded copper conductors.
Does the snagless design prevent clip damage?
Yes, the molded PVC snagless boot protects the RJ-45 clips from being snapped or damaged during installation and removal.
What certifications does this Cat5e cable carry?
This cable is CE, REACH, and RoHS compliant, and is also listed as NDAA 889 compliant.
Are there other lengths or colors available for this series?
Yes, this series includes other lengths up to 150ft and is available in 10 different colors for network organization.
