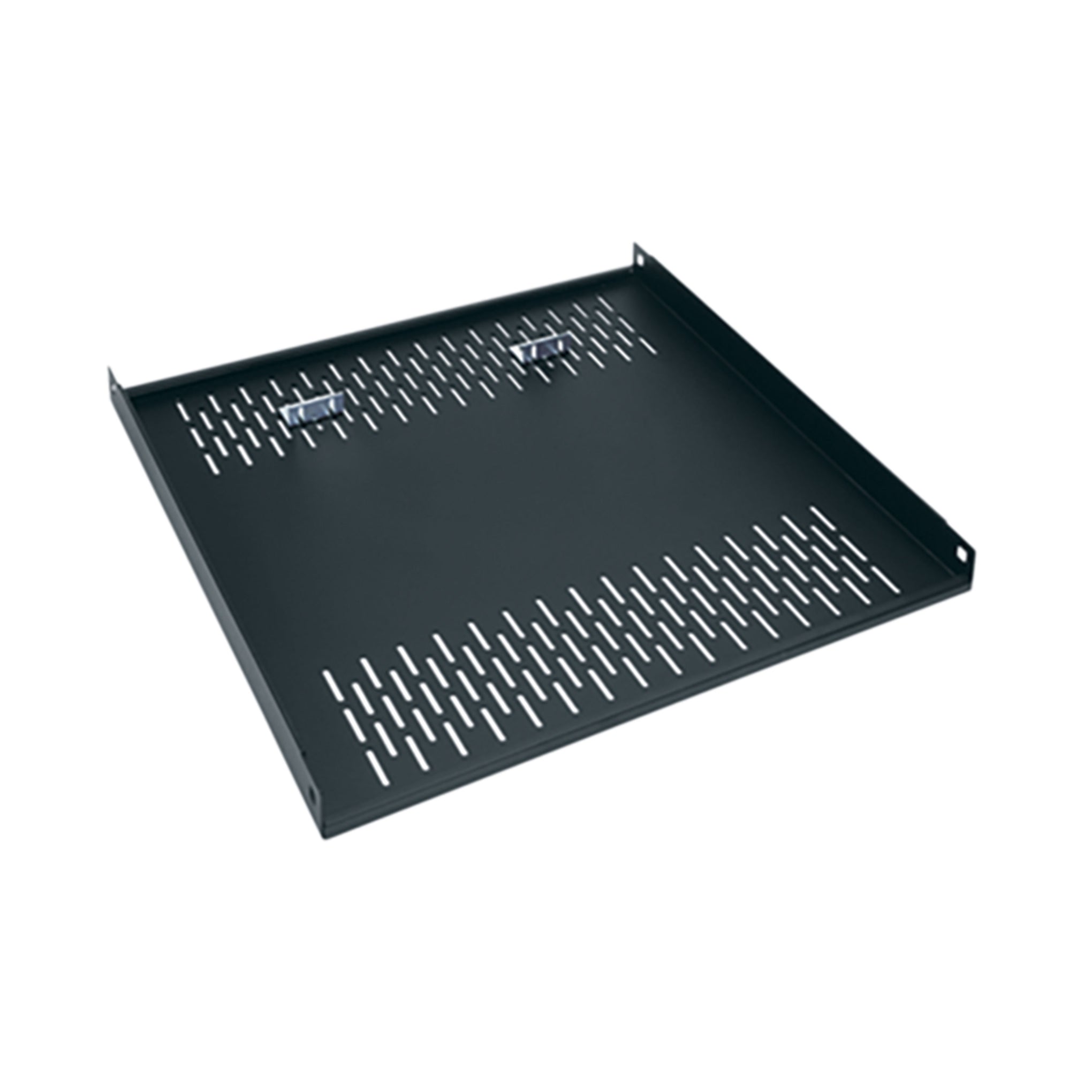

This 4 point mount shelf has been purpose designed to fit in Slim 5 and AXS equipment racks, and features full-depth front and rear rackmounting to provide a sturdy shelf for non-rackmount components. The models designated for the Slim 5 and AXS mount to the sides of the rackrail. Two handy “L” brackets are included to help position equipment. Constructed from 16-gauge steel, includes mounting hardware and finished in a durable black powder coat.

• Provides a secure, high-capacity shelf for non-rackmount components
• Only fits 20” deep AXS and Slim 5 racks
• Mounts to sides of rackrail (not threaded face) to maximize shelf area
• Steel construction, finished in black powder coat; includes hardware

Specifications:
• Length: 18.57
• Height: 1.5
• Width: 18.8
• Warranty: Not Applicable
• Weight Capacity: 250 lbs (113.4 kg)
