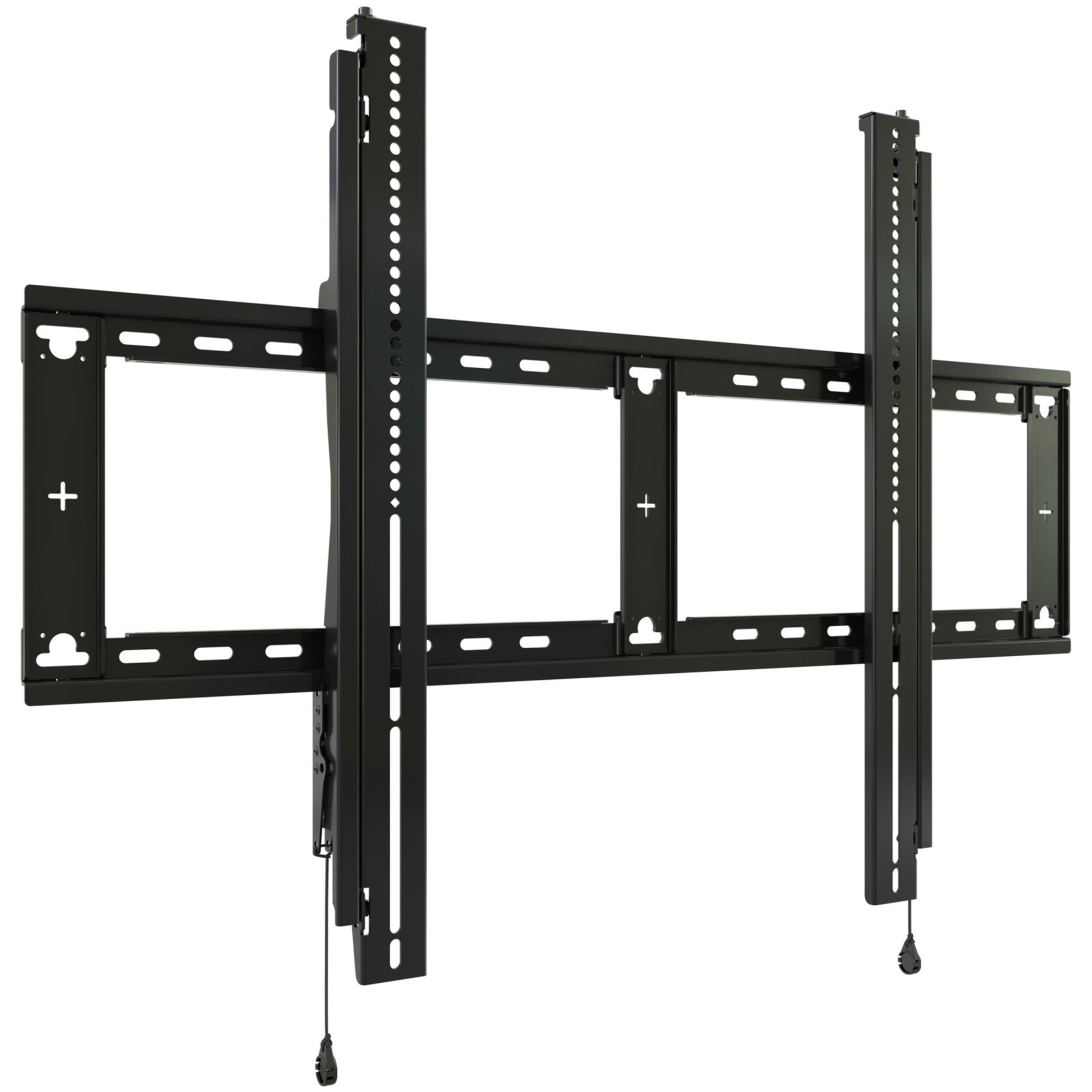

The Fit series RXF3 is an extra-large fixed display wall mount for 49" to 98" typical display sizes and supports mounting patterns up to 960 x 650 mm. This next-generation design features 0.75" (19 mm) post-installation leveling, robust wall plate design supporting up to 250 lbs (113.4 kg), 1.5" (38 mm) low-profile depth, and UL and TUV safety standard approvals.

• Low profile 1.5" (38 mm) depth facilitates ADA compliance for typical AV design requirements
• Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included
• Open wall plate allows for flexible positioning around power and data wall boxes
• Supports display mounting patterns up to 960 x 650 mm
• Re-designed rigid wall plate supports up to 250 lbs (113.4 kg) and additional mounting slots for improved installation experience
• Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
• Easy access magnetic quick-store release pullcords
• Kickstand for easy access to power and signal connections
• Theft deterrent security option (not included)
• UL and TUV safety standards compliant

• UL Listed, TUV

Specifications:
• Height: 27.05
• Width: 38
• Warranty: Not Applicable
• Color: Black
• Weight Capacity: 250 lbs (113.4 kg)
