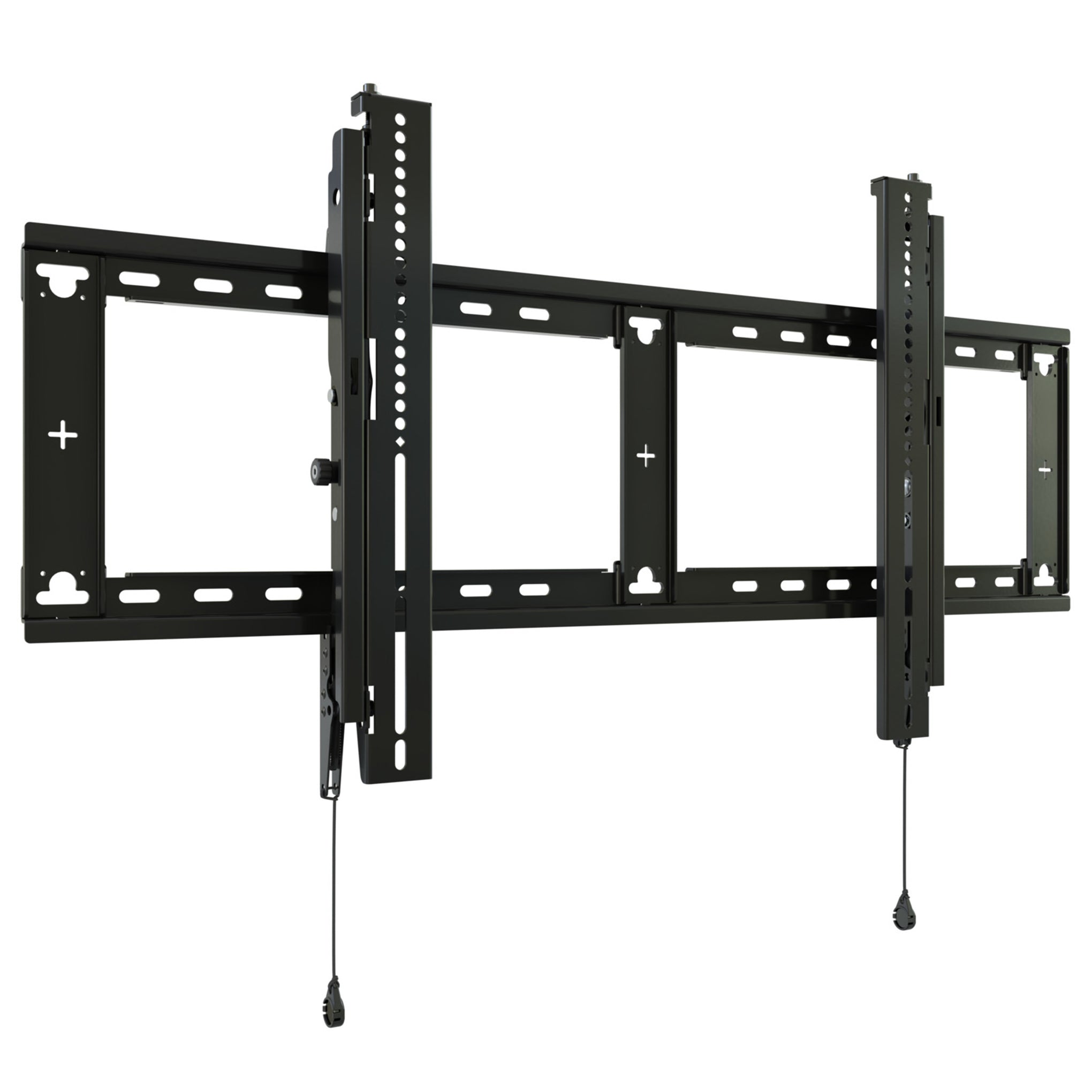

The Fit series RLT3 is a large tilt display wall mount for 43" to 86" typical display sizes and supports mounting patterns up to 915 x 450 mm. This next-generation design features 0.75" (19 mm) post-installation leveling, robust wall plate design supporting up to 200 lbs (90.7 kg), 2" (51 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standard approvals.

• Low-profile 2" (51 mm) depth facilitates ADA compliance for typical AV design requirements
• Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included
• Display can be tilted up to 12° to set the optimal viewing angle
• Open wall plate allows for flexible positioning around power and data wall boxes
• Supports display mounting patterns up to 915 x 450 mm
• Rigid wall plate supports up to 200 lbs (90.7 kg) and has additional mounting slots for improved installation experience
• Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
• Easy access magnetic quick-store release pullcords
• Kickstand for easy access to power and signal connections
• Theft deterrent security options (not included)
• UL and TUV safety standards approved

• UL Listed, TUV

Specifications:
• Height: 19.18
• Width: 38
• Warranty: Not Applicable
• Color: Black
• Weight Capacity: 200 lbs (90.7 kg)

Resource:
• Data CAD Drawing
• Data Sheet PDF
• Data Sheet PDF
• Data Sheet PDF
• Resources ZIP Folder
• Data Sheet PDF
