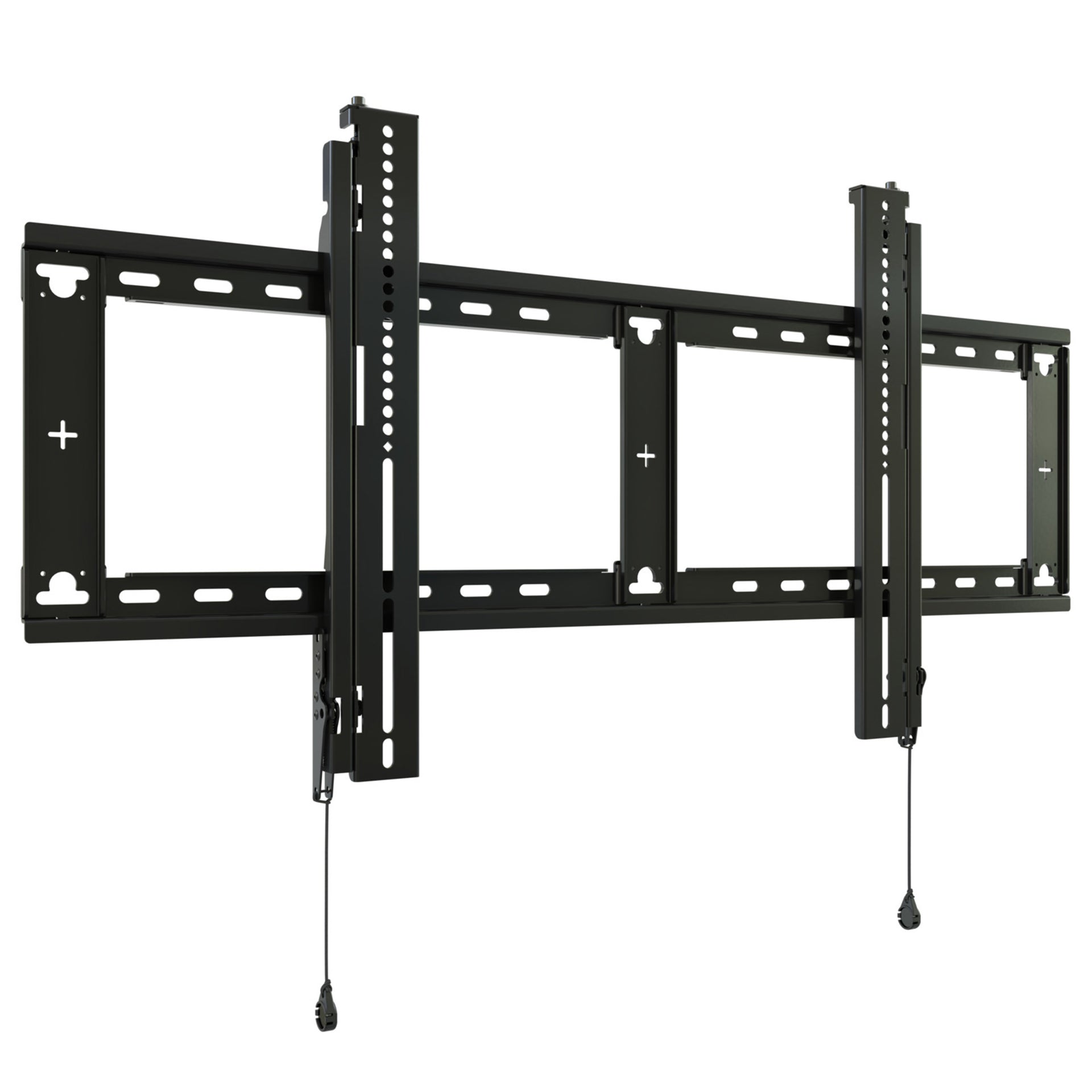

The Fit series RLF3 is a large fixed display wall mount for 43" to 86" typical display sizes and supports mounting patterns up to 960 x 450 mm. This next-generation design features 0.75" (19 mm) post-installation leveling, robust wall plate design supporting up to 200 lbs (90.7 kg), 1" (25 mm) low-profile depth, and UL and TUV safety standard approvals.

• Low profile 1" (25 mm) depth facilitates ADA compliance for typical AV design requirements
• Easy to reach 0.75" (19 mm) post-installation leveling screw and 10" (254 mm) ball end hex-key included
• Open wall plate allows for flexible positioning around power and data wall boxes
• Supports display mounting patterns up to 960 x 450 mm
• Re-designed rigid wall plate supports up to 200 lbs (90.7 kg) and has additional mounting slots for improved installation experience
• Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
• Easy access magnetic quick-store release pullcords
• Kickstand for easy access to power and signal connections
• Theft deterrent security options (not included)
• UL and TUV safety standards compliant

• UL Listed, TUV

Specifications:
• Height: 19.19
• Width: 38
• Warranty: Not Applicable
• Color: Black
• Weight Capacity: 200 lbs (90.7 kg)
