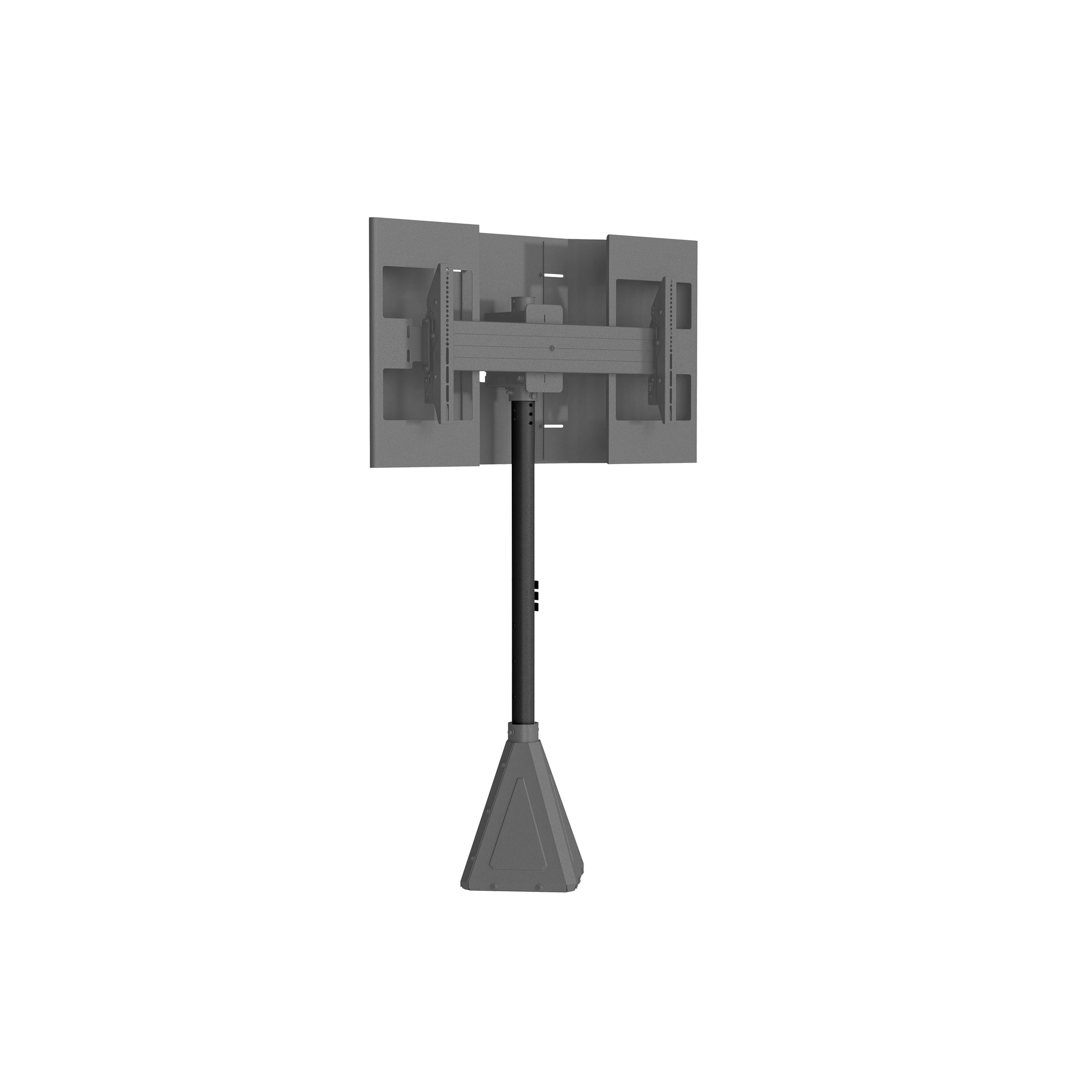

Designed to work with the OLC Outdoor Ceiling and Pedestal Mounts. Built to withstand rain, humidity and ocean air, sun exposure and high winds. Wind-compatible to 2000 ft-lbs maximum moment force – used in engineering calculations to ensure a wide range of install configurations meet local safety requirements. Contact Legrand AV Customer Care for additional information. The ODAC0506B will flex under extreme wind loads. By engineering the system to avoid catastrophic failure, the system mitigates potential damage to facilities. Column provides 12" of adjustment ranges at 1" increments between 5 and 6 feet (152.4 – 182.9 cm) for ceiling and floor installations.

• 12" of adjustment ranges at 1" increments
• Weatherproof design meets UL 2442 Part 2 – Suitable for Outdoor Use with corrosion resistant paint, UV-rated plastics and stainless-steel hardware
• Only works with Chief outdoor rated mounts and plates.

• UL Listed

Specifications:
• Length: 4
• Height: 3.5
• Width: 66.75
• Warranty: Not Applicable
• Color: Black
• Weight Capacity: 300 lbs (136 kg)
