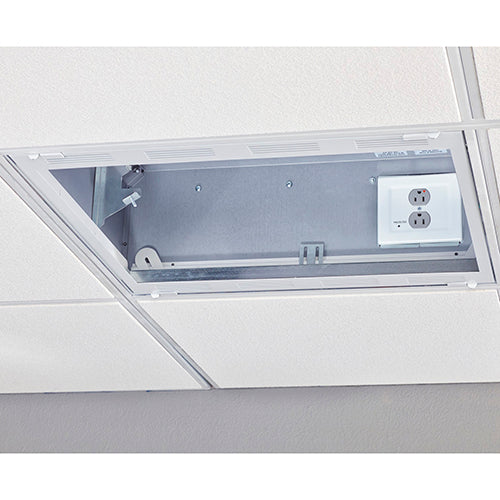

The CMS492P2 conceals AV equipment above a 2' X 2' ceiling tile to provide a clean professional look for classrooms and conference rooms.

Includes a high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring non-sacrificial multi-stage filtration and surge protection. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.

• Detachable power housing can be pre-installed with electricians on site and assembled to the storage box at a later time
• Inside the box or facing the room
• Up to 2 single gang or 1 dual gang outlet
• 4 nested knockouts for 1-1/4"", 1"", & ½"" diameter conduit
• Built in ventilation
• AV tray supports a variety of AV components
• Ships with 1 shelf, 2^nd shelf sold separately see CMSUNV2
• 1 RU rack rail brackets sold separately, see CMS1RU
• Overall weight capacity 100 lbs (45 kg)
• 50 lbs (22 kg) for projector ceiling plate
• 25 lbs (11 kg) per shelf location
• Ships with speed connect installation hardware
• Lightweight construction, one man installation
• UL evaluated for use in Air-Handling Spaces as defined by Article 300.22, Sub-clause (C) of the NEC
• Non-volatile spike protection with LED power indicator
• Non-sacrificial multi-stage technology
• Non-current limiting design passes full power on a regular circuit; reduntant protection circuits
• Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightening strikes and electronic noise events that can cause gear degradation and downtime
• TAA Compliant

Surge and Filter Module

• Non-volatile spike protection with LED power indicator
• Non-sacrificial multi-stage technology
• Non-current limiting design passes full power on a regular circuit; redundant protection circuits
• Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime
• Line filter reduces common and differential mode noise by up to 40 dB
• Rated for 125V~, 60Hz, 15 A
• 1875 watt maximum
• Ferrite toroid based EMI Filter
• Withstand rating of 240 VAC continuous without damage or loss of protection
• Output: 15A, 1875 W continuous

• TUV, UL Listed

Specifications:
• Height: 8
• Width: 24.97
• Warranty: Not Applicable
• Color: White
• Weight Capacity: 100 lbs (45.4 kg)
