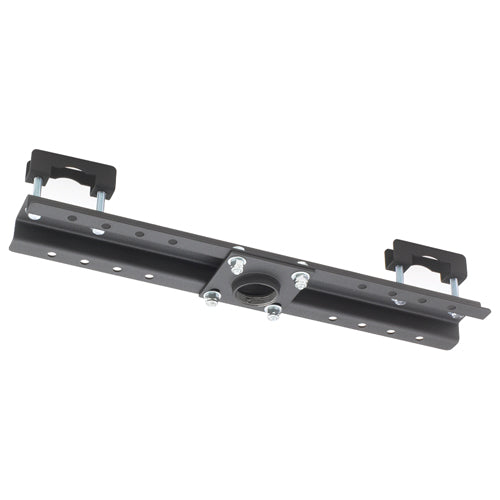

Spans truss systems for easy overhead installation of equipment in buildings and exhibit booths.

• Spans truss systems and provides lateral shift capability
• Compatible with 1.5" NPT extension columns
• Allows cable routing through the column
• Span Distance: 5-18" (127-457 mm)
• Clamp Range: up to 2" (51 mm) OD or 1.9" (48 mm) square tubing
• TAA Compliant

Allows smooth and safe axis rotation 0-330° and provides the ability to set swivel.

• Easy to install
• The best quick rotation solution for projecting on more than one wall
• Connects two extension columns with swivel capability
• Swivel range 0-330° (with limited adjustment)
• TAA Compliant

This simple accessory allows for projectors and flat panel TV's to hang level from an angled suspended ceiling. Designed for use with the CMS440.

• Designed for suspended ceilings that are angled up to 45^o
• Designed for use with the CMS440
• Compatible with the Chief CMA473 ceiling storage box
• Includes additional cabling to ensure extra stability
• Can use CMA643 escutcheon ring to clean up tile appearance in ceilings up to 36^o
• TAA Compliant

• UL Listed, TAA

Specifications:
• Height: 1.8
• Width: 4
• Warranty: Not Applicable
• Color: Black
• Weight Capacity: 250 lbs (113.4 kg)

Resource:
• Data Sheet PDF
• Data Sheet PDF
• Data CAD Drawing
