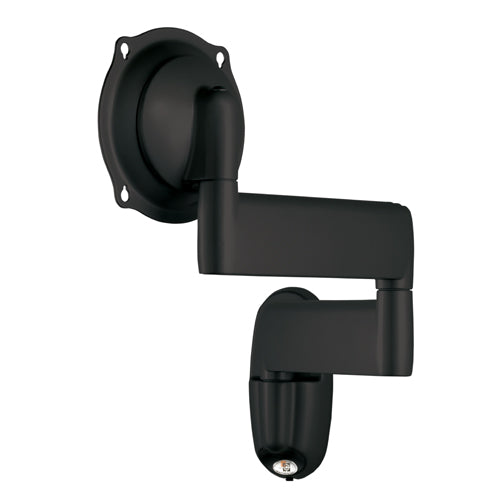

A low-profile mount designed to be hidden in the wall.

Must order MAC501 In-Wall Accessory!

• Ships fully assembled
• Ready for fast installation into a MAC501 In-Wall Accessory

• Low profile, designed to ensure that the mount remains concealed behind the screen
• Centris Technology provides smooth, fintertip tilt in all directions
• Used with the MAC501B installed in between 16" on center studs.
• No header or footer necessary
• Smooth extension up to 21" (538 mm) to achieve ideal viewing angle
• Back of TV sits close to the wall (0.1" for VESA 100 x 100mm screens and 0.65" for screens having up to 400 x 400mm patterns)
• VESA® Compatibility: JWDIW210: up to 200 x 200mm, JWDIWU: up to 400 x 400mm
• Require MAC501B. Depth and Extension do no include interface bracket (adds 0.5 - 1.5")

Note: Must order MAC501 to complete installation

Specifications:
• Length: 17
• Height: 3.5
• Width: 25.75
• Warranty: Not Applicable
• Color: Black
• Weight Capacity: 75 lbs (34 kg)
