Description

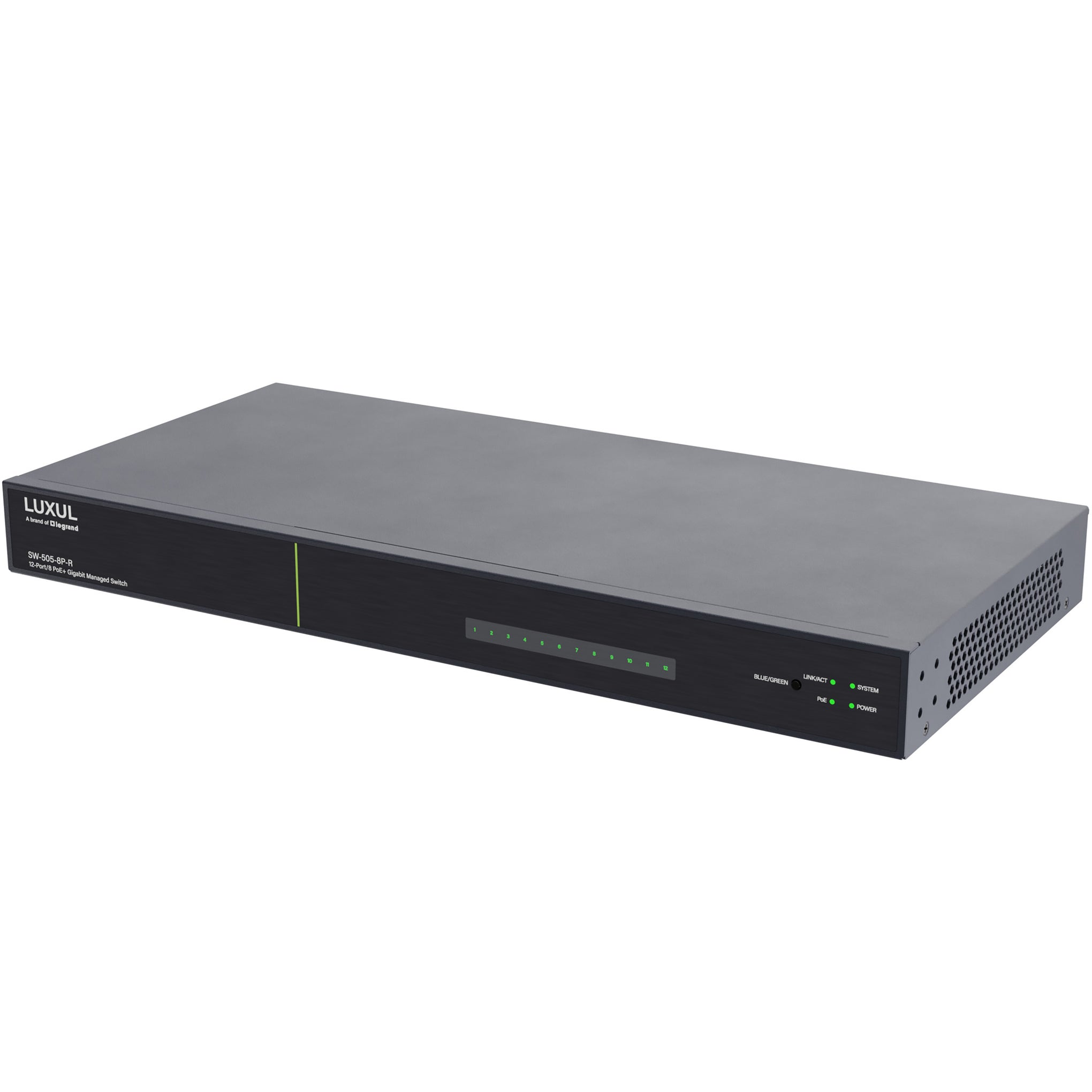

The SW-505-8P-R includes eight 1-Gigabit PoE+ Ethernet ports, two non-PoE Ethernet Ports, and two 1-Gigabit SFP expansion ports. Both 1 Gb SFP ports can be aggregated for a connection speed of up to 2 Gb. The 8 PoE+ ports deliver both gigabit data and power over a single cable to 802.11af/at-compliant devices, with a maximum of 30W per port. For separately powered devices, these ports deliver network connectivity only. The total power budget is 130W for all PoE+ ports combined. The advanced Layer 2/Layer 3 features an easy-to-use management interface that simplifies configuration and make this switch ideal for use in single-switch AVoIP environments. Setup of IGMP/Multicast on a per-port basis is easy, improving the setup and reliability of running audio and video over the network simultaneously. This model also features a fanless design and is perfect for conference rooms, offices, or theaters where silent operation is needed. Watch Video: Meet our SW Series Managed PoE+ Switches
 | Category Cable Connectivity |
Features
- Refreshed, simplified user interface
- Layer 2/Layer 3 capabilities (static routing included)
- Multicast/IGMP snooping and querying feature
- Per port unregistered flooding
- 802.1Q VLAN and QoS support including DCSP
- Dante and AES67 compatibility
- AV-over-IP compatible
- PoE Self-Healing with auto-recovery and power scheduling
- 8 PoE+ powered capable ports
- 130 Watt total PoE budget
- Rear-facing ports
- Low noise, variable speed fans
- 2 RJ45/SFP Combo Ports
- Dynamic PoE allocation
- Rack Mountable
- Three Year Limited Warranty
This Package Includes:Â
- 8 PoE+ | 2 RJ45 | 2 SFP Ports - Gigabit L2/L3 Managed Switch - Gigabit L2/L3 Managed Switch
- Power Cord
- Rack Ears and Set of Four (4) Rubber Feet
- Quick Install Guide & Regulatory Documentation
Certifications & Specifications
- FCC, IC, CE, CE-EMC, CE-LVD, CB Report, RCM, VCCI, RoHS, UL, cUL, TAA, UKCA, NDAA 889
-
Specifications:
- Weight: 5.5
- Length: 17.4in
- Height: 1.75
- Width: 14.75
- Warranty: Not Applicable
