Description
This Tempo™ Flat Panel Wall Mount install and commissioning kit can be ordered separately and delivered after wall finishing is complete to add flanges, display mount and small-device storage plates. NOTE: For a complete system installation the Tempo Flat Panel In-Wall Boxes and Stud Tabs Kit (FPIWMKIT1) is required, purchased separately.
An infinite number of horizontal mounting patterns are compatible with the system to accommodate extra-large and some ultrawide displays because storage boxes can be set as far apart as needed to align the flat panel with the mount. Mounting patterns can extend up to 650 mm tall with the FHB5174 adapter bracket (sold separately).
The Tempo™ Flat Panel In-Wall Mount System ships with two 15x10" Lever Lock™ plates, offering a minimum clearance for 1 RU of AV equipment. Place small devices where you need them thanks to lateral shift flexibility within the storage boxes. Lever Lock plates are compatible with Middle Atlantic® Forward Small Device Mounting Clamps to quickly secure devices in place.
Simplify the installation process with included hardware and toggle anchors. New display hardware bags include M8x50 screws, commonly needed for installation of popular displays. At-a-glance identification of end-user touchpoint screws in silver from assembly screws in black for easier end-user training after commissioning.
VESA Mounting Pattern: Min 200 x 100 mm, Max 1500 x 450 mm. Lateral Shift: Yes. Display mounting interfaces can travel the width of the in-wall back box. Drywall Thickness: 0.5" to 1.25"

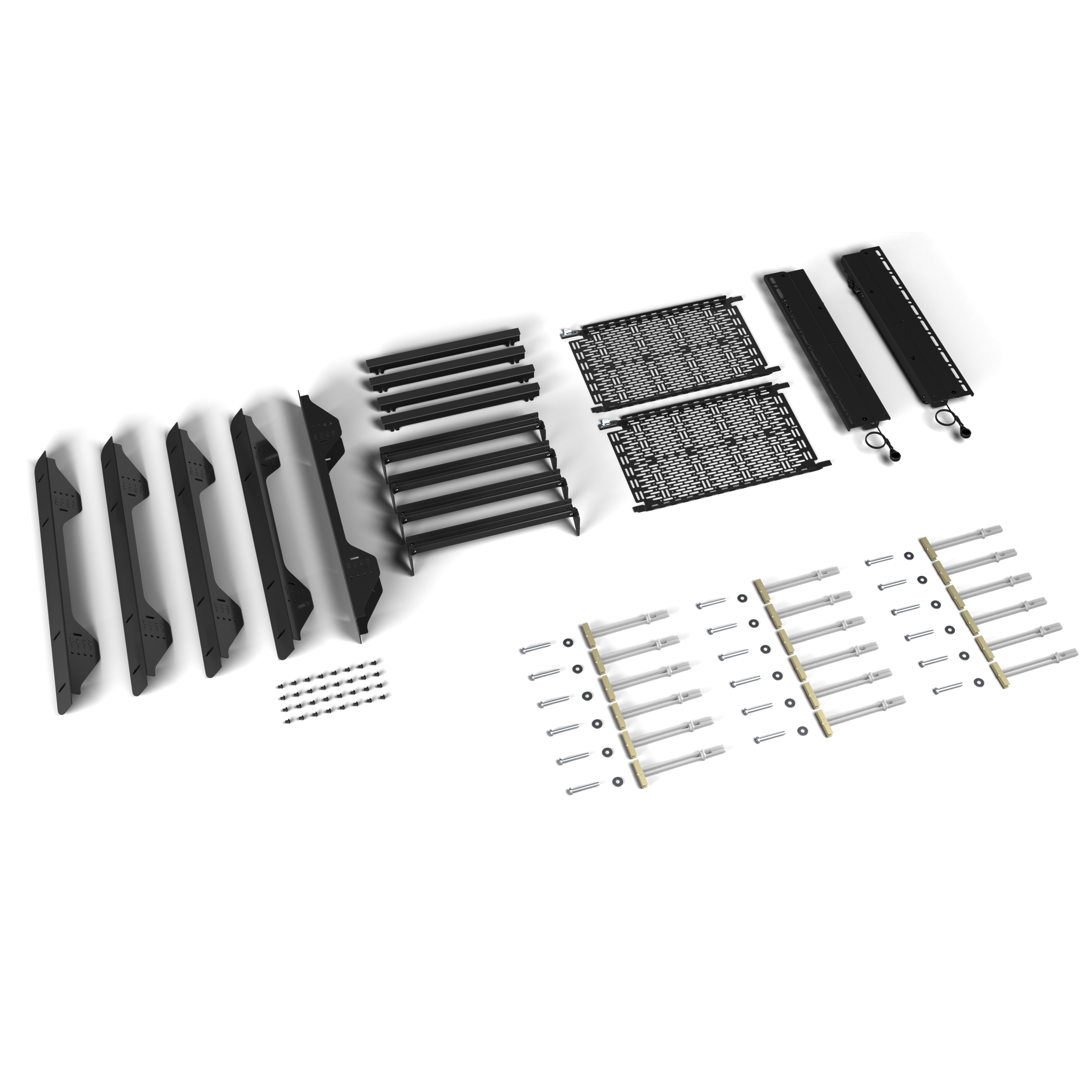

Kit Includes:
- (2) Interfaces
- (4) Side flanges
- (1) Saddle flange
- (4) Top/bottom flange
- (4) In-wall rail assembly
- (2) Lever Lock panel
- (8) Cable tie
- (1) 1/8" Allen key
- (2) Lever Lock rivet
- (4) Cable tie mount
- (32) #10-24 x ¼" button head cap screw
- (3) Toggler anchor hardware bag
- (1) 1/8" Hex ball-end screwdriver
- (1) Display mounting hardware bag
- (1) Installation Manual
Certifications & Specifications
- UL 2442, cULus
-
Specifications:
- Length: 13.88
- Height: 8
- Width: 27.5
- Warranty: Not Applicable
- Color: Black
- Weight Capacity: 250 lbs (113.4 kg) when installing to 20 gage structural steel studs, 200 lbs (90.7 kg) when installing to 25 gage steel studs
