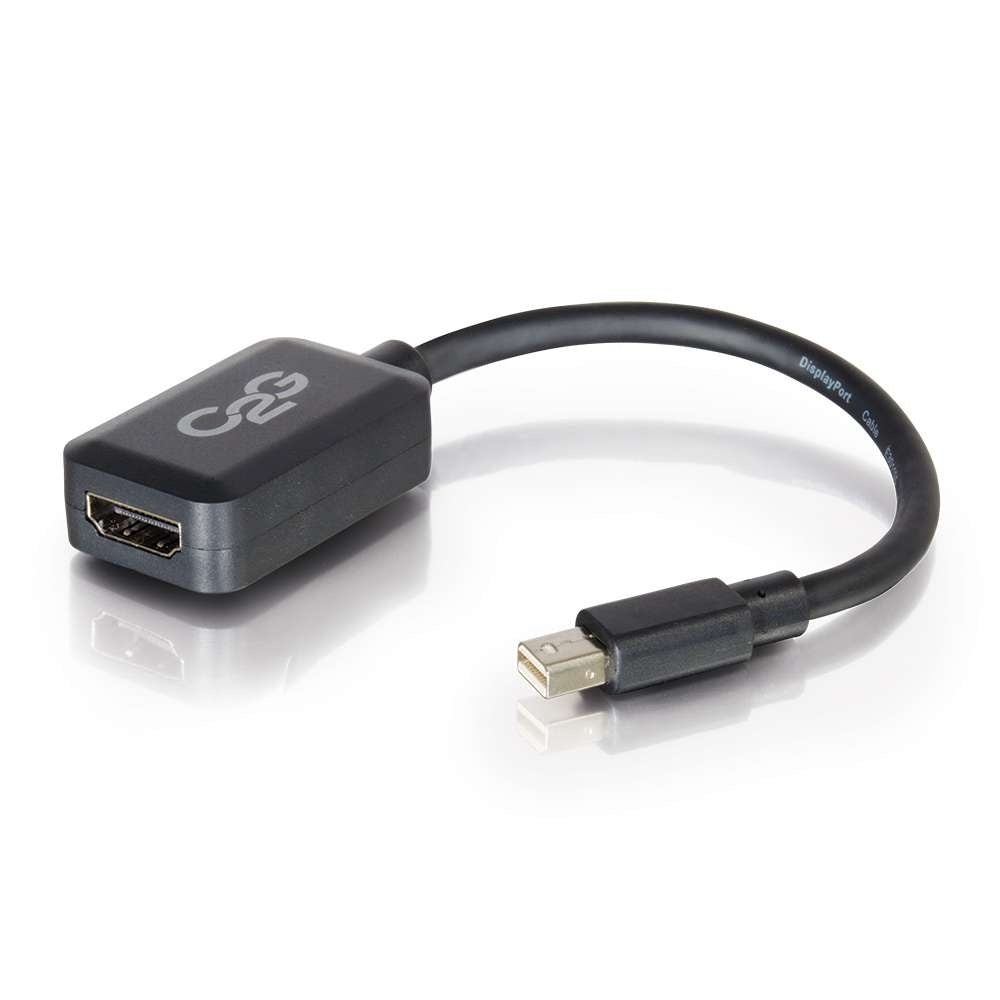

This adapter converter is an ideal solution for adapting the Mini DisplayPort or Thunderbolt 2 output of a small laptop or tablet so that it may be connected to a HDTV or projector which accepts a HDMI input. This adapter converter carries a digital audio/video signal, supports up to a 1080p resolution and meets the requirements of high performance applications. This adapter converter is a perfect accessory for Microsoft® Surface® products and other leading laptops.

Additional Technical Specs

Electrical Specifications
•Voltage Rating: 30v
•Conductor Resistance: @ 20°C max
•Insulation Resistance: 10MΩ/km
•Time Delay: 5.2ns/m (max)
•Attenuation:
5.02dB@100-450MHz 7.69dB@1GHz
12.595dB@2GHz 17.495dB@3GHz
22.395dB@4GHz 27.295dB@5GHz
32.195dB@6GHz 37.095dB@7GHz

Physical Specifications:
•Operating Temperature: 0°C to 50°C
•Storage Temperature: -25°C to 70°C
•Approvals: CE

Conductor (2 Conductor, 5 Pair):
•Conductor: 32AWG (7/0.08TC)
•Insulation: FM-PE, ID:0.63±0.05mm
•Color: White/Brown, White/Red,
White/Orange, White/Green
White/Blue
•Drain: 32AWG (7/0.08TC)
HD-PE ID:0.63±0.05
•Shield: AL-Mylar Wrap
Coverage—100%

Conductor (5 Conductors):
•Conductor: 32AWG (7/0.08TC)
•Insulation: HD-PE, ID:0.5±0.05mm
•Color: Red/Orange/Yellow/Green/ White

Overall Cable:
•Jacket: PVC
•Shield: AL-Mylar—Coverage 100%
• Braid—16/9/0.12
•Drain: 2:30AWG (7/0.08 BC)
•OD: 5.2±0.2

• REACH, ROHS, Prop 65, TSCA, NDAA 889

Specifications:
• Width: 8.00
• Warranty: 5 Years
• Color: Black
• Connector 1: Mini DisplayPort Male
• Connector 2: HDMI Female
