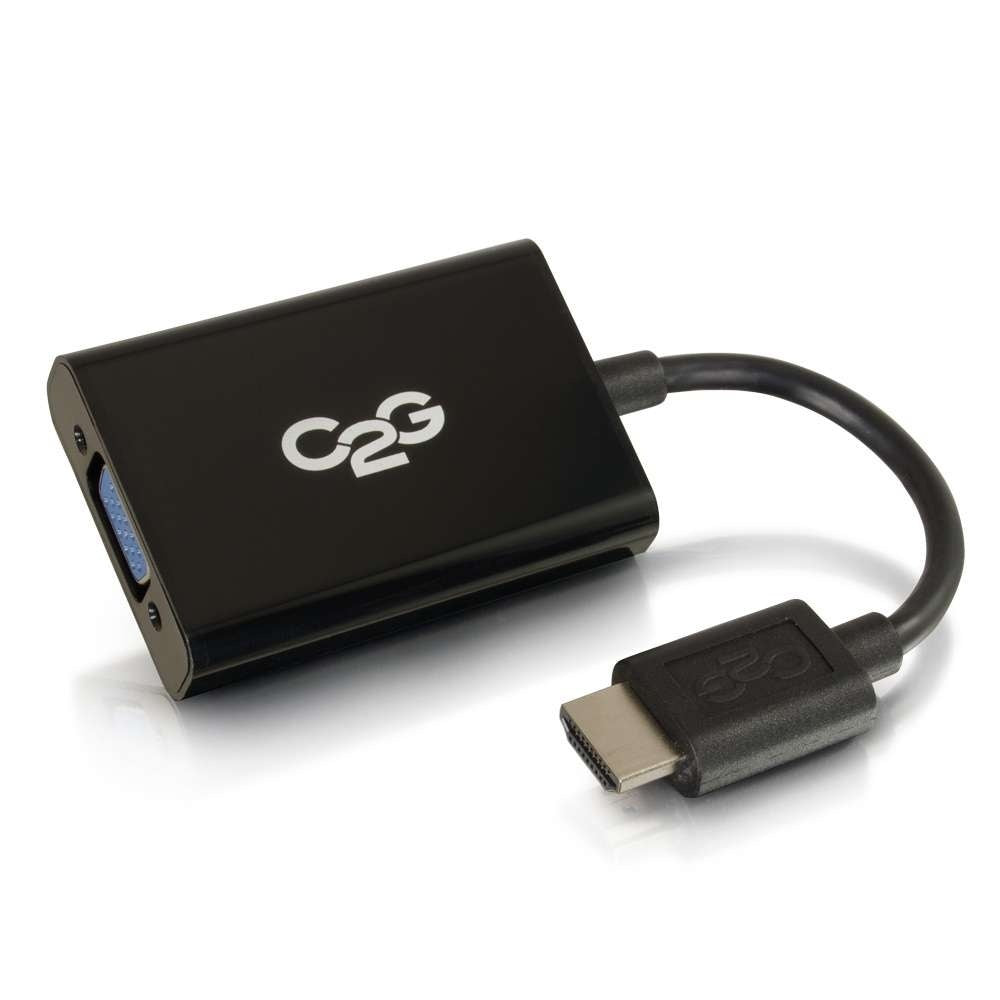

This adapter converter dongle is an ideal solution for connecting the audio/video output of a HDMI-enabled Chromebook or laptop to a VGA display and set of speakers. The dongle design of this adapter converter does not cause the stress on the port of a small laptop that is common when using a box style adapter. Up to a 1920x1080 video resolution is supported, allowing this adapter converter to meet the needs of a high performance application. Connect this adapter directly to the output of a laptop and use a VGA and Stereo Audio cable to connect to a display.

Additional Technical Specs

Electrical Characteristics
• Resolutions Supported: 480i/480p, 576i/576p, 800x600, 720i/720p, 1280x1024, 1600x1200, 1080i/1080p
• Voltage: 5V, 500mA (VGA models)
• Voltage Rating: 30V
• Pixel clock rate: Up to 165MHz
• Impedance : 100±5
• Intra-pair skew: 15ps/m max

Physical Characteristics
• Minimum Bend Radius: 12mm
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -10° to 40° C
• Adapter Length: 203mm
• Approvals: CE

Conductor (Qty. 3)
• Conductor Type: 34AWG 7/0.06TCS x15 Tinned Copper
• Insulation: Foam-PE, 0.5±0.05
• Shield: AL Wrap; Braid, 16/10/0.08TCS 85% Coverage
• Drain: 34AWG 7/0.127B

Overall Cable
• Jacket: PVC, Black

• REACH, ROHS, Prop 65, TSCA, NDAA 889

Specifications:
• Width: 8.75
• Warranty: 5 Years
• Color: Black
• Connector 1: HDMI Male
• Connector 2: VGA Female, 3.5mm Stereo Female
