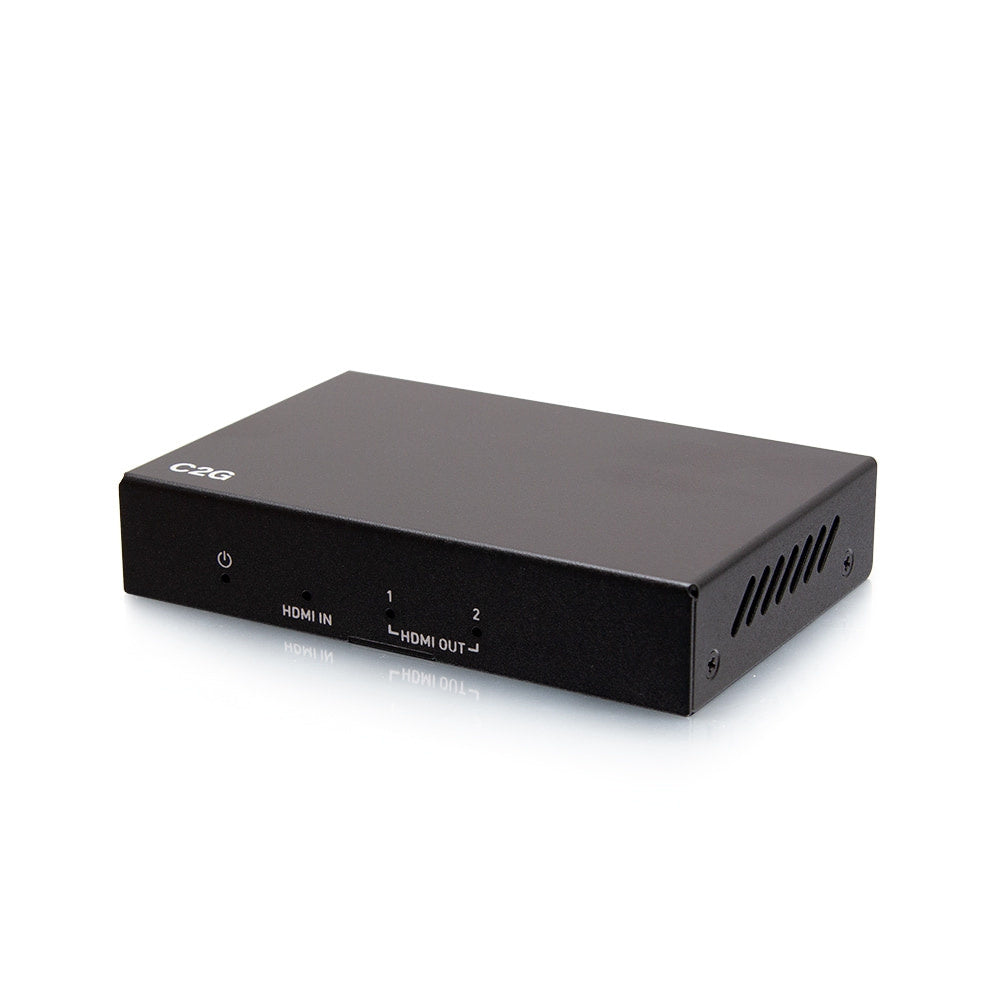

The 2-Port HDMI Distribution Amplifier Splitter is a 1-Input 2-Output splitter supporting up to 4K video. This splitter utilizes the HDMI 2.0 standard and is a perfect solution for connecting a computer, Blu-ray™ player, gaming console, media server, or A/V receiver to two HDMI displays.
The HDMI distribution amplifier splitter is HDCP 2.2 compliant and supports exceptional 4K Ultra HD resolutions up to 4096 x 2160 at 60hz, handling total HDMI data rates up to 18Gbps.
• Power Adapter: Electrical: Input: 100-240VAC, 50-60Hz, 0.4A; Output: 5VDC, 1A
Signal Specifications
• Video Resolution: Up to 4K resolution at 60Hz, 4:4:4
• Video Format: Supports Multiple HDR formats including HDR10 and Dolby Vision
• Audio Format: Supports PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
Physical Specifications
• Operating Temperature: 0°C to 45°C; 10-90% RH (Non-Condensing)
• Storage Temperature: -20°C to 70°C; 10-90% RH (Non-Condensing)
Physical Characteristics
• Input: HDMI Type A Female, Nickel Plated
• Output: (x2) HDMI Type A Female, Nickel Plated
• Amplifier Dimensions (LxWxH): 100x65.2x20mm
• Amplifier Dimensions with Mounting Brackets (LxWxH): 143x65.2x20mm
• DC Jack: OD=6.3mm, ID=2.0mm
• Power Adapter Dimensions (L×W×H): 65x39.50x35.7mm
• Power Adapter Cable Length: 1800±50mm
• QC Inspection: 1080p and 4K 60Hz 4:4:4 video/ image test on all ports, and accessory functionality
• 1x 5V/2A Power Adapter with UK, EU & AU Plug
• 2x Mounting Brackets
• 1x User Manual
Certifications & Specifications
- REACH, ROHS, Prop 65, TSCA, NDAA 889
-
Specifications:
- Length: 0
- Height: 0
- Width: 6.30
- Warranty: 5 Years
- Color: Black
- Connector 1: HDMI Female
- Connector 2: 2HDMI Female
