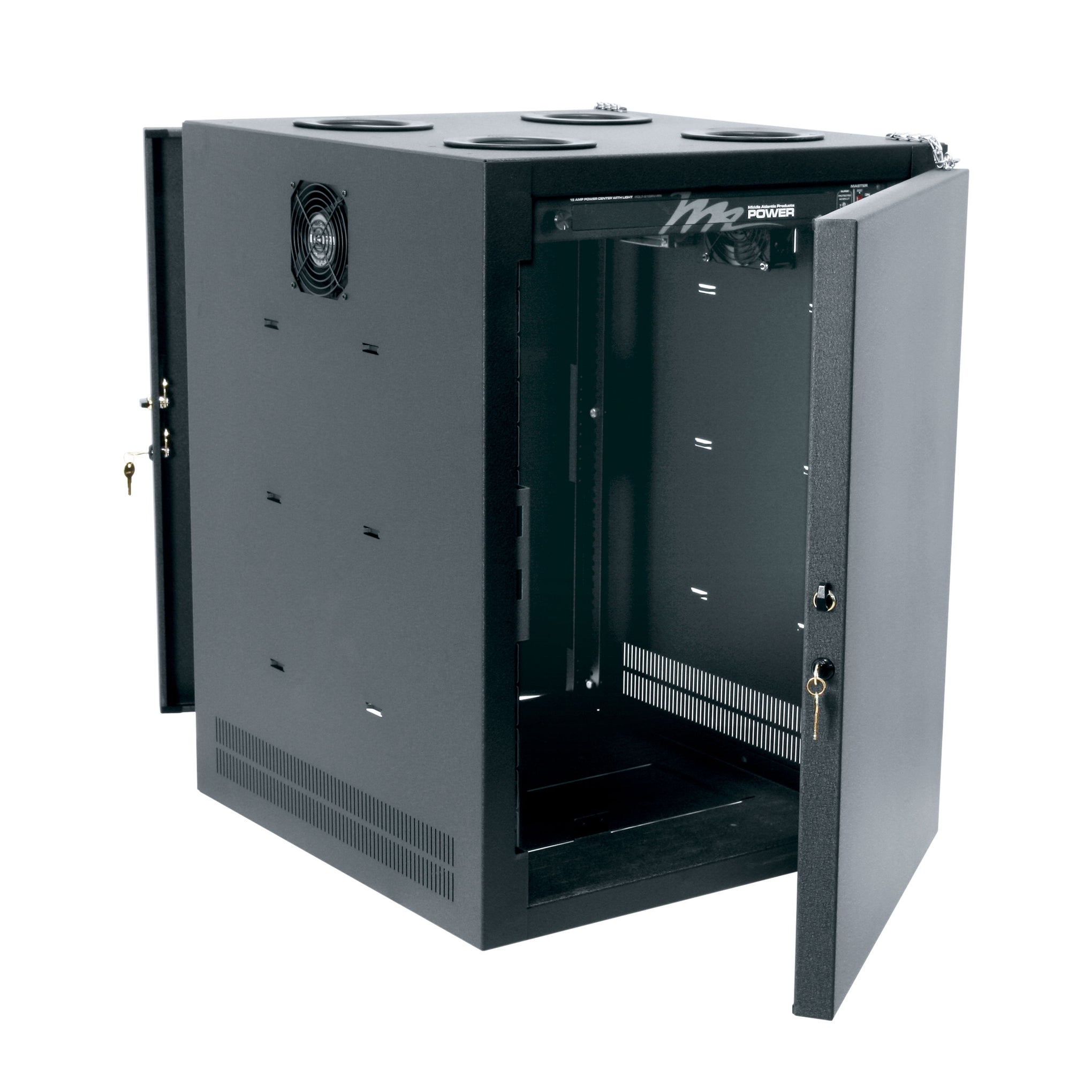

Choose the IDF when rack mounting hubs, routers and other equipment overhead in warehouses, retail outlets or any larger, open location. Mounts to building truss or Unistrut® beams using 1/2" threaded rod, or directly to Unistrut beams.  A great solution for distributed systems.

• 12RU
• 24" Deep
• Mounts to building truss or Unistrut® beam using threaded rods (not included)
• Can also mount directly to Unistrut® beam
• Includes a safety lanyard to ensure a secure installation
• Ships with included rackmount power distribution unit, model # PD-915R
• Dual exhaust fans extend equipment life
• Aluminum bottom plate for mounting wireless antennae, dome cameras, and more
• Multiple UHF/VHF antenna knockouts on the bottom of the enclosure
• Rack top includes four integral gland grommeted 4" cable pass-throughs
• Standard solid front and rear locking and latched doors with safety chains
• Standard front and rear adjustable 10-32 threaded rackrail with numbered spaces

• UL Listed, TAA

Specifications:
• Length: 21
• Height: 21
• Width: 23.52
• Warranty: Not Applicable
• Weight Capacity: 150 lbs (68 kg)
