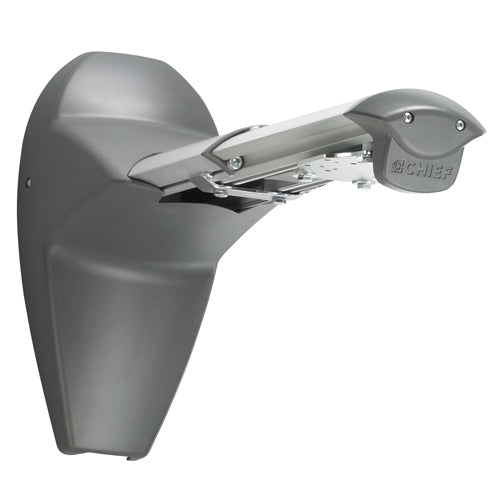

The WM110S provides ideal placement and alignment for short throw and ultra short throw projector mounting on a single stud.

• Compatible with the RPA, RPA Elite, RPA Mini and RPA Elite Mini Series projector mounts (must order mount separately)
• Also supports wall-mounted long-throw projectors

• Fast installation with innovative quick-connect system
• Industry-first micro height and leveling adjustment
• Extension from wall, 11.25-18.00" (285.75-457 mm)
• Precision image alignment with micro roll, pitch and yaw (using the RPA Elite mounts)
• Integrated cable management system conceals and protects cables for a clean finish
• Multiple levels of security, including All-Points locking hardware, and four projector mount keyed locking options (A/B/C/D)
• Compatible with the RPA, RPA Elite, RPA Mini and RPA Elite Mini Series projector mounts
• Includes short throw arm only, projector mount must be ordered separately
• Includes hardware for wood stud, steel stud and concrete wall construction
• Also supports long-throw projectors

• UL Listed

Specifications:
• Height: 14.2
• Width: 7.3
• Warranty: Not Applicable
• Color: Silver
• Weight Capacity: 50 lbs (22.7 kg)

Resource:
• Data Sheet PDF
• Data Sheet PDF
• Data Sheet PDF
• Data Sheet PDF
• Data CAD Drawing
