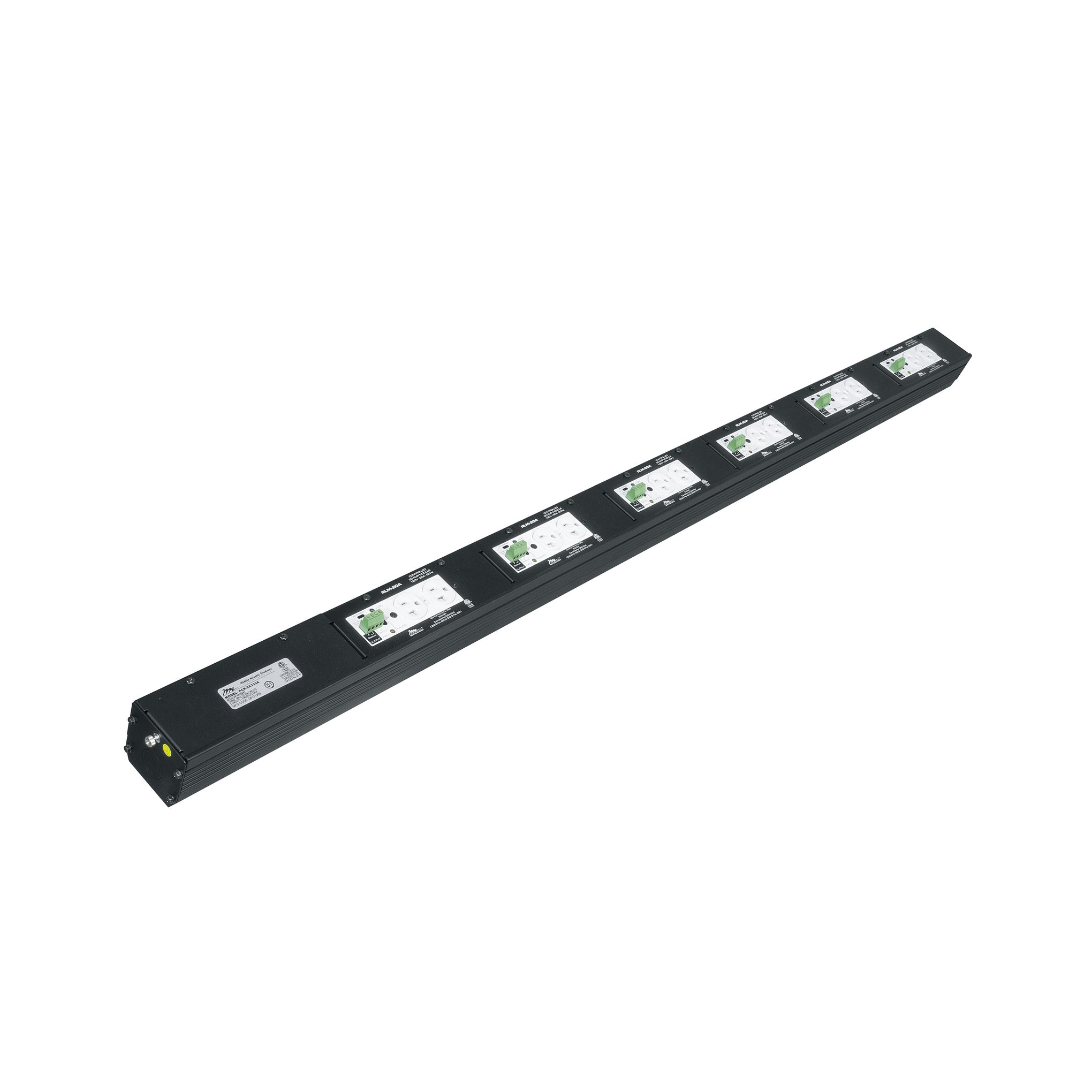

Designed to save installation time, the factory-assembled MPR raceways utilize six power modules. These twelve outlet vertical strips connect to one or two 20 Amp circuits* and feed six 20 Amp duplexes (12 outlets). Each duplex can be independently controlled with the USC-6R Universal Sequencing Controller, or with any other sequencing controller that provides a maintained switch closure output. The PCR Series pre-configured raceways are 56” long, terminate in an integral junction box, are manufactured using 18-gauge steel and feature a durable black powder coat finish.

• Preconfigured to save time
• Two circuits feed six 20A RLM modules for 12 total outlets
• J-box termination
• Each duplex can be individually controlled
• Finished in durable flat black powder coat

• ETL Listed

Specifications:
• Height: 56.03
• Width: 3.00
• Warranty: Not Applicable

Resource:
• Data Sheet PDF
