Description

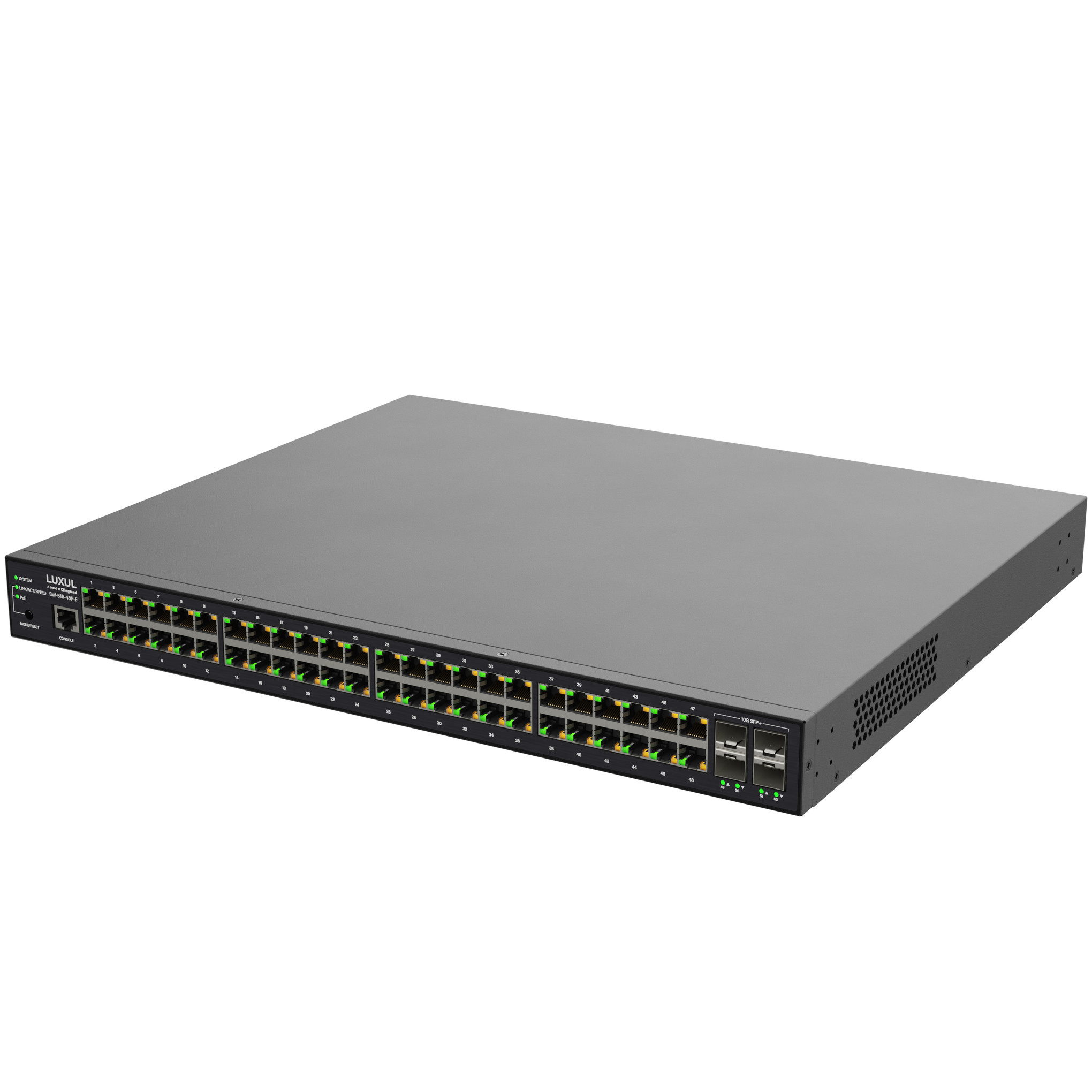

The SW-615-48P-F is a 48 port PoE+ front-facing single space rackmount 1Gb switch with 4 SFP+ 10Gb ports (aggregable up to 40Gbps) with a total PoE power budget of 740W. Each of the SFP+ ports can be used alone or aggregated together to allow 20 or 40Gbps throughput to another switch. This L2/L3 switch with 176Gbps switching capacity provides VLAN, QoS and other powerful management features. Up to 16 switches can be grouped in a single pane user-interface allowing easy and comprehensive administration. Variable speed fans for quiet operation. ProWatch Integrated for support of remote monitoring and management. ACL ingress and egress filtering. Watch Video: Meet our SW Series Managed PoE+ Switches
 | Category Cable Connectivity |
Features
- Refreshed, simplified user interface >PoE Self-Healing with auto-recovery and power scheduling
- Supports inbound and outbound (ingress and egress) ACL filtering
- Layer 2/Layer 3 capabilities (static routing included)
- Multicast/IGMP snooping and querying feature
- Per port unregistered flooding
- 802.1Q VLAN and QoS support including DCSP
- Dante and AES67 compatibility
- AV-over-IP compatible
- PoE Self-Healing with auto-recovery and power scheduling
- 48 PoE+ 1Gb Ports
- 740 Watt total PoE budget
- Front-facing ports
- Low noise, variable speed fans
- 4 SFP+ Ports
- Aggregable up to 40Gbps
- Rack Mountable
- ACL ingress and egress filtering
- Three Year Limited Warranty
This Package Includes:Â
- 48 PoE+ | 4 (10G) SFP+ Ports – 1Gb L2/L3 Managed Switch
- Power and Console Cables
- Rack Ears and Set of Four (4) Adhesive Feet
- Quick Install Guide & Regulatory Documentation
Certifications & Specifications
- FCC, RoHS, CB Report, CE, CE-EMC, CE-LVD, IC, RCM, TAA, VCCI, UKCA, NDAA 889
-
Specifications:
- Weight: 6.2
- Length: 17.4in
- Height: 1.75
- Width: 14.75
- Warranty: Not Applicable
