Description

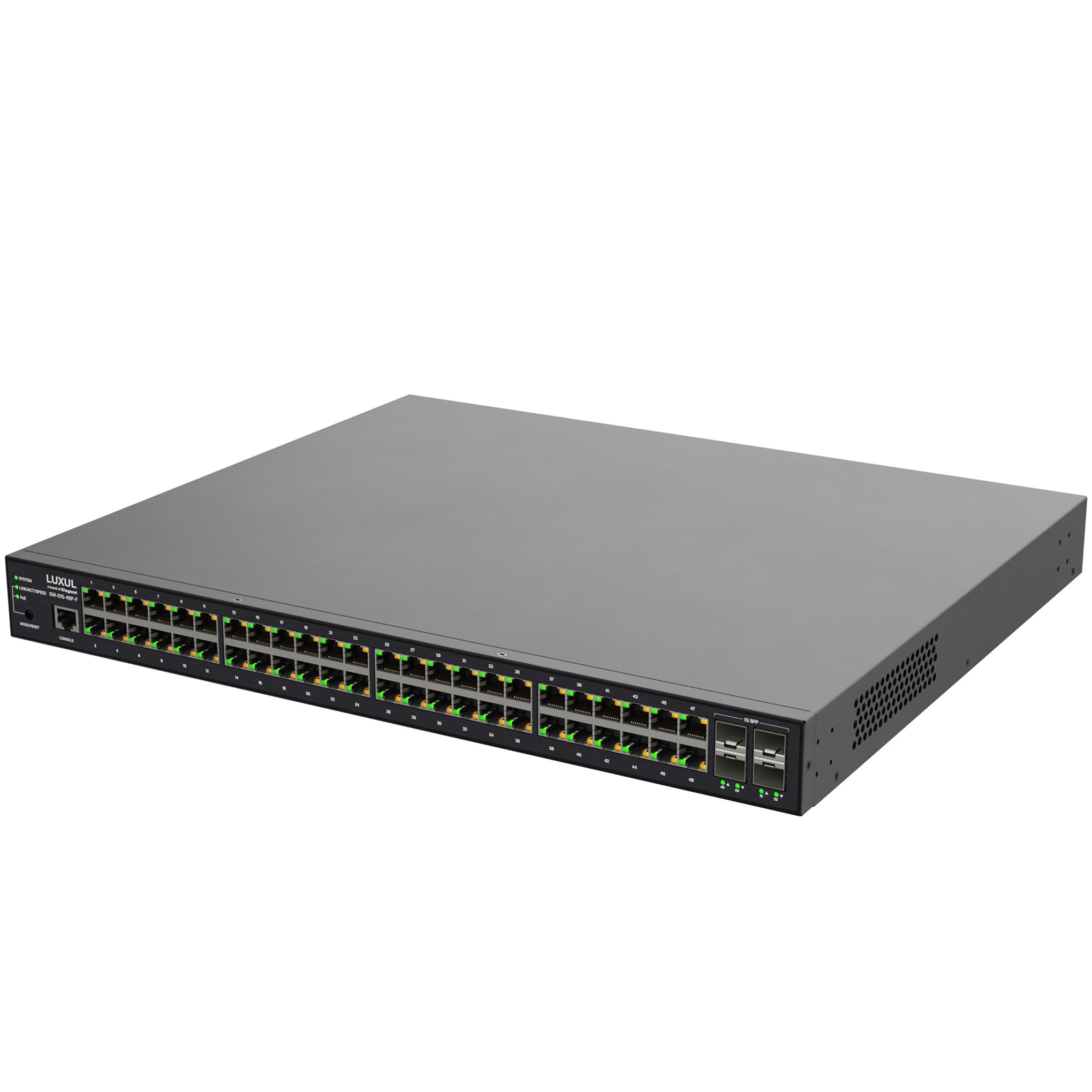

The SW-515-48P-F includes 48 1-Gigabit PoE+ Ethernet ports and four 1-Gigabit SFP expansion ports. Two or more SFP ports can be aggregated for a connection speed of up to 4 Gb. The 48 PoE+ ports deliver both gigabit data and power over a single cable to 802.11af/at-compliant devices, with a maximum of 30W per port. For separately powered devices, these ports deliver network connectivity only. The total power budget is 740W for all PoE+ ports combined. The advanced Layer 2/Layer 3 features a refreshed easy-to-use management interface to simplify configuration and make this switch ideal for use in multi-switch AV-over-IP environments. Setup of IGMP/Multicast on a per-port basis is easy, improving the setup and reliability of running audio and video over the network simultaneously. Watch Video: Meet our SW Series Managed PoE+ Switches
 | Category Cable Connectivity |
Features
- Refreshed, simplified user interface
- Supports inbound and outbound (ingress and egress) ACL filtering
- Layer 2/Layer 3 capabilities (static routing included)
- Multicast/IGMP snooping and querying feature
- Per port unregistered flooding
- 104Gbps switching capacity
- 802.1Q VLAN and QoS support including DCSP
- Dante and AES67 compatibility
- AV-over-IP compatible
- PoE Monitoring: auto-recovery and power scheduling
- 740W total PoE budget
- Standard 19-inch rack mount
- 2 All Ethernet RJ-45 ports are PoE+ powered (IEEE 802.3at)
- Dynamic PoE allocation
- Front-facing ports
- Low noise, variable speed fans
- Three Year Limited Warranty
This Package Includes:Â
- 48 PoE+ | 4 SFP Ports - 1 Gigabit L2/L3 Managed Switch
- Power Cord
- Rack Ears and Set of Four (4) Rubber Feet
- Quick Install Guide & Regulatory Documentation
Certifications & Specifications
- FCC, IC, CE, CE-EMC, CE-LVD, CB Report, RCM, VCCI, RoHS, UL, cUL, TAA, UKCA, NDAA 889
-
Specifications:
- Weight: 12.1
- Length: 17.4in
- Height: 1.75
- Width: 14.75
- Warranty: Not Applicable
