Description

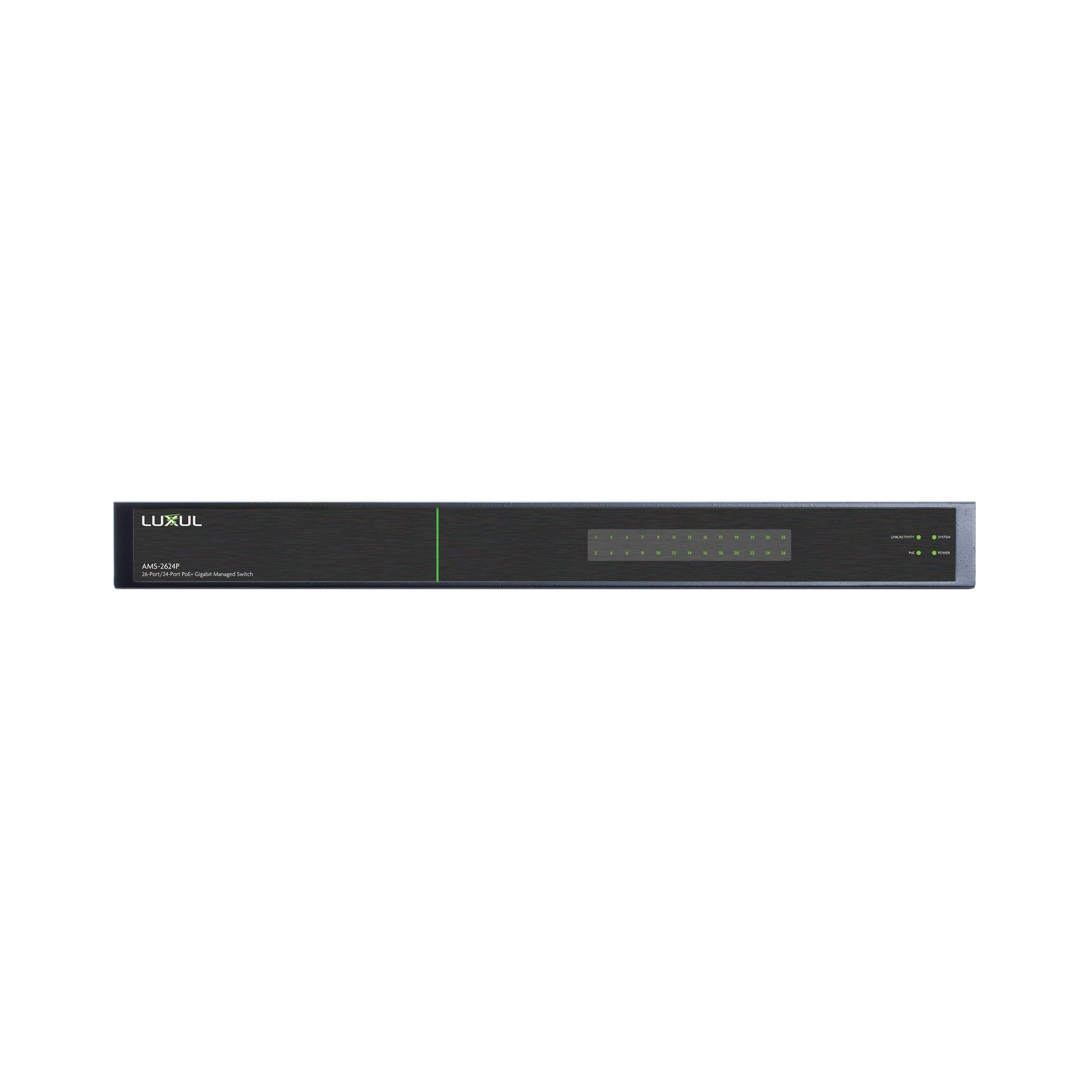

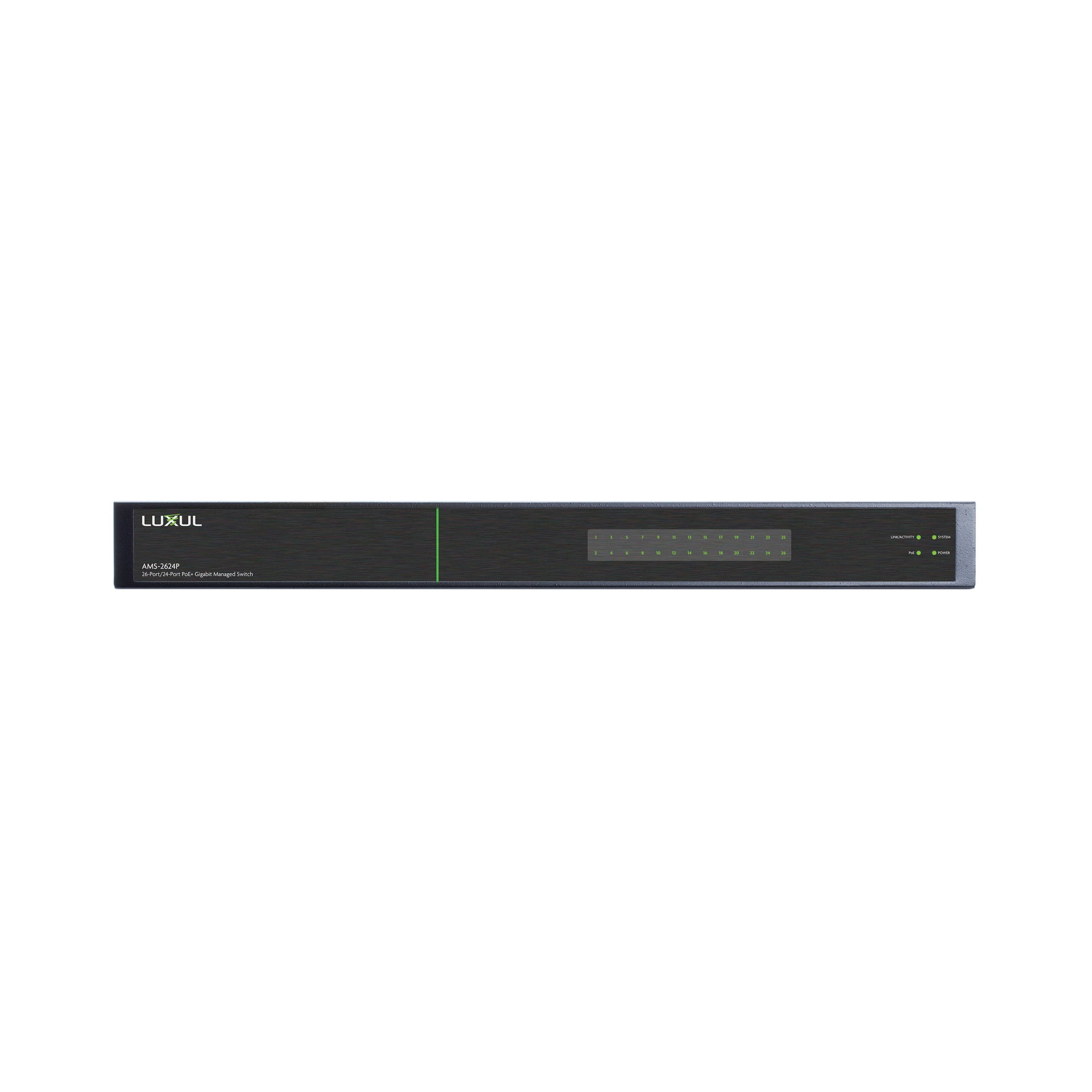

The Luxul AV-Series 26-port/24 PoE+ Gigabit Managed Switch (AMS-2624P) features rear panel ports and front facing LEDs (user selectable blue/green colors) for clean integration with AV rack systems. It is an excellent choice for expanding your network when using PoE-enabled devices such as VoIP, IP cameras and Wireless Access Points. The 26-port Gigabit switch includes 24 PoE+ ports, allowing you to use standard Ethernet cable to deliver both power and high speed data to 802.3af/at-compliant devices. It also features advanced management, and VLAN and security capabilities to provide benefit to your home or office network.
Â
 |
Category Cable Connectivity Get the Network Patch Cables you need from C2G. Explore Here |
Â
Features
- PoE Self-Healing with auto-recovery and power scheduling
- 24 Gigabit RJ45 Ports
- 2 Gigabit RJ-45 uplink ports with 2 shared SFP ports (combo ports)
- 24 Ports Support 802.3af/at PoE+ with 250 Watt Power Budget
- 52Gbps Switching Capacity (Non-Blocking and Full-Duplex)
- 802.1Q VLAN (with Trunking) and QoS Support
- Port Based Authentication
- Intuitive Management
- User Selectable Green or Blue Front facing LEDs
- Variable Speed Fans for Quiet Operation
- Standard 19" Rack-Mount
- The RJ45 port surge protection is tested to: ENG1000-4-5 (for RJ45 port, surge 6KV)
This Package Includes:Â
- 26-Port Gigabit Managed Switch
- Rack Mount Kit
- Rubber Feet
- Power Cord
- Quick Install Guide
Certifications & Specifications
Certifications:
- FCC, ROHS, CB Report, CE, CE-EMC, CE-LVD, IC, RCM, TAA, UKCA, NDAA 889
-
Specifications:
- Weight: 9
- Length: 17.3
- Height: 1.75
- Width: 8.25
- Warranty: Not Applicable
