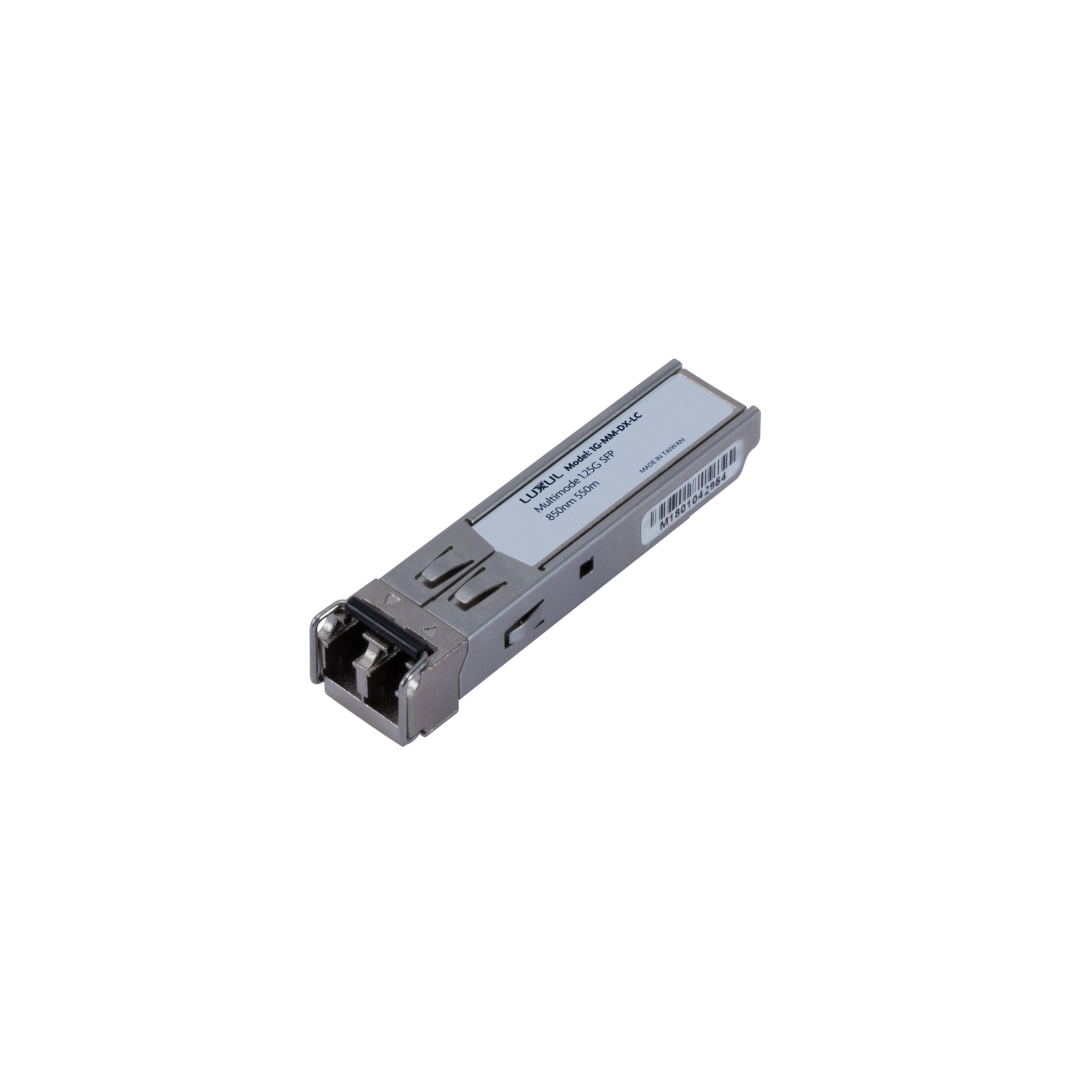

The 1G-MM-DX-LC 1 Gb SFP Module is designed for use with Luxul Ethernet AV switches that have an SFP port. This SFP module operates at 850nm wavelength in Duplex (DX) mode to provide 1 Gigabit connectivity at distances up to 550 meters when using OM2 Multi-Mode (MM) fiber optic cable terminated with a Duplex LC connector. OM1 & OM3 fibers can also be used. The module can use used to interconnect into the SFP slot of any compatible Luxul AV switch.

Features:

• 1 Gigabit bi-directional performance
• Multi-mode Mini GBIC module operates at 850nm
• Duplex LC connector
• Maximum transmission distance of 550 meters
• Compatible with OM1, OM2, & OM3 fiber
• Compliant with IEEE 802.3z standards
• Hot pluggable
• Three-year limited warranty

• CE, CE-EMC, FCC, IC, ROHS, TAA, UKCA

Specifications:
• Length: 3.09
• Height: 3.74
• Width: 5.61
• Warranty: Not Applicable

Resource:
• Data Sheet PDF
• Data Sheet PDF
• Data Sheet PDF
• Data Sheet PDF
