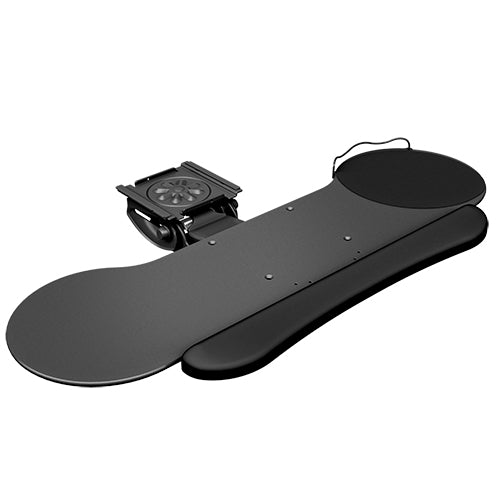

Optimized for applications requiring minimal track length and maximum retraction under the desktop, the KBD-UC-UC provides easy placement of the keyboard and mouse for optimal ergonomic support. The arm provides effortless height adjustment from 1.75" (44 mm) above to 4" (101 mm) below the work surface to meet the natural typing height of a user whether sitting or standing at the workspace.

Keyboard Arm:

• Designed for applications requiring minimal track length and maximum retraction under desktop
• Ideal for height-adjustable desks with cross-members as little as 12" (305 mm) back from front edge of work surface
• Patented secondary slide & unique arm design provide Ultra Compact footprint
• No knob, lever, or ratchet handle required to set height - simply lift to desired position and release
• Patented “No Knob / Gravity Lock" spring assisted height adjustment
• 5.75″ (146 mm) total height adjustment range: +1.75″ (44 mm) above, -4″ (102 mm)below the worksurface
• Rugged steel construction finished in a durable black powder coat
• Full retraction with 11″ (279 mm) track and ultra-compact tray
• Meets or exceeds current ANSI / BIFMA X5.5 industry standard
• All mounting hardware and instructions included

Keyboard Tray:

• 28″ wide x 6.75″ center depth (711 x 171 mm), including 8″ (203 mm) diameter mouse surfaces
• 1/4″ (6 mm) thin allows maximum knee clearance
• Integrated mousing surface with foam pad that easily switches from right to left
• Foam palm rest (removable) for maximum ergonomic comfort
• Sliding mouse catcher with cord manager
• Made in the USA

Specifications:
• Length: 17
• Height: 16
• Width: 30
• Warranty: Not Applicable
• Color: Black_Grey with Black Accents

Resource:
• Data CAD Drawing
• Data Sheet PDF
• Data Sheet PDF
