Professional audio conferencing solution for medium to large size rooms.

Key Features:

• One EasyUSB MicPOD I/O Interface
• Four white CeilingMICs with integrated echo canceling

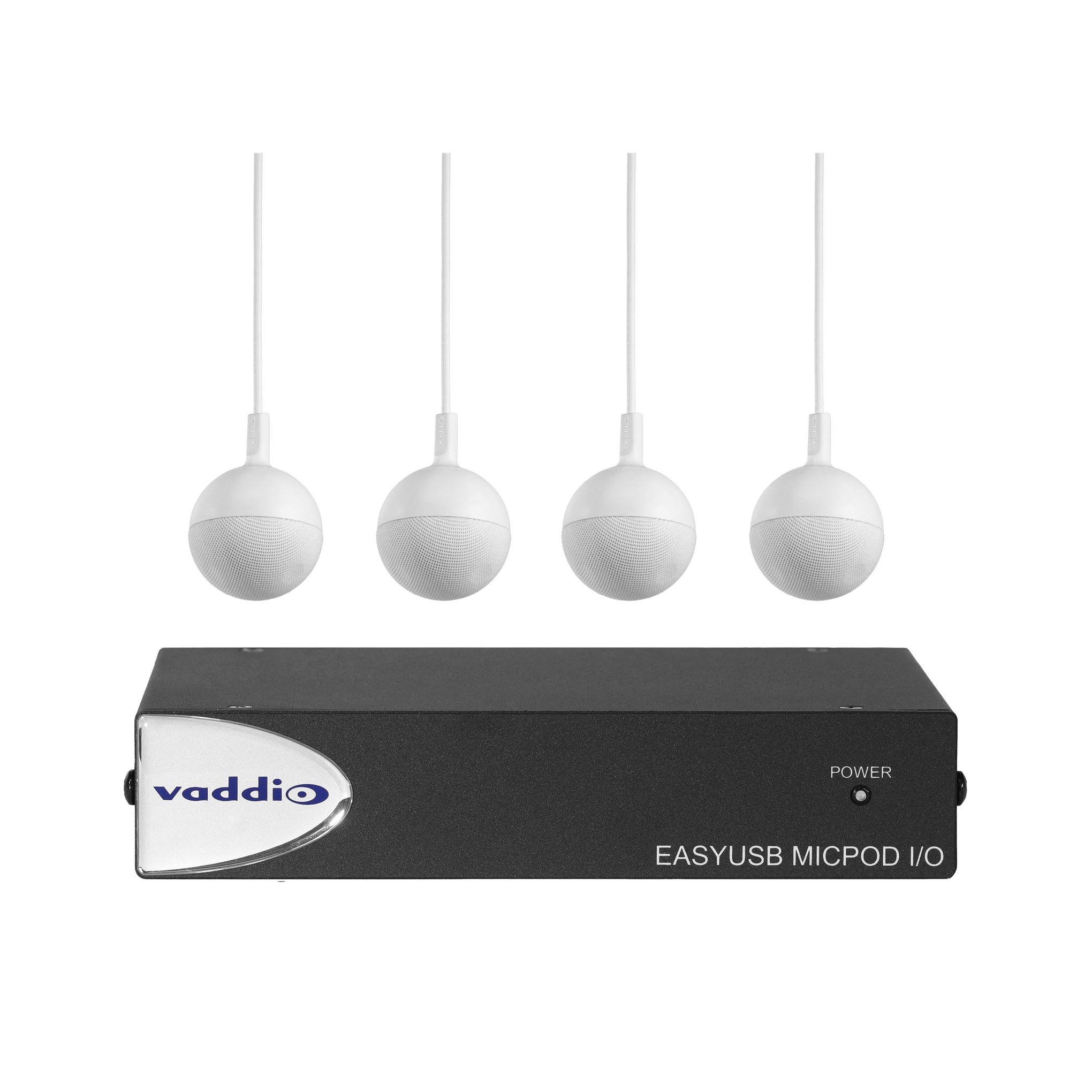

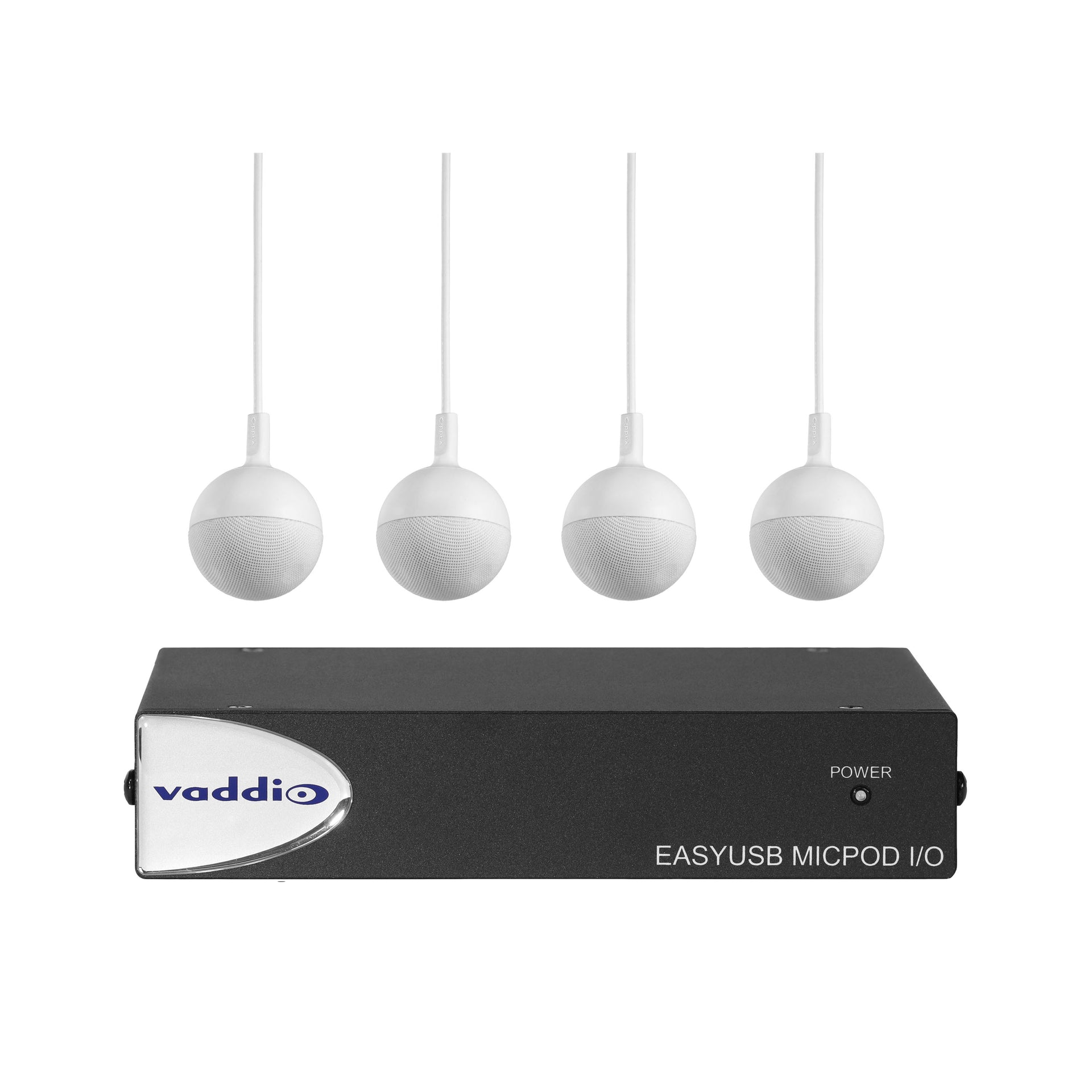

Includes one EasyUSB MicPOD IO Interface and four CeilingMICs.

The EasyUSB MicPOD I/O interface is based on Vaddio's EasyMIC technology, a simple and less expensive approach to adding live audio conferencing to room designs. As an interface between the CeilingMIC microphones and any professional audio mixer, internal DSP and echo cancellation can now be integrated into any manufacturer’s audio mixing system.

Each CeilingMIC is equipped with an array of three electric condenser microphones positioned to form a 360-degree pickup pattern. This unique technology is based on the microphone’s ability to actively manage the room’s live audio for gain, gating and echo cancellation. Once detected, the microphone will adjust and mix down to a single output. Because the intelligence is inside the microphone, any mixer can now be used in a live collaboration application for audio conferencing and achieve outstanding results.

Originally part of the EasyUSB family of products, the EasyUSB MicPOD I/O interface converts Vaddio EasyMIC technology to a balanced line out for easy integration with your room DSP.

This Package Includes:

• EasyUSB MicPOD I/O
• 18V power supply with AC cord set(s)
• 4 qty CeilingMIC microphones (white)
• 4 qty silicone split strain relief boots (white)
• 4 qty 3' (0.9m) cat-5 cable (white)
• 4 qty CeilingMIC interface boxes
• 4 qty cable clamp grommets
• 8 qty ceiling trim ring plates (black or white) with mounting screws
• 4 qty ceiling tile braces
• 4 qty rubber feet for bottom of EasyUSB MicPOD I/O unit if not rack-mounted
• 5 qty 3-position phoenix-style connector
• Quick-Start Card
• CeilingMIC Installation Guide

• CE, FCC, TAA

Specifications:
• Weight: 1.45
• Warranty: 3 Years
• Color: White
