Four-Channel microphone interface with AEC Reference Input and four balanced line outputs. (Previous name: TRIO MicPOD I/O)

Key Features:

• Interface Device between EasyMICs and any professional conferencing mixer
• Compatible with Vaddio TableMIC and CeilingMIC microphones
• Connect up to four EasyMICs
• Allows for four microphones all with independent echo cancellation and internal DSP

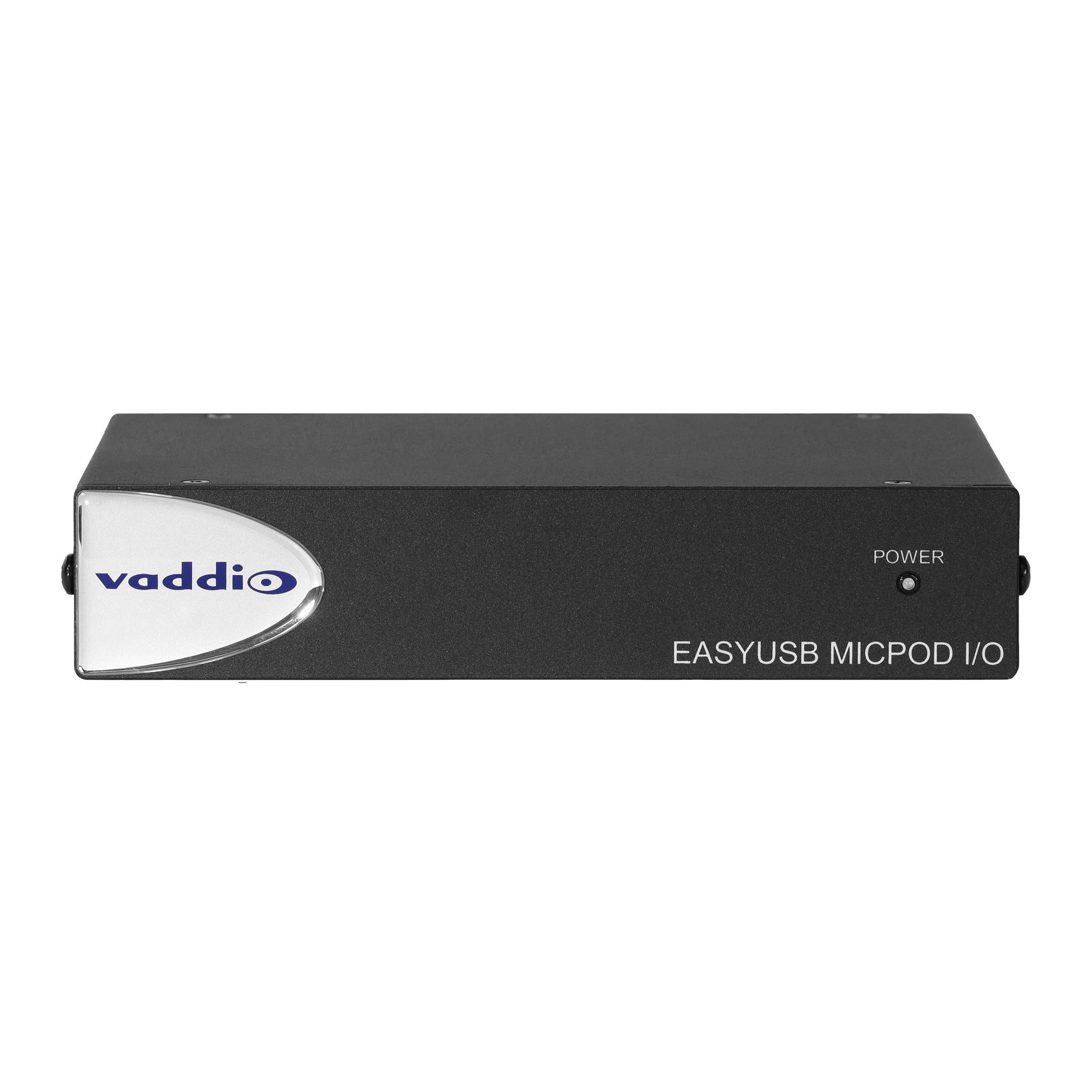

The EasyUSB MicPOD I/O interface is based on Vaddio’s™ EasyMIC technology, a simple and less expensive approach to adding live audio conferencing to room designs. As an interface between the EasyMIC microphones and any professional audio mixer, internal DSP and echo cancellation can now be integrated into any manufacturer’s audio mixing system.

Each EasyMIC is equipped with an array of three electric condenser microphones positioned to form a 360-degree pickup pattern. This unique technology is based on the microphone’s ability to actively manage the room’s live audio for gain, gating and echo cancellation. Once detected, the microphone will adjust and mix down to a single output. Because the intelligence is inside the microphone, any mixer can now be used in a live collaboration application for audio conferencing and achieve outstanding results.

Originally part of the EasyUSB family of products, the EasyUSB MicPOD I/O interface converts Vaddio EasyMIC technology to a balanced line out for easy integration with your room DSP.

This Package Includes:

• EasyUSB MicPOD I/O Interface
• Quick-start card
• 18V, 2.75A Power Supply with AC cord set(s)
• 5 qty 3-position phoenix-style connectors
• 4 qty rubber feet for bottom of EasyUSB MicPOD I/O unit if not rack-mounted

• CE, FCC, TAA

Specifications:
• Weight: 1.45
• Warranty: 3 Years
• Color: Black

Resource:
• Data Sheet PDF
• Data Sheet PDF
• Data Sheet PDF
