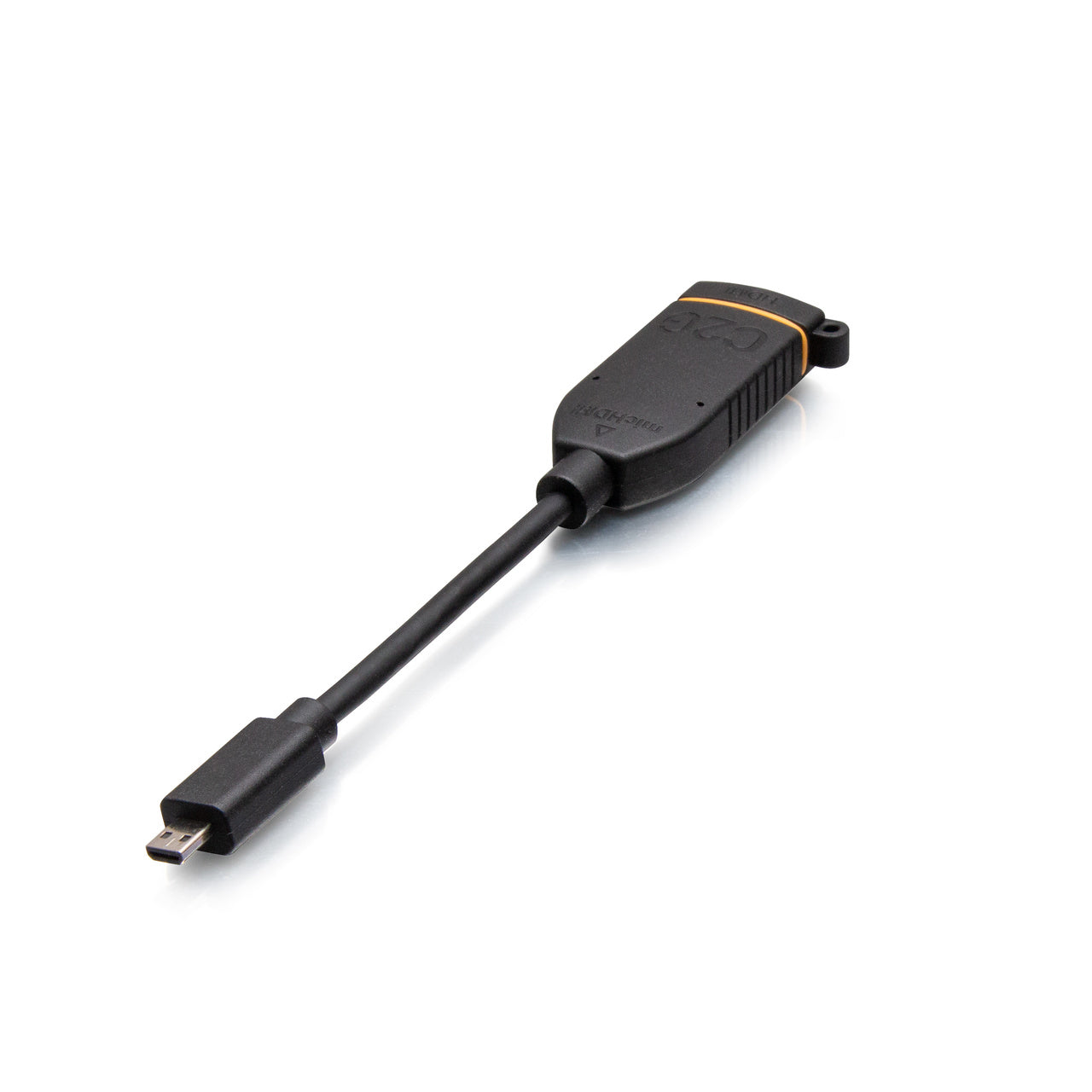

This Micro HDMI to HDMI Dongle Adapter is a great addition to your existing HDMI Adapter Ring — an easy and convenient solution for connecting a micro HDMI port to an HDMI enabled device in your home or office. This adapter carries a digital video signal, supporting up to a 4K resolution and meets the requirements for high performance applications.

Avoid frustration by simply plugging the adapter into your computer, then attach it to the existing HDMI cable from your monitor or projector. The portable, compact design also makes it easy to carry in a laptop bag when traveling or on the go.

Easily attach this Micro HDMI Dongle Adapter to any of the following HDMI Adapter Rings.

Additional Technical Specifications

SIGNAL SPECIFICATIONS

• Testing: 100% Functional Test at 4K/30Hz

ELECTRICAL SPECIFICATIONS

• Conductor Resistance: at 20°C, 32AWG: 588Ω/KM; 34AWG: 959Ω/KM
• Voltage Rating: 30V
• Insulation Resistance: 10 Ω/KM min at 20°C DC 500V
• Dielectric Strength: AC 500V/1 Minute No Breakdown

PHYSICAL SPECIFICATIONS

• Temperature Rating: 80°C
• Minimum Bend Radius: 25mm (about 0.98 in)
• Cable Jacket Rating: VW-1
• Tensile Strength: Unaged: 1500psi; Aged: 70% min.

PHYSICAL CHARACTERISTICS

• Connector 1: HDMI Female; Solder Type, Contacts: Brass, Gold Flash, Housing: LCP, Black, Shell: Nickel Plated
• Connector 2: micro HDMI; Solder Type, Contacts: Brass, Gold Flash, Housing: LCP, Black, Shell: Nickel Plated
• Adapter Hood: Molded Black (Pantone/#Black 6C) PVC
• Color Band: Orange; 12 x 1.5mm (about 0.06 in)
• Jacket Material: PVC
• Jacket Thickness: 0.51mm (about 0.02 in) AVG
• Product is CE Marked and Conforms to 2011/65/EU ROHS 2

• REACH, Prop 65, TSCA, NDAA 889

Specifications:
• Length: 0
• Height: 0
• Width: 6.5
• Warranty: Lifetime
• Color: Black
• Connector 1: HDMI Micro Male
• Connector 2: HDMI Female
