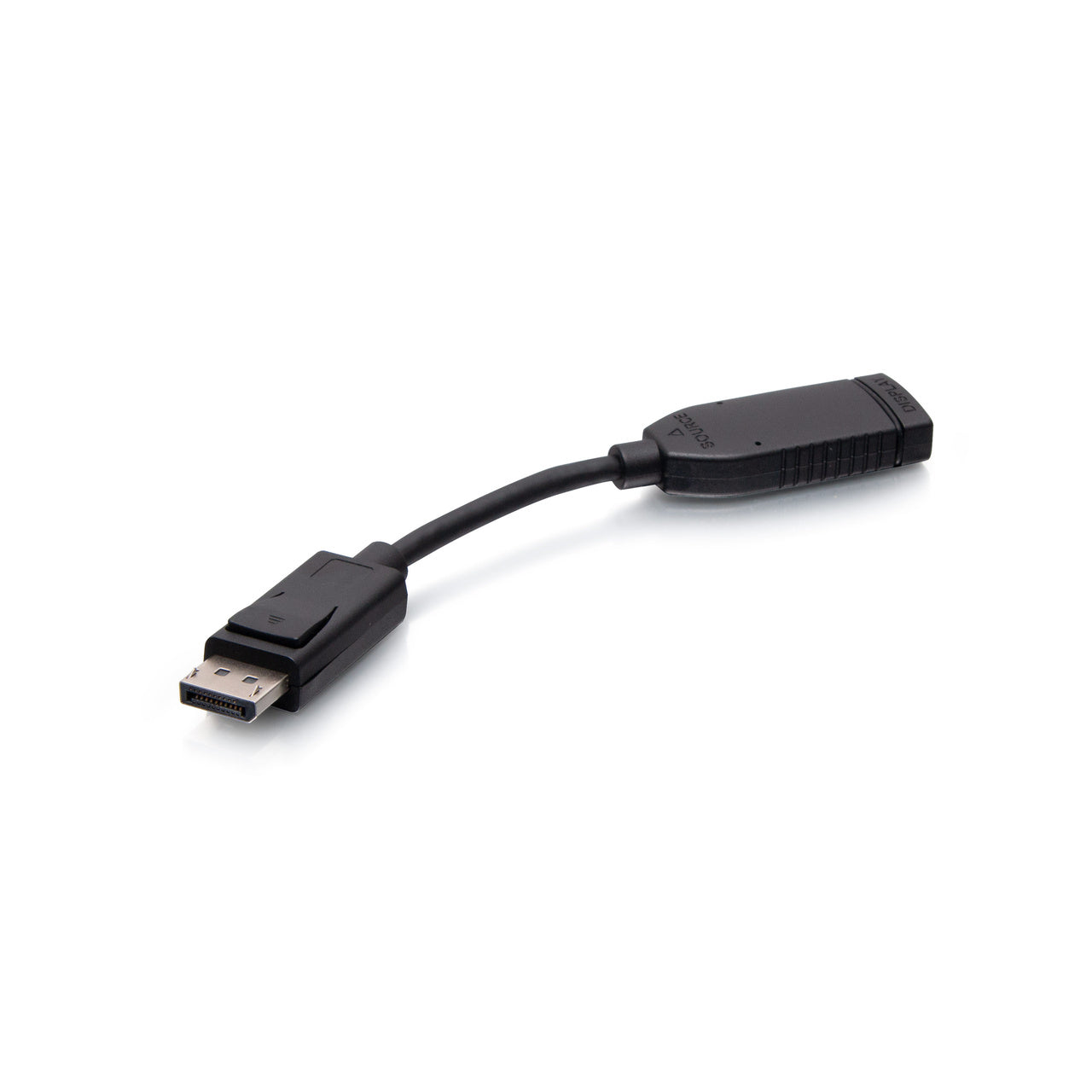

This DisplayPort to HDMI Adapter Converter is an easy and convenient solution for connecting an HDMI monitor to a DisplayPort computer in your home or office. This adapter converter carries a digital video signal, supports up to a 4K resolution and meets the requirements of high performance applications.

Avoid frustration by simply plugging the adapter into your computer, then attach to the existing HDMI cable from your monitor or projector. The portable, compact design also makes it easy to carry in a laptop bag when traveling or on the go.

This adapter converter automatically converts the digital DisplayPort signal to HDMI, supporting full HD up to a 4K resolution at 30Hz.

Additional Technical Specifications

SIGNAL SPECIFICATIONS

• Testing: 100% Functional Test at 4K/30Hz/4:4:4 Resolution with Standard AV Test Equipment

ELECTRICAL SPECIFICATIONS

• DisplayPort to HDMI Adapter Power Consumption: 396mW (120mA/3.3V)

PHYSICAL SPECIFICATIONS

• Operating Temperature: 0°C - 40°C (0% - 90%RH)
• Storage Temperature: -10°C - 60°C (0% - 90%RH)

PHYSICAL CHARACTERISTICS

• HDMI 19pin Female Connector: Solder Type, Contacts: Brass, Gold Flash, Housing: LCP, Black, Shell: Nickel Plated
• DisplayPort Male Connector: Solder Type, Contacts: Brass, Gold Flash, Housing: LCP Black, Shell: Nickel Plated
• Adapter Hood: Molded Black (Pantone/#Black 6C) PVC
• Color Band: Black (Pantone#Black 6C) 12 x 1.5mm
• 360º Solder to Connector Shell
• Product is CE Marked and Conforms to 2011/65/EU ROHS 2

• REACH, ROHS, Prop 65, TSCA, NDAA 889

Specifications:
• Length: 0
• Height: 0
• Width: 7.1
• Warranty: 5 Years
• Color: Black
• Connector 1: HDMI Female
• Connector 2: DisplayPort Male
